Jieda LGZ1250 Model Vertical Type Automatic Centrifuge

Product Description

Jieda LGZ1250 Model Vertical Type Automatic Centrifuge Introduction of LGZ1250 Model Automatic Centrifuge:
LGZ1250 centrifuges have a perfect automatic performance and a large processing capacity. In accordance with users' demand, procedures such as feeding, separating, washing, dehydrating and discharging can all be automatically finished followed by remote control. It's suitable for solid-liquid separation of fibroid products as well as suspension which contains fine grains and medium size grains solid.
Main Features of LGZ1250 Model Automatic Centrifuge:
1. Automatic operation, continuous operation
2. Excellent dehydrating performance
3. Low power consumption, high handling capacity
4. Small machine with compact design
5. Stable running even when the flow changes
6. Suits for various kinds of materials
Special Allocation of LGZ1250 Model Automatic Centrifuge:
1. Cleaning and spraying system
2. Nitrogen protection system
3. RF admittance material process control
4. PLC program control
5. Hydraulic action system
6. Gas auxiliary scraper
7. No basic form(equipped with vibration isolation chassis +vibration damper).
8. The corresponding stainless steel(SUS304,321,316L,or titanium) is adopted according to anticorrosive requirements for users' materials to be separated.
Standard Manufacturing Form of LGZ1250 Model Automatic Centrifuge:
1.Structure: The housing is equipped with the feeding pipe, washing pipe, sight glass, exhaust port, and lighting hole. The closed structure, bowl, housing and cover are made of stainless steel SUS304. The machine base is made of castings. The surface is coated with stainless steel. The interior and exterior surfaces of bowl and housing, and the surface of exposed parts in the machine are all subjected to polishing treatment.
2.All fasteners are made of stainless steel.
3.PLC control is adopted.
4.Electromechanical material process control.
5.Driving and braking: ordinary motor (or explosion-proof motor) + frequency converter + dynamic braking.
6.Pneumatic system or hydraulic system.
7.Foundation-free type (balancing block + imported high-precision liquid damping agent type vibration isolator).
Main Technical Parameters of LGZ1250 Model Automatic Centrifuge:

Model	Drum				Separation Factor(ω²r/g)	Motor Power(KW)	Cover Height(mm)	Machine Weight(kg)	Dimensions(mm)
	Diameter(mm)	Working Volume(L)	Loading Limit(kg)	Speed(R/Min)
LGZ-800	800	100	135	1200/1500	645/1008	7.5/11	2130	2500	1800*1300*1880
LGZ-1000	1000	175	235	1000/1200	560/806	11/15	2500	3500	2100*1430*2150
LGZ-1250	1250	400	530	1000/1200	700/1008	22/30	3000	4500	2300*1700*2350
LGZ-1250A	1250	505	650	1000	700	22	3120	5000	2300*1700*2700
LGZ-1500	1500	625	935	880	645	37	3650	7800	2800*2050*2820
LGZ-1600	1600	790	1050	850	647	37	3785	8500	2900*2160*2820

Drawings of LGZ1250 Model Automatic Centrifuge:
1. Scraper cylinder
2. Cover
3. Shell
4. Open oil cylinder
5. Drum
6. Bearing pedestal
7. Motor
8. Frame
9. Shock absorber
10. Manhole
11. Washing pipe
12. Feeding pipeline
13. Rotary feeder
14. Material level detector
15. Explosion-proof light
16. Water outlet pipe

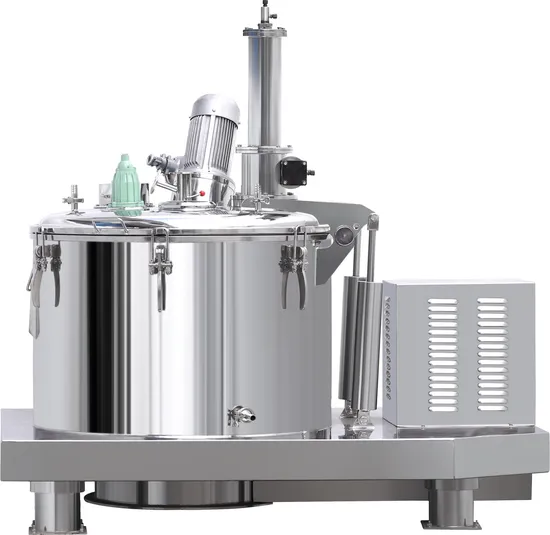

Photo of LGZ1250 Model Automatic Centrifuge:
