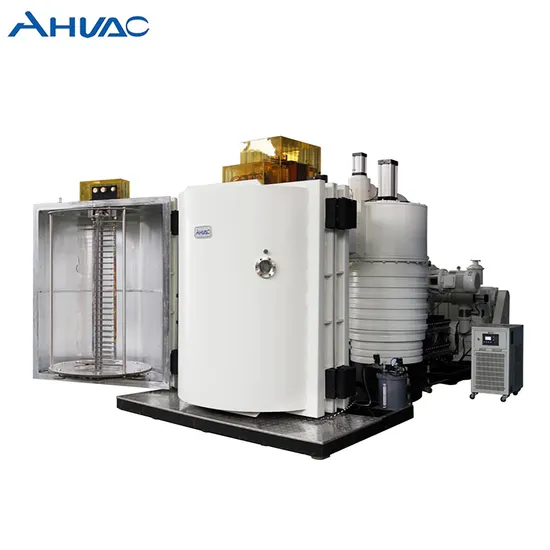

Plastic Products Evaporation Vacuum Coating Machine

Product Description

Product Description
The pre-vacuum unit automatically performs continuous low-vacuum exhaust, followed by glow discharge to pre-treat the product to enhance surface cleanliness, followed by high vacuum exhaust (X10-3) at high power Flashing under the action of evaporation power, and then ionizing HMDSO under the action of DC step-up transformer, obtaining SiOx/NOS protective layer, making the aluminum ring antioxidation, corrosion resistance, friction resistance, high-temperature resistance and high reflectivity The super-hard protective film improves the nitriding resistance of the aluminum layer and maintains the high reflectivity of the aluminum layer for a long time.
Compared with the intermediate-frequency power supply device, the DC boost requires a longer glow discharge and protective film ionization time, but the protective film of the depth piece will work better.
In addition, the comfortable human-machine interface and data transmission system enhance the management efficiency of the device.

Product Parameters

Model	RM-1500	RM -1600/1800
Furnace size	Φ1500 mm *H1980 mm	Φ1600(1800) mm *H1980mm
Furnace	Vertical double door	Vertical double door
Revolving design	6 x Ø 530(540) 8 x Ø 420(430)	6 x Ø 530(540) 8 x Ø 420(430)
Coating area	15.2 m²(coating height 1.6 m)	15.2 m²(coating height 1.63 m)
Estimated furnace time	10-12 min	10-14 min
Machine footprint	6800mm×70000mm ×3100mm	7000 mm×7000mm ×3100mm
Control System	Touch screen (or industrial computer) + PLC, Real-time monitoring of big data	Touch screen (or industrial computer) + PLC, Real-time monitoring of big data
Coating Technology	Glow discharge Evaporated aluminum plating Plasma chemical vapor deposition SiOx/NOS protective layer IF (US AE) Cryogenic -140 ° C
Note: Our company can be customized according to customer's products and special process requirements

Advantage
Over 3000 plants installed worldwide Quick cycle times High production capability with low energy consumption More uptime due to ease of loading/unloading and low maintenance High productivity with only a single operator Steel process chambers, built to last Eco-friendly Space-saving design PVD option available on all plants 1-year component warranty and 25 years minimum guaranteed working life Complete global network of consulting, engineering, and renowned after sales service Application
Automotive lighting reflectors, front lights, rear lights, turn signals, license plate lights, etc.The front lights include: tungsten halogen lamp, xenon lamp, low beam lamp, high beam lamp, front turn signal, front position lamp (also called width lamp, indicating the position of the vehicle), front fog lamp
Rear lights include rear position lights, reversing lights, brake lights, rear fog lights, rear turn signals

Company Profile
Laisi Vacuum Technology (Changzhou) Co., Ltd.. is a high-tech enterprise specialized in R& D, production, and marketing of vacuum application equipments. Committed to providing customers with suitable vacuum application solutions.The company focuses on the development of a continuous magnetron sputtering coating production line, flexible and thin film winding coating technology, optical coating technology, and ion plating technology, moreover, including unbalanced magnetron, medium frequency magnetron sputtering, arc evaporation source, ion source assisted coating, electron beam evaporation which can be combined of various technical functions in one equipment. The company combines cutting-edge equipment technology with integrated processes and application expertise for each industry′s specific needs, providing customized process technology and solutions in full accordance with industry technology and production needs.After years of vacuum application technology accumulation, the equipment design and processing technology is improving. The customized vacuum application solution provides powerful technical support for the development of well-known coating manufacturers in domestic and oversea. The vacuum equipment, semiconductor equipment and electronics are developed and produced. Production equipment, optoelectronic equipment, and power battery equipment have been highly praised by customers.Industry application: Widely used in precision optics, solar photovoltaic / optoelectronic, low-emission coated glass, flat panel display, tool and die, ship, car battery, automotive lighting, automotive interior and exterior decoration, smartphones, hardware watches, plastics, semiconductors and other industries.Quality service: The company has a professional after-sales service team, 7 × 18 hours customer service, and rapid response.
Packaging & Shipping
FAQ
Q: Are you a manufacture or a trading company ?

A: We are a professional manufacturer, making many kinds of VACUUM coating machines and related accessories.
Our company is located in Jiangsu, China, Which has over a hundred staff, including R&D team, production team, marketing team and after- sale service team.
Q: What kinds of products and colors can this machine be coated ?
A: Metal product (stainless steel, carbon steel, hard alloy, aluminum etc. ), like sanitary appliance, tableware, scissor, stair rail, faucet, watch parts, tool parts, wheel hub etc. plastic product (acrylic sheet, bottle cap, shoe heel, bracelet, lampshade etc. ) ceramic product (ceramic tile, teapot, teacup, plate etc.) glass product (cup, bangle, mirror etc.) Colors: gold, silver, rose gold, blue, black, gray, brown, green, rose red, rainbow etc.
Q: What should I provide to get the machine configuration and quotation ?
A: 1:What is your products ? max.size ? material ?
2, How many products do you need to coating per day ?
3:What material do you to coating on your products? what colors ?
4: Any other requirements ? hardness ? thickness ?
Q: What is your lead time?
A: From 30days to 90days, depend on the machine size
