CNC Hydraulic Copper Aluminum Busbar Punching Machine
| US$10,000.00-30,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
EMAC-BP-6S/9S
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE
Condition
New
Weight
7600kg
Total Power
15.7kw
Processing Dimension
6000*200*15mm
Max Ounch Hole Size
32mm
High Pressure Electromagnetic Valve
Italy
Precision Ball Screw Cylinder
Taiwan Hiwin
Sensor
Schneider
Transport Package
Export Standard Free-Fumigation Wooden Case
Specification
Size: 7500*2980
Trademark
BEIENE
Origin
Qingdao, China
HS Code
8462
Production Capacity
200 Set/Sets Per Month
Product Description

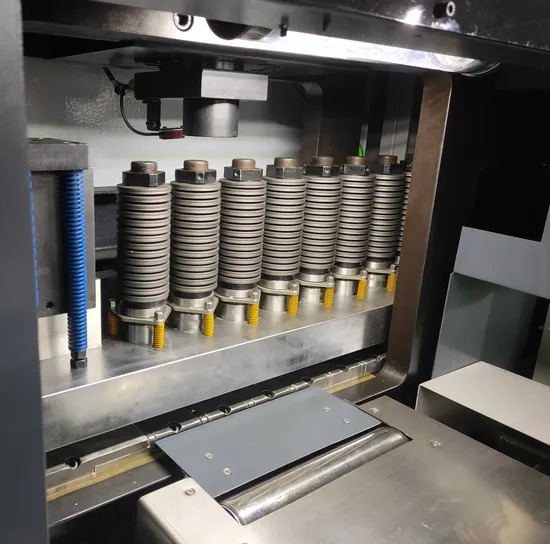

Product DescriptionDetailed photo
1. GJ3D software--This is our independent patent in busbar processing, which can realize 3D automatic programming and dynamic simulation.
2. Double clamps--Comparing other single clamp, double clamps can make processing more accurate and stable.
3. Hydraulic system-- Piston pump (rather than gear pump) has large drive power and realize high efficiency.
4. Main components--Imported, so the quality and service life can be guaranteed.
Product feature
| Control Section | ||||||
| Serial No. | Name | Instruction | ||||
| 1 | Programmable Control | OMRON/Schneider | ||||
| 2 | Sensor | Schneider | ||||
| 3 | Control Button | OMRON | ||||
| 4 | Touch Screen | OMRON | ||||
| 5 | Computer | Lenovo | ||||
| 6 | AC Contactors | ABB | ||||
| 7 | Circuit Breaker | ABB | ||||
| 8 | Servo Motors | YASKAWA(Japan) or Schneider | ||||
| 9 | Servo Drivers | YASKAWA(Japan) or Schneider | ||||
| 10 | Control software and Three-dimensional computer-aided design | Gaoji Busbar Processing System(GJ3D) | ||||
| Transmission System | ||||||
| Serial No. | Name | Illustration | ||||
| 1 | Precision Linear Guide Rail | Taiwan HIWIN | ||||
| 2 | Precision Ball Screw Cylinder | Taiwan HIWIN | ||||
| 3 | Bearing | Japan NSK | ||||
| Hydraulic Section | ||||||
| Serial No. | Name | Illustration | ||||
| 1 | High Pressure Electromagnetic valve | Italy | ||||
| 2 | High Pressure Tube | Germany Rivaflex | ||||
| 3 | High Pressure Oil Piston Pump | Rexroth | ||||
Technical parameter
| Name | Unit | Parameter | ||
| Punching Unit | kN | 500 | ||
| Shearing Unit | kN | 500 | ||
| Embossing Unit | kN | 500 | ||
| Max position Speed of X-axis | m/min | 48 | ||
| Max Stroke of X-axis | mm | 2000 | ||
| Max effective of Y-axis | mm | 530 | ||
| Max Stroke of Z-axis | mm | 350 | ||
| Stroke of striking Cylinder | mm | 45 | ||
| max hit speed | HPM | 100 | ||
| number of die station | Punching Die | set | 7 | |
| Shearing Die | set | 1 | ||
| Control Axis | 3 | |||
| Hole Pitch Accuracy | mm/m | ±0.20 | ||
| Max hole punch size | mm | Φ32( Thicknessof Copper bar <12mm) | ||
| Max Allowable sheet dimension(L*W*H) | mm | 6000×200×15 | ||
| Total power | kw | 15.7 | ||
| main machine dimension:L*W | mm | 7500X2980 | ||
| Total weight | kg | 7600 | ||
Finished product photo
Packing and shipping
Certifications
Thumb up by Customer
Our service
--- Inquiry will be replied within 2 hours.
--- All the way tracking service offered from placing order to delivery.
--- We can provide professional guide installation.
--- One year warranty and all round after sale service.
--- Customized design and flow chart are available for our clients.
--- Independent R&D team and strict & scientific management system.
