Tongshengjia Machinery Cotton Spinning Machine Manufacturers Fb1268 Industrial Drum Carder China Small Hand Wool Carding Machine

Product Description

Tongshengjia Machinery Cotton Spinning Machine Manufacturers FB1268 Industrial Drum Carder China Small Hand Wool Carding Machine
Product Overview
Wool Spinning Carding Machines Are Mainly Used In The Manufacturing Process Of Wool Textiles In The Textile Industry, Such As The Processing Of Animal Hair Wool, Rabbit Hair, Camel Hair, Etc.
The Main Function Of The Wool Carding Machine Is To Card The Original Wool Fibers Into Thin And Straight Fibers, And Remove Impurities And Short Fibers, Making Them More Suitable For Subsequent Processing And Spinning. The Wool Spinning Carding Machine Uses The Combing Action Of The Carding Pair And The Bobbin To Preliminarily Sort The Wool Fibers Before Spinning.

Working Principle
1. Pull Out The Wool Fibers And Unfold Them.
2. Remove Impurities And Short Fibers.
3. Use The Roller And Comb Teeth To Comb And Tidy The Fibers.
4. The Characteristics Of The Comb Teeth Can Be Adjusted To Parallelize The Fibers.
5. Collect Neatly Combed Wool Fibers.
Simply put, It Is The Process Of Carding And Sorting Fibers To Make The Wool Of The Raw Material Smoother And More Uniform And To Remove Impurities And Short Fibers To Provide Better Raw Materials For The Subsequent Spinning Process.
Product Main Features 1. Optimal Raw Material Utilization
The Litter Area Of The Licker-In Is Adjustable, And The Speed Of The Cover Plate Is Adjustable To Ensure Optimal Raw Material Utilization.
The Pneumatically Controlled Flip-Type Large Pressure Roller And Cotton Web Bundler Form An Integral Structure, Which Is Conducive To High-Speed Strip Dispensing.
2. Neat, Safe Wiring Craftsmanship
The Cotton Feeder, Cylinder, And Doffer All Adopt Motor Drive And Variable Frequency Speed Regulation To Facilitate Process Adjustment And Achieve Synchronous Control.
The Electrical Control Uses Computer Communication And Digital Synchronization Technology, And The Industrial Touch Screen Displays Various Parameters, Making The Machine Operation Stable And Reliable.
3. Increase Fiber Uniformity
By Combing And Sorting The Fibers, The Wool Carding Machine Can Make The Fibers Smoother And More Uniform, Reduce The Differences Between Fibers, And Improve The Uniformity Of The Fibers.
Wool Spinning Carding Machine Can Remove Impurities, Short Fibers, And Knots Through The Process Of Carding And Tidying Fibers, Improving Fiber Quality And Spinning Effect.
Product Details

Product Parameters

Working Width(Width Of Cylinder)	1020 Mm	1280 Mm
Suitable Fiber Lengths And Varieties	22-102 Mm
	(Pure Cotton, Chemical Fiber, And Other Spinnable Raw Materials)
Cotton Feeding Weight	400-1300 G/M
Sliver Weight	3-7 G/M	3.5-10 G/M
Max Speed	320 M/Min
	(Speed Of Can Coiler Lump Roll)
Max Output	134 Kg/H	190 Kg/H
Form Of Matched Can Coiler	Rotary Or Linear Automatic Can Changing
Coiler Can Specification	ф600*900 Mm;ф1000*1200 Mm
Continuous Dust Extraction Capacity	4000 M3/H
Outlet Static Pressure	-850 To -1000(Pa)
Total Installed Power	24.64 Kw
Weight Of Machine	11000 Kg
Overall Size(L*W*H)	11000*2800*3710 Mm

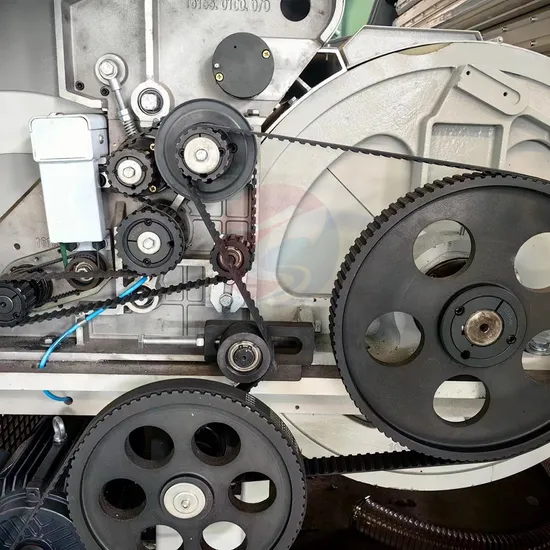

Detailed Photos
Company Profile
Our Advantage
-Quality First
It Adopts Precision Casting Body And Automatic Rust Removal Accessories. All Products Are Strictly Tested Before Leaving The Factory. Quality Is The First Principle.
-Global Sales And Service
Through Unremitting Efforts, Our Products Have Been Exported To More Than 50 Countries, And We Are Able To Provide Installation And Services In A Timely Manner
-R & D Department
We Have An R&D Department Including More Than 100 Engineers. We Continuously Develop New Products According To Market Needs. Customer Satisfaction Is Our Purpose.
-Innovation And One-Stop Service
We Continue To Innovate And Provide Customers With One-Stop Service. Our Products Are A Good Helper For Marketing.
FAQ
(1) Q: How's The After-Sale Service?
A: We Offer Engineers Available To Service Overseas Under the merchandiser's Supervision And Translation.
(2) Q: Are You Available For On-The-Spot Invitation?
A: We Do Welcome Our New And Old Friends Come Here To Have A Visit. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd Like To.
(3) Q: Is The Price Offered Changeable?
A: We Offer Reasonable Price For Every Client, And The Price Is Changeable According To Purchasing Amount.
(4) Q: How About The Quality?
A: The Main Subassembly And Raw Materials Are All Supplied By Large Companies. Key Parts Are Research And Developed By Our Own Staff. Professional Assembly Line Work And Strict Quality Test System Can Ensure Your High-Quality Requirement.
(5) Q: Are You A Manufacturer Or Trade Company?
A: We Are A Professional Manufacturer Holding Our Own International Trade Department, For That We Can Better Understand Customer'S Needs And Offer A Reasonable Price.
(6) Q: Product /Quality Guarantee And After-Sale Service?
A: 1-Year Warranty For The International Standard. We Are Work Online 24 Hours. If You Have Any Questions About Our Machine You Can Contact Us.
(8) Q: One-Stop Service:
A: We Have an R&D Department Including More Than 100 Engineers who are Improving And Enlarging Our Supply Range.
(9) Q: Certification?
A: HURUI Is An ISO9001 Company. The Products Are Designed To Meet The Technical Standards Of CE. All The Products Are Certified By The Industry Administration Authority. HURUI Will Continue To Strive To Be A Stronger Leader In The Global Market Of Cotton Machinery And Spinning Machinery. Sh, Chinese
