Steel Tube Production Line

Product Description

Introduction:
HUAYE is a high and new technology enterprise specialized in design, development and manufacture of various pipe mill.
Including spiral welded pipe mill, ERW pipe mill, end facing and beveling machine, hydrostatic tester, pipe finishing section equipment, high precision slitting &cut to length line, pipe expanding machine, pipe straightening machine and some other pipe machines.
Our pipe mill has been proven high efficiency, low maintenance and energy-saving during 30 years of practice. And we can supply one package service, from design, manufacture, installation, commissioning, guiding etc.).

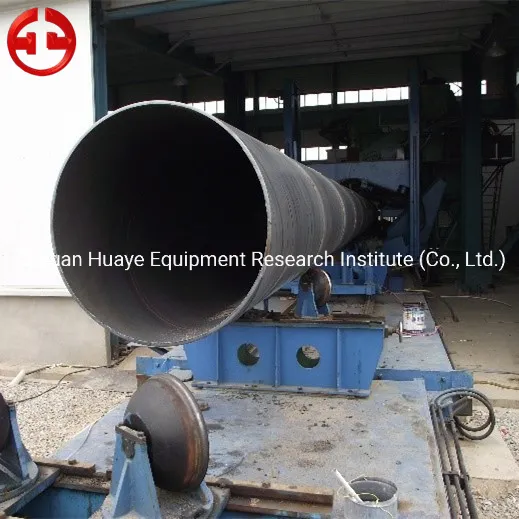

Reference projectΦ3400*14mm Spiral Pipe Mill
This pipe mill consists of spiral welded pipe mill (right-handed), bench and pipe kick-off device and other equipment, can produce Φ3400 spiral welded pipes. Product quality meets API spec 5L and SY/T5037-92 standards.
Mill Type:Front swing,Right spiral external control roller adjustable, center positioning
Welding method: internal and external welding single wire submerged arc automatic welding.
Machine parts in the working line
1) Uncoiled
2) Pinching & leveling machine
3) Manual/Electrical roll
4) End - Cutting & butt-welding machine
5) Rotary shear
6) Delivery machine
7) Guide board
8) Forming unit
9) Front bridge
10) Inside/outside welding device
11) Rear bridge
12) Flying saw cutter
13) Buried parts
14) Hydraulic system
15) Electric system
16) Inside/outside welder
17) Butt-weld car
18) Plasma cutter
19) Weld flux processing device
20) Beveling & end-facing machine
21) Hydraulic tester
22) Finishing equipment
