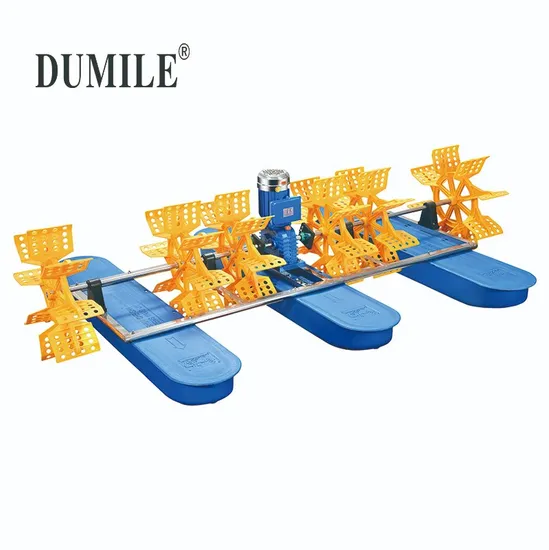

Aquaculture Aeration Pump 6 Impeller Paddle Wheel Water Cooling Aerator Popular Selling in The Philippines

Product Description

Product Description
Working Principle
When the motor starts running, impellers will rotate and touche water surface, it will press air into water and therefore increase some oxygen in water.
The most importance is working impellers can make sufficient water splash and strong water current. Large amount of splash will take air into water and enrich obviously dissolved oxygen in water. High efficiency oxygen transferring ability with1.9kgs O2/h .Meantime, water waves and current will eliminate harmful substances like ammounia, nitrite, hydrogen sulfide, etc out of water and finally clean water.
All brand new materials produced components to make sure our customers receive high quality items. It can be used both on freshwater and seawater.
Detailed Photos
1.Mechanical seal is available to against oil leak pollution.
2.Built-in protector is available to avoid motor being burnt accidentally.
3.The floating boat produced by us is made of good engineering plastic HDPE. It has great buoyancy and high strength.
4.The impeller is made of New PP. The spoke and vane is shaped with plastic only one time.
5.The flexible gearing is fixed by the stainless wheel bolt.
6.High oxygenation rate: 2.6kgs/h.
7.Easy installation and maintenance.
8.Stainless steel frame is sturdy with no deformation and high durability.
Product Parameters
AC Electric Motor
Rated Power : 1.5KW
Phase: 1 Phase / 3 Phase
Voltage: 220v-440v
Rated Frequency: 50Hz / 60Hz
Speed(RPM): 1440
Bevel Gear Box
RPM: 106
Reducing Ratio: 1:13
Gear Type: Bevel & helical

Frame
Material: SS 304 material with epoxy color protect Frame from Rust.
Qty:1 piece/machine

Impeller shaft
Material:304# stainless steel due to inside solid Iron Bar, it very heavy & it has long life.


Qty:2 piece/machine
Impeller
Material:PP
Weight: 2.5KG
OD:660mm
Featrues:8 blades
Float
Material:PE(HDPE)
Excellent in withstanding larger impact, corrosion free and weathering

100% new material with dimensional design for higher stability of the wole machine in operation.
Robber connector
Qty:2 pieces/machine

movable joint suitable whatever sea water or fresh water .

Material: 304# stainless steel. OR Cast iron and rubber could choose
Bearing bracket
Material:PP

Special synthetic rubber bush of block-beathing could withstand higher temperature and resistance against continuous friction .

Water shield
Material:PE

Using special PE material,Excellent in withstanding larger impact, corrosion free and weathering
One-piece molded without any joining for better water prevention.
Packaging & Shipping
Our Service

Pre-sale:

After-sale:

1. Can customize quality level to match customer's target price.2. Can provide samples first, samples are packaged by wooden box.3. Can provide any accessories parts on aerator for any quantity.4. Many different models and different quality level for customer to choose.5. Warranty: Different warranty for different quality level.6. Whole Life free technical guidance, follow up after use situation

1. Start production as soon as receiving down payment.2. Send photos of machine in manufacturing and finished photos to client, for your better learn about the machine's condition.3. Delivery machine in time, taking photos during loading, so you can "remote monitoring" your goods.4. Documents and certificate available in time.5. Manual documents available. Engineer can be sent to client site for installation instruction.

FAQ
Q1. What's your company's main products?
A: Our company is specialized in many kinds of fish pond aerators,including Paddle wheel aerator,Floating aerator,
Surge aerator, Wave aerator and Jet aerator. Can be working with DC/AC or solar system motor.
Q2. What's your payment term?
A: 30% T/T in deposit, the rest against on the copy of B/L.
Q3. What's the MOQ for your production?
A: The MOQ is 10 pcs or depends on your products requirements.
Q4. Is it all right to make customer's own brand name?
A: OEM is ok.
Q5. Where is your loading port?
A: Ningbo/Shanghai, China or else port as your request.
