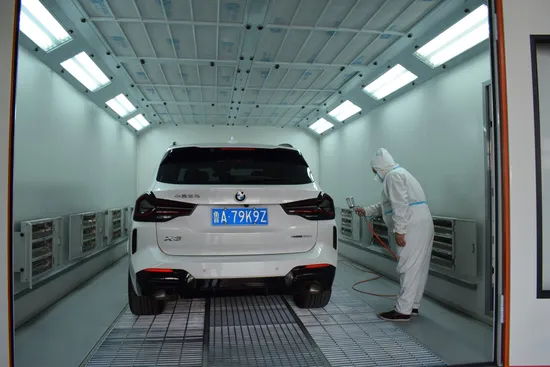

Container Painting Booth Car Spray Paint Booth Oven Chamber Automotive Bake Oven
| US$3,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LX5
Type
Spray Booth
Certification
CE
Substrate
Steel
Brand
Longxiang
Coating
Painting
Airflow Direction
Cross-flow Type
Heating Mode
Diesel
Paint Mist Treatment
Dry-type
Condition
New
Outside Size
7000*5350*3400mm(L*W*H)
Inside Size
6900*3900*2650mm(L*W*H)
Fan
Centrifugal Fan
Lighting
LED Lighting
Entrance Door
3 Folds,3000*2600 mm(W*H)
Emergency Door
650*2000mm(W*H)
Burner
Riello Burner
Heating
Diesel/Electrical Heating
Total Power
16kw
Voltage
380V/220V
Wall Panel
50/75mm EPS
Color
Red/Blue/White/Orange
Usage
Car Painting
Product Name
Painting/Baking Booth
Filter
Pre Filter,Floor Filter,High Filter
Transport Package
Shipping
Specification
7000*5350*3400mm(L*W*H)
Trademark
longxiang brand
Origin
China
HS Code
8419899090
Production Capacity
30 Sets/Months
Packaging & Delivery
Package Size
500.00cm * 220.00cm * 200.00cm
Package Gross Weight
3000.000kg
Product Description
Product Description| LX5 Parameters | |
| Outside size | 7000*5350*3400mm(L*W*H) |
| Inside size | 6900*3900*2650mm(L*W*H) |
| Entrance door | 3 folds,3000*2600 mm(W*H), bending steel door |
| Emergency door | 650*2000mm(W*H),equipped with handle lock |
| Main System | ||
| Cabin system | Wall panel | -Sandwich style EPS 50mm,0.45mm thick steel, anti-flame and heat-insulation. -High quality galvanized steel roof panel. |
| Basement | -Galvanized steel assemble,280mm high,quadrate steel support,5 rows of grills -3 ramps, 970*2000mm(W*L)/pc | |
| Ventilation system | Inlet fan | 2*4kw double-intake centrifugal fans, air capacity:12500m³/h for each set |
| Outlet fan | 1*7.5kw double-intake centrifugal fans, air capacity:21000m³/h for each set | |
| Cabinet setting type | -Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful . -Cabinet for the fan*1unit ,air duct*1unit, -Elbow:90°*1 unit | |
| On-load airflow speed | 0.4m/s,ventilation rate:315time/h | |
| Heating system | Burner | Italy RIELLO RG5S oil burner, heating capacity: 260000Kcal/h, with pneumatic damper from spraying to baking cycle |
| Heat Exchanger | 1.2mm thickness SUS304 stainless steel | |
| Max.temperature | 80ºC,heating time:4-5min(20-60ºC), fuel consumption is 6-8kg/vehicle | |
| Cabinet | Rock-wool insulation*1 unit, heat insulation and preservation,inflaming retarding | |
| Lighting system | Ceiling lights | 8*4pcs*16w LED lighting |
| Side lights | 8*2pcs*16w LED lighting | |
| Filtering system | Primary filter | Grade G2 plate type , filtering rate>83% |
| Ceiling filter | EU5 grade high efficient filter,filtering rate>98% | |
| Floor filter | Multi-layer fiberglass filter,filtering rate>70% | |
| Control system | Control panel | Intelligent control system |
| Function | Lighting, temperature time setting, painting, constant temperature painting, baking,emergency stop, failure indication, time accumulate, etc | |
| Total power | 16KW | |
| Voltage/Frequency | 380V,50HZ,3 phase | |
