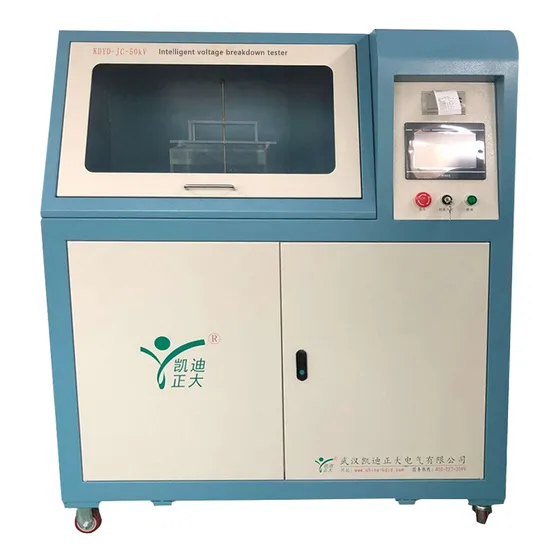

Intelligent Dielectric Strength Tester AC Hipot Test Set for Breakdown Strength and Voltage Resistance Testing of Solid Insulating Materials

Product Description

model	5KV	10KV	20KV	50KV	100KV	150KV
input voltage	AC220V 50Hz
input voltage	AC: 0-5kV; DC: 0-5kV	AC: 0-10kV; DC: 0-10kV	AC: 0-20kV; DC: 0-20kV	AC: 0-50kV; DC: 0-50kV	AC: 0-100kV; DC: 0-100kV	AC: 0-150kV; DC: 0-150kV
output power	0.5kVA	1kVA	3kVA	5kVA	10kVA	15kVA
measuring range	AC: 0.05-5kV; DC: 0-5kV	AC: 0.5-10kV; DC: 0.5-10kV	AC: 1-20kV; DC: 1-20kV	AC: 1-50kV; DC: 1-50kV	AC1-100kV; DC1-100kV	AC1~150kV; DC1-150kV
measurement error	≤ 2%
pressure rate	0.025kV/s-0.5/s	0.05kV/s~1kV/s	0.1kV/s-2kV/s	0.20kV/s-5kV/s	0.02kV/s-10kV/s	1kV/s-10kV/s
Withstand voltage time	0-4H (no load)
Leakage current	Can be freely set by computer software
source	AC 220V ± 10% single-phase AC voltage and 50Hz ± 1% frequency
Test environment	Temperature: 15-30 ºC, relative humidity: 30-65%, capable of stable operation.
Overall dimensions	long × wide × Height: 1000 × 1000 × 1400 mm
Equipment self weight		150kg			300kg
Grounding requirements	The instrument needs to be grounded separately, in accordance with national standards, and the metal rod should be buried at least 1.5 meters underground

Product Features
1. The device operates and controls the touch screen.
2. If curve analysis is required, a computer can be equipped to record data and curves only, without equipment control, so that the tester can avoid alternate operation between the computer and equipment, which is more humanized.
3. The equipment has the test parameter memory function. The same test conditions do not need to be set for each test, and the last test setting parameters will still be memorized after power failure.
4. The test interface is simple and clear, and it is equipped with schematic curve description. Different parameters and curve trends make it easy to understand.
5. The control panel is simple, with clear function annotation and simple operation.
6. It can record and display 10 test records at the same time to facilitate the comparative analysis of test data. Any group of data that is not ideal can be discarded at any time.
7. The equipment test interface adopts the real-time display mode, which is more convenient for viewing the test process.
8. The equipment has a safety warning prompt. The test cannot be started without closing the door of the test box, and a warning will pop up. The warning will pop up when the test is full (that is, the high-voltage transformer has no output). If the door is opened during the test, the test will automatically end.
9. The equipment is equipped with three color alarm. (Optional) Product packing list
KDZD5550 series voltage breakdown tester: 1 set
Input/output connection line: 1 set
Equipment grounding wire: 1 piece
Test electrodes: 2 pairs
Product manual: 1 copy
Product certificate: 1 copy
