High Quality CNC Lathe for Turning Oil Pipe Tube Fittings (CK6025)

Product Description

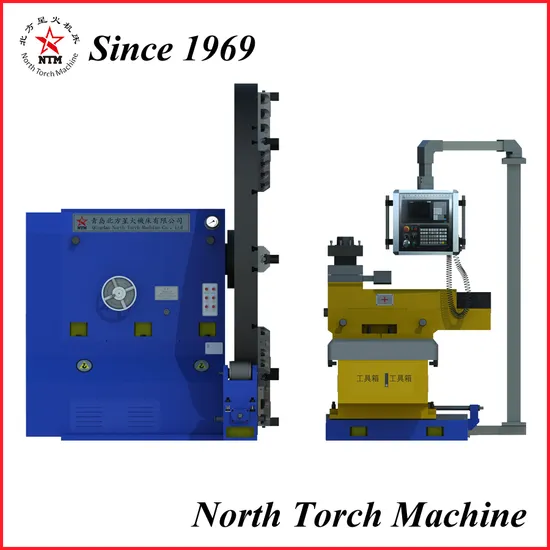

High Quality Professional Flange Turning Facing Horizontal Lathe Machine
For Turning Tyre Mold,Grooves, Flange,Bearing,Wheel, Shaft,Tire Mold, Railway Parts,Wheel Hub Turbine,etc
1. Outstanding Characteristics:
All components of machine are imported foreign famous brands, such as FANUC or SIMENS Control System/ Schneider Electrical Control system, Japanese NSK Bearing, ABB Motor& transmission box/gear box, etc. We can also configurate per customer's special request and demands. Our Engineers can design different configurations according to different workpieces characteristics.
1.) This kind of lathe can be designed into CNC Milling Lathe which has functions of Milling and Turning, including screw thread, conical surface, curved surface, internal boring, etc.
2.) This lathe adopts frequency control system as its main drive system; driven by frequency control motor, the speed of main-shaft realizes stepless speed regulating, thus having different speeds to meet rational cutting speed requirements for the machining of different type of work-piece.
3.) This lathe consists of lathe bed, selective headstock, tailstock, blade adapter, electric control system, lubrication system, and so on. Selective headstock and tailstock are installed at the left and right side of lathe bed respectively.
4.) The main shaft can realize stepless speed regulating in a range of 10~300r/min; and the main spindle front bearing adopts high-precision double row cylindrical roller bearings, having high-degree of rigidity and rotary precision and easy to adjust.
5.) High Rigidity, Stability and Precision Maintenance: All castings are made of high-strength meehanite HT250. which is particularly suitable for heavy cutting. All large castings stand the test of annealing and vibration aging and internal stress is eliminated, so the overall precision is greatly enhanced and processed parts are found with high geometric accuracy.
Our Principle : Maximize Customer's Profitability under the minimum invest cost.
Customized Lathe is Our Special Characteristics
Optional Selection:
1. Bearing, Gear Box,CNC Control System can be specified by customer
2. Metal Shield/Flash Guide for Machine can be optional
Application: This is a CNC horizontal roller lathe which is suitable for high-speed steel and carbide cutting tool to implement coarse and fine stock removing and cutting on the outer cylindrical surface of roller of different materials; it also can be used for rough and finish machining of other shaft parts.
2. Standard Technical Parameters

CK60 series - Flange Lathe Floor Type CNC Lathe
Type	Unit	CK6016	CK6018	CK6020	CK6025	CK6030
Swing Diameter	mm	φ1600mm	φ1800mm	φ2000mm	φ2500mm	φ3000
Chuck Diameter	mm	φ1000mm	φ1250mm	φ1600mm	φ2000mm	φ2500mm
Chuck jaw seat length	mm	400mm	400mm	500mm	500mm	500mm
Work-piece length	mm	500mm	500mm	500mm	750mm	1000mm
Work-piece Weight	T	2T	2T	3T	3T	3T
Spindle Diameter	mm	φ190mm	φ200mm	φ220mm	φ220mm	φ260mm
Spindle speeds	r/min	14-108r/min	14-108r/min	4-160r/min	4-106r/min	4-106r/min
X Axis Stroke	mm	800mm	900mm`	1000mm	1250mm	1500mm
Z Axis Stroke	mm	350mm	350mm	350mm	350mm	350mm
X Axis Rapid Speed	mm/min	2500mm/min	2500mm/min	2500mm/min	2500mm/min	2500mm/min
Z Axis Rapid Speed	mm/min	2000mm/min	2000mm/min	2000mm/min	2000mm/min	2000mm/min
Cutting Tool Carriage Size		280*280	280*280	300*300	300*300	300*300
Cutting Tool Bar Size	mm	40*40mm	40*40mm	40*40mm	40*40mm	40*40mm
Motor Parameters
Main motor power	KW	11KW	11KW	15KW	18.5KW	22KW
Feed motor power	KW	2.3KW	2.3KW	2.3KW	2.3KW	2.3KW
Lubrication motor power	KW	0.37KW	0.37KW	0.37KW	0.55KW	0.55KW
Machine Accuracy
Cylindricity	mm	0.03/300mm	0.03/300mm	0.03/300mm	0.03/300mm	0.03/300mm
Platness	mm	0.03/300mm	0.03/300mm	0.03/300mm	0.03/300mm	0.03/300mm
Roughness	Ra	Ra3.2	Ra3.2	Ra3.2	Ra3.2	Ra3.2
L*W*H Machine Dimensions	mm	2800*1850*1800mm	2800*1950*1900mm	2800*2000*2000mm	3250*2650*2650mm	3500*3300*3200mm
Machine Weight	T	6T	9.5T	11T	12.5T	15T

Rermarks:
1. The above 5 models of CNC Lathes are the standard configurations, we can also design and manufacture customized lathe according to the user's workpiece features.
2. This series horizontal Lathe Machines have been exported to Norway, Thailand, Romania, Iran, Russia, Chile for machining railway parts, automobile parts, mining and metallurgy, shipping building, wind power and other machinery industry.
Foreign Customer's Praise for our Product and Management
3. After-sale Service and Maintenance
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
For more details, please feel free to contact us. Thanks!
