Hydraulic Pressure Single Layer Wood Working Machine 100 Ton Cold Press Machinery

Product Description

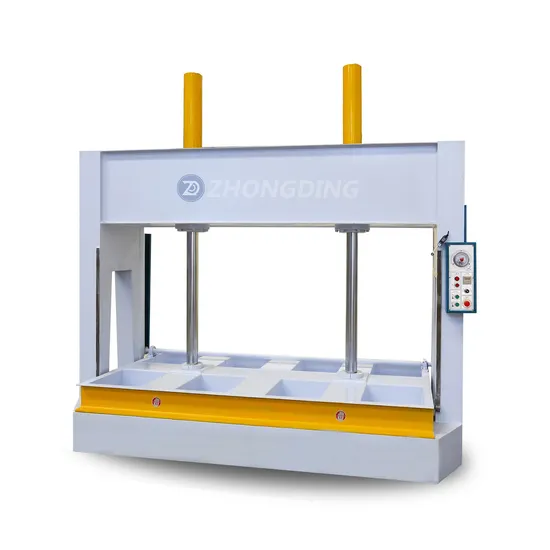

100 Ton Cold Press Machine Woodworking Machinery Optional with Roller/Conveyor/Cylinder
MJ100A
Product Parameters
We have a plenty kinds of cold press for you to choose freedomly.
You can choose it with or without roller.
And here are two different pressure cold presses.

Model	MJ50	MJ100
Max. pressure	50T	100T
Dimension of the platen	1250*2500mm	1250*2500mm
Working speed	180mm/min	180mm/min
Total power	5.5kw	5.5kw
Stroke	1000mm	1000mm
Overall dimensions	2860*1300*2350mm	2860*1300*2350mm
Net weight	2000kg	2400kg

And you can also select the number of cylinders.Here are examples.
1.Three cylinders cold press.
2.Four cylinders cold press.
3.Longer four meters cold press.
4.Six cylinders cold press.
If you are interested, please feel free to contact me. Our Advantages
1.Our cold press is the standard product of national testing, other small factories are non-standard products, there is a gap between the actual and standard products. For example, 50T standard products, often only 30T, check 30T, the performance of various accessories will exceed the design performance, fatigue will increase, shorten the service life, and even dangerous failures.
2.The control system is imported from Taiwan, the sensitivity and the use time is long, and the control system of other small factories is that of domestic small factories, and there are many small faults.
3.Different types of steel are used. Our key parts use steel, elastic recovery and tensile fatigue degree is stronger than peers. The operation process is smooth, the weight is 300-500kg heavier than the local small factory products.
4.All kinds of sealing rings, instruments, electrical parts using the best, sealing ring protection for 6 years, all kinds of electrical parts protection for 5 years.
5.The flatness of the upper and lower table is good, the working surface is machined with large gantry milling (3 meters long), a molding, the flatness is within 10 wires. Other small plants use small gantry milling, segmented processing (can not be formed at one time).
Using our machine,you can get product like this:
