LPG Bullet Filling Tanks

Product Description

Product Description
LPG Storage Tank
HONGTU has the design & fabrication capacity of LPG stationary storage tanks including above-ground tanks, underground tanks and mounded tanks etc. All kinds of tanks could be customized according to the customers' requirements.
Design Standard:
ASME BPVC VIII-1 2017 ; NB/T47042-2014 GB/T150-2011 TSG 21-2016
Vessel Capacity: 0.5m3~1000m3
Main Material:
SA-516, SA-612,Q370R etc.

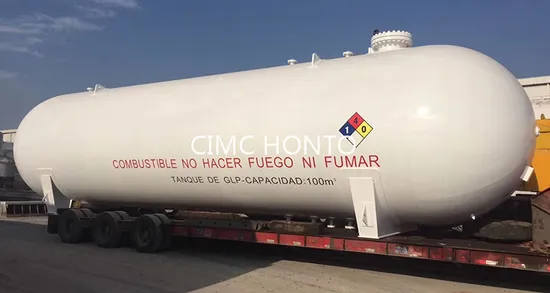

Above-ground LPG Storage Tank

I.Chinese Standard
Capacity	Diameter x Height x Length	Tank Weight	Payload	Thickness
10m3	φ1600×2370×5300mm	3400kg	4035kg	Shell 8.53mm/Head 8.51mm
20m3	φ2200×2970×5680mm	5150kg	8070kg	Shell 11.35mm/Head 11.33mm
32m3	φ2200×2970×8850mm	7200kg	12920kg
40m3	φ2470×3240×8843mm	8780kg	16410kg	Shell 12.62mm/Head 12.59mm
50m3	φ2470×3240×10903mm	10420kg	20180kg
63m3	φ2470×3240×13623mm	12600kg	25420kg
80m3	φ3100×3800×11170mm	16700kg	32280kg	Shell 15.58mm/Head 15.87mm
100m3	φ3100×3800×13850mm	20000kg	40350kg
120m3	φ3400×4104×13840mm	24500kg	48400kg	Shell 17.35mm/Head 17.31mm
150m3	φ3400×4104×17140mm	29800kg	60500kg
200m3	φ3800×4560×18324mm	40100kg	80700kg	Shell 19.27mm/Head 19.22mm

Main Material	Q345R	Design Pressure	1.61Mpa
Hydraulic Test Pressure	2.22Mpa	Working Pressure	≤1.61Mpa
Corrosion Allowance	1mm	Design Temperature	-20~50ºC
Life Expectancy	20years	Working Temperature	-20~50ºC

Notes:
Above exsited design capacities for you to choose from. If you have any other different requirements, we could also provide you with customized design.

II.ASME Standard
Capacity	Diameter x Height x Length	Tank Weight	Payload	Thickness
10m3	φ1600×2440×5308mm	3850kg	4630kg	Shell 11.09mm/Head 11.02mm
20m3	φ2200×3050×5690mm	6920kg	9260kg	Shell 14.86mm/Head 14.78mm
32m3	φ2200×3050×8860mm	9750kg	14820kg
40m3	φ2470×3320×8851mm	11930kg	18530kg	Shell 16.56mm/Head 16.47mm
50m3	φ2470×3320×10911mm	15420kg	25470kg
60m3	φ2470×3320×13001mm	16600kg	27790kg
80m3	φ3100×3960×11178mm	22820kg	37060kg	Shell 20.53mm/Head 20.41mm
100m3	φ3100×3960×13858mm	27430kg	46320kg
120m3	φ3200×3542×16100mm	26100kg	51000kg	Shell 20.14mm/Head 10.07mm
150m3	φ3300×4210×18158mm	39930kg	69480kg	Shell 21.79mm/Head 21.66mm

Main Material	SA-516 Gr.70	Design Pressure	1.724Mpa
Hydraulic Test Pressure	2.25Mpa	Working Pressure	≤1.724Mpa
Corrosion Allowance	1mm	Design Temperature	50ºC
Specific Gravity	0.545@15ºC	Working Temperature	-20~50ºC

Notes:
Above exsited design capacities for you to choose from. If you have any other different requirements, we could also provide you with customized design. Underground LPG Storage Tank

Chinese GB Standard
Water Capacity	Inner Diameter	Overall Length	Height	Weight	Payload (90% Filling Ratio)	Thickness
						Shell	Heads
7m³	1200mm	6560mm	2430mm	3100kg	2820kg	7.5mm	6.64mm
10m³	1600mm	5300mm	2870mm	3800kg	4035kg	8.53mm	8.51mm
20m³	2000mm	6800mm	3290mm	5900kg	8070kg	10.41mm	10.39mm
25m³	2200mm	7000mm	3484mm	6300kg	10090kg	11.36mm	11.33mm
50m³	2470mm	10903mm	3756mm	11220kg	20180kg	12.62mm	12.59mm

Main Material	Q345R	Design Pressure	1.61MPa
Hydraulic Test Pressure	2.22MPa	Working Pressure	≤1.61MPa
Corrosion Allowance	1.0mm	Design Temperature	-20/50ºC
Life Expectancy	20 years	Working Temperature	-20/50ºC

Notes:
Above existed design capacities for you to choose from. If you have any other different requirements, we would also provide you with customized design.
LPG Mounded Tank

ASME Standard
Water Capacity	Inner Diameter	Overall Length	Height	Weight	Payload (90% Filling Ratio)	Material	Design Pressure	Thickness
								Shell	Heads
22m³	2000mm	7420mm	2774mm	6200kg	8876kg	Q345R	1.61MPa	11.56mm	10.47mm
98.5m³	3500mm	11588mm	3548mm	25100kg	47073kg	SA-516 GR.70	1.724MPa	23.05mm	13.21mm
124m³	3450mm	14410mm	5140mm	26500kg	60890kg		1.38MPa	18.98mm	10.28mm

Notes:
Above existed design capacities for you to choose from. If you have any other different requirements, we could also provide you with customized design. Certifications
Company Profile
Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd (hereinafter called CIMC HONGTU) is a wholly owned enterprise of CIMC ENRIC Holding Co., Ltd(CIMC ENRIC)., a listed company in Hong Kong. It was founded in 1971, formerly known as Hongtu Aircraft Factory(HONGTU), affiliated to the Aviation Industry Corporation of China(the Third Ministry of Machine Building Industry). With a history of 40 years of pressure vessel manufacturing and an investment of CNY 1.3 Billion in Jingmen City, CIMC HONGTU has become the largest production base of energy and chemical equipment in the central and western regions of China. It is mainly devoted to the manufacturing of high-end equipment for the energy and chemical industry.With the subject of scientific and technological innovation and the core of intelligent manufacturing and green manufacturing, focusing on manufacturing of high-end energy and chemical transportation and storage equipment. The main products are LPG road tankers, LNG cryogenic liquid road tankers, large scale spherical tanks, cryogenic flat-bottom storage tanks, large scale special chemical vessels, marine "oil to gas" fuel tanks and supporting equipment for energy and chemical systems. The company can provide one-stop integrated solutions for customers such as the storage stations, peak-shaving stations, refilling stations of energy and chemical gas and natural gas.The production and sales of LPG road tankers of CIMC HONGTU has ranked No.1 for the last 40+ consecutive years in China, and the spherical tank production and sales has ranked No.1 in domestic market. CIMC HONGTU's products have been exported to 50 plus countries and regions in Europe, Middle East, North & South America, Southeast Asia, Northeast Asia, Mid-Asia and Africa.
Our Advantages 01 Powerful R&D Capability
HONGTU has more than 300 technical staff in Tankers & Vessels R&D Department, Cryogenic Vessel R&D Department, Engineering R&D Department, Production Technology Department, Welding Technology Department, Quality Technology
Department and Quality Control Department.
The company has around 100 valid patents (including 18 invention patents, 1 appearance patent).
02 Strong Production Capacity
The company has various manufacturing equipment over 2,300 sets.
The total area of the company is 130,000m³, of which, the total area of the workshop is 103,641m³. There are 6 manufacturing workshops, including LPG tanker and vessel manufacturing workshop, spherical shell prefabrication workshop, LNG and cryogenic liquefied gas tanker and vessel manufacturing workshop, household LPG storage tank manufacturing workshop, petrochemical equipment manufacturing workshop and chassis manufacturing workshop.
The company ranks No.1 in production capacity & efficiency of the LPG vessels in China.
The company ranks No.1 in working capacity & efficiency of the spherical shell prefabrication line in China, with annual capacity of 70000 tons.
The company owns the first intelligent production line for household LPG storage tanks in China, with annual capacity of 12000 units/shift.
03 Scientific and Rigorous Quality Assurance System
The whole process of product quality control from design to delivery needs to pass 115 quality control points, 192 quality control procedures, with 66 QC documents to support and to be followed.
The annual number of X-ray film is more than 500,000 pcs, and the quality file of each product is archived throughout its life cycle, and each weld can be traced back.
Hongtu owns a special quality control center, which obtains grade 3 certificate for national defense metrology and has inspection capacity of length, hardness, pressure, temperature, metallographic, electromagnetic, chemical and mechanical, covering all the inspection of outsourced material and process tests.
04 Fast and Efficient After-sales Services
The company has 30 plus professionals engaged in after-sales services, and it has its own customer service center, always dedicated to providing the best on-site after-sales service and online after-sales technical support.
With strong technique, manufacturing, testing and other capabilities, Hongtu is committed to providing excellent service in the whole product life cycle.
