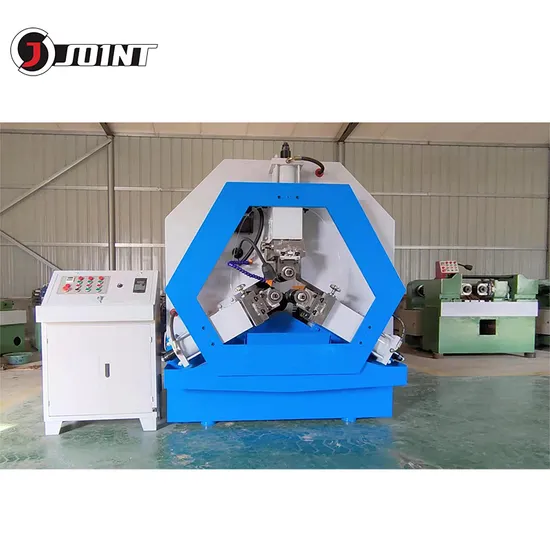

Zp-65 3-Axis Thread Rolling Machine Suitable for Thread Rolling of Hollow Pipe Fittings

Product Description

Introduction:
The whole body casting structure is strong, the manufacture is excellent, the maintenance is convenient, and the price is reasonable, so it is very popular among users. This product can be processed radially and axially. With the corresponding thread rolling wheel, it can process ordinary bolts, special-shaped bolts, and through buckles. The wire is especially suitable for rolling the threads of hollow pipe fittings.

Product Characteristics:
The three-axis thread hobbing machine can easily process various tubular threads, and is also suitable for various knurling, reticulated, straight lines and other operations; Equal triangle support operation is adopted to ensure the roundness and perpendicularity, so as to facilitate passing through the go gauge and no go gauge; It is driven by oil pressure (hydraulic pressure). It is easy to operate, stable and durable. It is widely used in the wire rolling processing of oil pipe joints, motorcycle parts, air conditioning pipe evaporators, various fasteners, condenser copper pipes and other workpieces.
Specification:

Model		Unit	ZP-65
Rolling Force		KN	200
Rolling Diameter		mm	25-90
Rolling Pitch		mm	1-12
Max.Diameter of Rolling Wheel		mm	125-180
Thread Roller Aperture		mm	54
Max.Width of Rolling Wheel		mm	100
Number of Spindles			3
Spindle Tilt Angle			8
Spindle Tilt Angle		r/m	1-50 Stepless Speed Regulation
Rolling Power		kw	11
Hydraulic Power		kw	5.5
Cooling Power		kw	0.12
Weight		kg	3000
Dimension		mm	2000*1600*1700

Applicant Industry:
Package:
