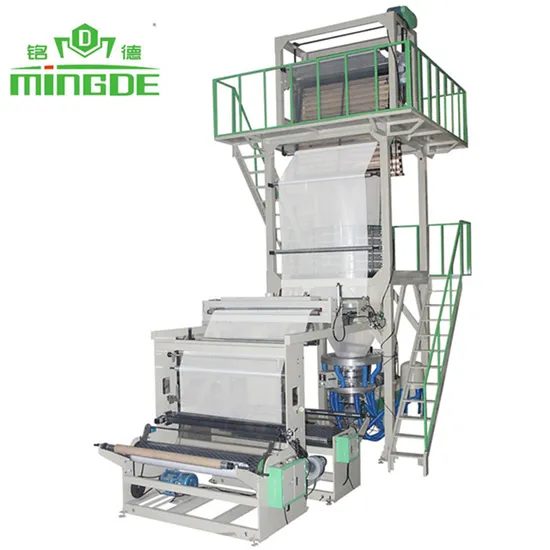

Mingde High Speed Automatic Plastic LDPE Blown Wide Film Extruder Blowing Machine
| US$30,000.00-110,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
MD-L
Type
PE Film Blowing Machine
Raw Material
LDPE
Maximum Folding Width of Film
2500mm
Screw Diameter
100mm
Automation
Automatic
Computerized
Computerized
Machine Weight
4T
Certification
CE, ISO9001:2008
Film Thickness
Ld:0.015-0.15mm
Type of Rewinder
Fully Automatic
Gear Box
250
Output
280kgs/Hr
Screw L/D Ratio
30:1
Die Head
500/600
Winding Speed(M/Min)
5-60
Transport Package
Wooden Packing
Trademark
Mingde
Origin
China
HS Code
8477209000
Production Capacity
280kg/Hr
Product Description
Mingde High Speed Automatic Plastic LDPE Blown Wide Film Extruder Blowing Machine1. It is used to blowing LDPE, which has been widely used for producing laminating film, packing film, agricultural covering film, bag or film for textile and clothing and other packing material.
2. The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%.
3. The screw and barrel adopt 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is, big or small, it can achieve the best effect of cooling.
Optional equipment
Double winder
Rotary die head
Auto loader
Double lip air ring
Air shaft
Corona treatment
Fast screen changer
Air compressor
All roller pneumatic type
| Model | MD-L75 | MD-L90 | MD-L100 |
| Suitable Material | LDPE HDPE LLDPE | LDPE LLDPE | LDPE LLDPE |
| Max Film Width(mm) | 800-1500 | 1000-2000 | 1500-2500 |
| Film Thickness(mm) | LD:0.015-0.15 | LD:0.015-0.15 | LD:0.015-0.15 |
| Max Extrusion Output | 150kg/hr | 200kg/hr | 280kg/hr |
| Gear Box | 200 | 225 | 250 |
| Screw Diameter(mm) | φ75 | φ90 | φ100 |
| Screw's Material | 38 CRMOALA | 38 CRMOALA | 38 CRMOALA |
| Barrel's Material | 38 CRMOALA | 38 CRMOALA | 38 CRMOALA |
| Barrel's Cooling Fan | 370W*3 | 550W*3 | 550W*4 |
| Thermo Control (zone) | 4 | 5 | 5 |
| Driving Motor (kw) | 45 | 55 | 75 |
| Die Size (mm) | LD:φ350/400 | LD:φ400/500 | LD:φ500/600 |
| Rotary Die Head | 360° Continue Rotary | ||
| Thermo Control(zone) | 3 | 4 | 4 |
| Air Ring | 1 pcs | 1 pcs | 1 pcs |
| Cooling Blower(kw) | 5.5 | 7.5 | 11 |
| Roller Width(mm) | φ165*1600 | φ190*2100 | φ220*2600 |
| Take-UP Motor (kw) | 1.5 | 2.2 | 2.2 |
| Take-UP Speed(M/min) | 5-60 | 5-60 | 5-50 |
| Type of Winder | Surface Friction Double Winders | ||
| Roller Width (mm) | 1600 | 2100 | 2600 |
| Winding Motor(KW) | 16N.M | 1.5KW | 2.2KW |
| Winding Speed(M/min) | 5-60 | 5-60 | 5-60 |
| Voltage | 380V/50HZ/3PHASE | 380V/50HZ/3PHASE | 380V/50HZ/3PHASE |
| Cover Dimensins(m) | 6.8*2.6*6.5 | 7.5*3.2*7.5 | 9.4.2*9 |
