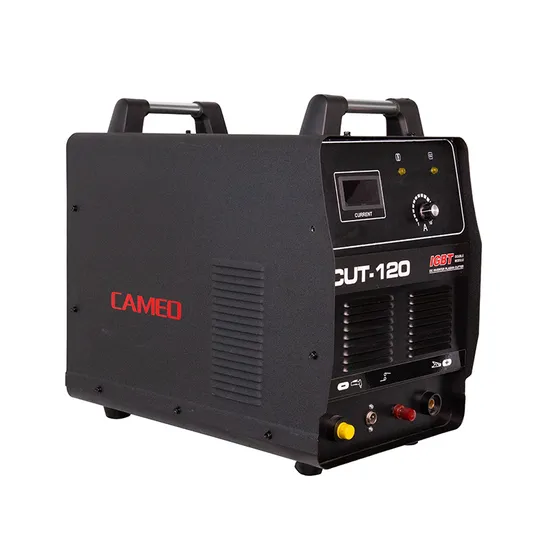

Wholesales Cut-120 Portable Plasma Cutting Machine Price
| US$288.00-399.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
CUT-120
After-sales Service
One Year
Warranty
One Year
Customized
Customized
Layout
Horizontal
Cutting Material
Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
Automatic Grade
Manual
Power Source
Electric
Cutting Mode
Plasma Cutting
Model
Cut-120
Rated Input Voltage(V)
AC 380
Rated Input Current(a)
42
Open Circuit Voltage(V)
310
Rated Output Current(a)
120
Rated Load Endurance @ 40ºC
60%
Air Pressure Regulating
0.6-0.65
Cutting Thickness
1-45
Insulation Class
F
N.W/G.W(Kg)
30.6/36.3
Dimensions(mm)
624*415*530
Loading Q′ty(20gp/40hq)
196/410
Protection Grade
IP21s
Transport Package
Carton Box
Specification
Dimensions(mm): 624x 415 x 530
Trademark
Cameo
Origin
Chongqing, China
HS Code
8456401000
Production Capacity
20000unit/Month
Product Description
| Model | CUT-40 | CUT-60 | CUT-80 | CUT-100 | CUT-120 |
| Rated Input Voltage(V) | AC 220 | AC 380 | AC 380 | AC 380 | AC 380 |
| Rated Input Current(A) | 32 | 17 | 23 | 33 | 42 |
| Open Circuit Voltage(V) | 240 | 260 | 280 | 300 | 310 |
| Rated Output Current(A) | 40 | 60 | 75 | 100 | 120 |
| Rated Load Endurance @40ºC | 60% | 60% | 60% | 60% | 60% |
| Air Pressure Regulating | 0.3-0.35 | 0.35-0.45 | 0.45-0.5 | 0.5-0.6 | 0.6-0.65 |
| Cutting Thickness | 1-10 | 1-15 | 1-25 | 1-40 | 1-45 |
| Insulation Class | F | F | F | F | F |
| Protection Grade | IP21S | IP21S | IP21S | IP21S | IP21S |
| N.W/G.W(KG) | 7/9.9 | 11/14.5 | 21/26 | 29/34.5 | 30.6/36.3 |
| Dimensions(mm) | 450x270x345 | 535x305x410 | 585x375x500 | 624x415x530 | 624x415x530 |
| Loading Qty(20GP/40HQ) | 630/1300 | 395/820 | 232/490 | 196/410 | 196/410 |
Here is brief introduction of Camel Power as below:
* 20 years' experience in general machine industry.
* the company has its own workshop with an area of more than 50000 square meters and more than 200 employees.
* It has five automatic production lines and advanced online inspection equipment, with an annual production capacity of more than 500,000 units.
* Our products have been exported to nearly 100 countries and regions around the world.
* Main products: generator sets, welding machine, water pump, air compressor and other terminal series
