Basic Info.
Type
Screw Press Dewatering
Separation Mode
Filter Type
Operating Type
Continuous Type
Centrifuge Type
Solid Liquid Separating
Distillation Equipment Type
Dewatering
Extraction Tower Type
Screw Press
Working Mode
Continuous Flow
Moisture Content After Processing
60%
Type of Separator
Solid and Liquid Separation
Material of Contact Parts
SUS304
Transport Package
Standard Export Package
Specification
2890*960*1300mm
Production Capacity
1000sets/Year
Product Description
Product Description

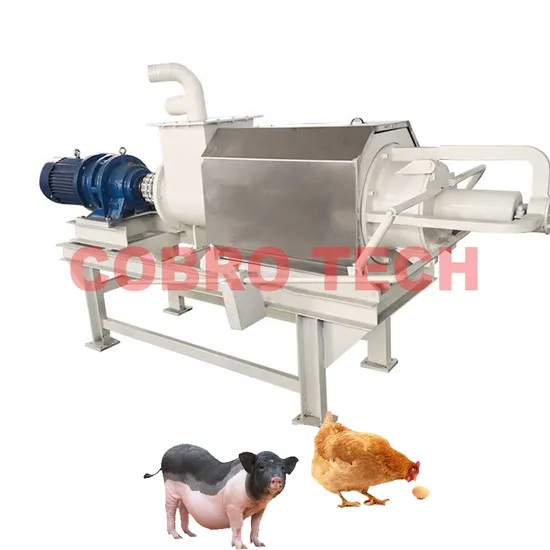

The municipal waste solid liquid separator is mainly composed of motor,speed reducer,screw compression device,screen sieve,lever device,control cabinet,bracket, pump, piping and other accessory parts.The working principle is to use pump or other device to feed raw material into the separator,the screw will press the material continuously with the rotation of axis.The liquid pass through the screen at the pressure of screw and the solid discharge from slag outlet when the pressure is over max torque.
The solid content in the raw material can be around 30%, and the moisture of final product is about 40% which means you can not press out any water by hands
Advantages of Solid Liquid Separator
Product Application
Application of solid liquid separator Plant and Chinese medicine extraction: honeysuckle extract, tea polyphenol extract, etc. Food and feed: dehydration of fish meal and fish meat, separation of fruit juice and pulp fiber, dehydration of soybean, wheat protein, xylitol, corn fiber, vegetable starch, etc. Mycelium separation of antibiotic fermentation broth. Separation of blood products. Municipal sewage and power plant sewage, printing and dyeing sewage, papermaking sewage and other industrial waste water.
