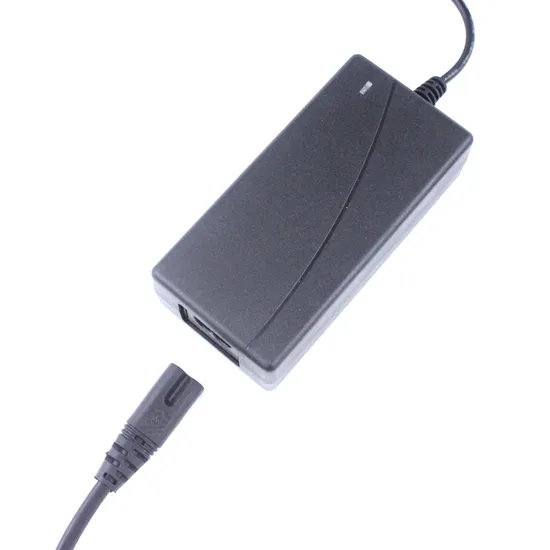

Shenzhen 17 Years Manufacturer 48W Charger 12 Volt 4 AMP Constant Voltage LED Lps Adaptor 50W Laptop Unit 12V Supply 4A White Power to AC DC Adapter 5V 10A

Product Description

Shenzhen 17 years manufacturer 48W Charger 12 Volt 4 AMP Constant Voltage LED Lps Adaptor 50W Laptop Unit 12V Supply 4A White Power to AC DC Adapter 5V 10A

MODEL		GF-150245NS	GF-240245NS
OUTPUT	DC VOLTAGE	15V	24V
	OUTPUT POWER	45W	45W
	CURRENT RANGE	3A	2A
	RIPPLE & NOISE(max.)	120mVp-p	200mVp-p
	VOLTAGE TOLERANCE	±5.0%
	CONNECTOR	5.5 x 2.5, 5.5 x 2.1, 3.5 x 1.35, 4.1 x 1.7, micro 5pin, mini USB,or customized requirement
	DC CABLE	1.15M or customized requirement
INPUT	AC CABLE	US UK AU EU KR IN etc.
	VOLTAGE RANGE	110~ 240VAC
	AC CURRENT(Typ.)	0.5A/ 240VAC
	FREQUENCY RANGE	47-63Hz
	EFFICIENCY(Typ.)	82%	83%
	INRUSH CURRENT(Typ.)	COLD START 15A/115VAC 30A/230VAC
	LEAKAGE CURRENT	<0.25mA/240VAC
PROTECTION	OVER LOAD	115%~135% of rated power; Pulsing hicuup shut down,auto recovery
	OVER VOLTAGE	Rated output voltage of 105%~150% start overvoltage protecion
		Protection: burst mode,load of abnormal conditions removed the automatic recovery
	SHORT CIRCUIT	voltage off and reset input for recovers
ENVIRONMENT	WORKING TEMP.	-0ºC ~ +45ºC (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP.,HUMIDITY	-20ºC ~ +85ºC 10~95% RH
	TEMP. COEFFICIENT	±0.05%/ºC
	COOLING METHOD	BY FREE AIR CONVECTION
SAFTY & EMC	ISOLATION RESISTANCE	P-S>50Mohm at 500V DC
	WITHSTAND VOLTAGE	3KV,10mA,60S
OTHERS	DIMENSION	112*54*32mm(L*W*H) or customized requirement
	WEIGHT	0.28Kg,100PCS/Carton
	SHELL MATERIAL	Black plastic

MOQ-
No limited

Many power models-
5 Watts - 1800 Watts

Many voltage output-
5V, 7.5V, 9V, 12V, 13.8V, 15V, 18V, 24V,29V, 36V, 48V,50V,60V (Depend on your requirement).

New Design-
We have professional engineer to make new design as your speical requirment.

Good quality-
We have the best professional and experienced engineer and the strict QC system.

Sample order-
We are pleased to offer you free sample, but you need to bear oversea freight.

Fast delivery-
The delivery time is 1-25 days which depend on quantity and details items.

Payment term-
T/T, L/C, Paypal, Western Union, Money Gram.

Solutions-
With more than 10 years experience,we can provide professional design solution for power supply according your requirement.

Cooperation-
You are welcome to be our distributor or agent in all over the world for switch power supply.Please contact us for more details.
