X6332A Fresadora Vertical Horizontal Milling Drilling Cutting Tapping Lathe machine
| US$11,550.00-13,200.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
X6332A
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table Size
1370*320
X Axis
Dovetail
Y Axis
Square
Z Axis
Square
Motor
3.7Kw(V) 3.0Kw(H)
Spindle
ISO40(H,V)
Transport Package
Pallet
Specification
1900*1750*2230
Trademark
DURAMILLS or OEM
Origin
China
HS Code
8459699000
Production Capacity
20000 Sets/Year
Product Description
| Specification | Unit | X6332A |
| Table size | mm | 1370*320 |
| Table travel X/Y/Z | mm | 820/300/400 |
| Spindle taper | ISO40(H,V) | |
| Max turning angle of working table | deg | ±45 |
| Tilt angle for milling head | deg | left and right ±45 |
| T-slot number/width | 3/14mm | |
| Arbor dia. | mm | 27 |
| Disance from horizontal spindle center to table | mm | 75-475 |
| Disance from spindle nose to table | mm | 160-560 |
| Distance from spindle axis to ram surface | mm | 200 |
| Spindle speed range | r/min | 65-4660(V) 35-1500(H) |
| Feeding range of longitudinal, cross travel | mm/min | 30-830 |
| Auto-feeding of Z-axis | mm/min | 23-625 |
| Rapid feed of longitudinal, cross travel | mm/min | 1335 |
| Rapid feed of Z-axis | mm/min | 1000 |
| Horse power for main motor | kW | 3.7(V) 3.0(H) |
| Overall dimensions | mm | 1900*1750*2230 |
| N.W/G.W | KGS | 1950/2250 |
| Hercules Machinery Equipment Ltd. | ||
Standard Accessories:
1. Feed motor: 3 axes using a 10N.m servo motor,auto-feed and change speeds variably (3 axes driven by one servo motor);
2. Work light: 1 set;
3. Draw bar: M16;
4. Milling arbor: 27mm;
5. Tools: 1 set;

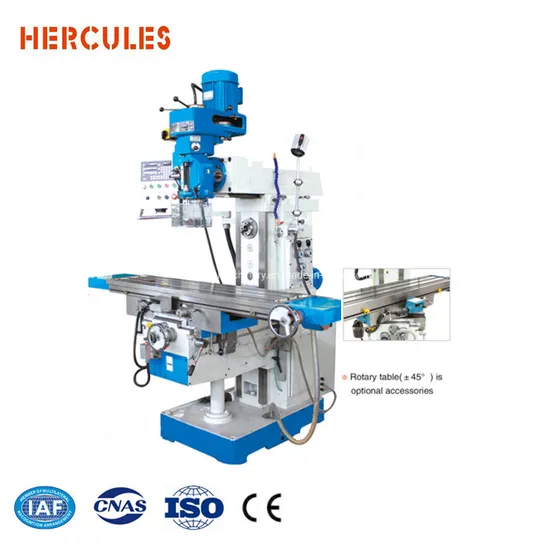

Pictures for reference only:
