Laboratory Computer Control Rubber Rotorless Rheometer ASTM D5289

Laboratory Computer Control Rubber Rotorless Rheometer ASTM D5289

Product Description

Product Description

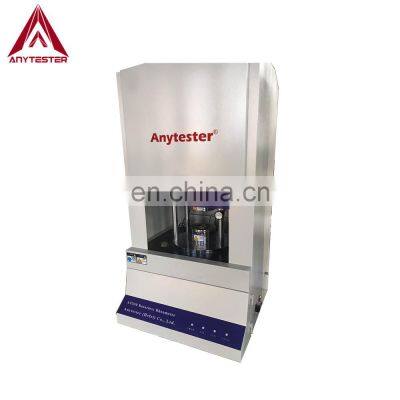

Product DescriptionAT330 Rotorless Rheometer is used to determine the vulcanization characteristics of a rubber compound. It can dynamically display temperature curve and curve of shear modulus- vulcanization time under set temperature and pressure. It consists of main machine, temperature determination and control system, sensor, computer, data collector, printer and electrical components.StandardISO 6502ASTM D5289GB/T 16584Note: For more standards, please contact usSpecificationModelAT330Temperature rangeRT+5℃~200℃Temperature accuracy of die cavity≤±0.1℃Heating time≤10minTemperature compensation rateWithin 15min to reach to set temperature after putting the specimen into die cavityTorque range0-10 NmTorque resolution0.001 NmThe frequency of oscillation1.7Hz (100r·min-1)The angle of oscillation±0.5°, ±1°Power supplyAC220V 50HzDimension625mm×600mm×1250mmWeight240kgDetails & Features★ A necessary equipment to optimize formula, make production parameters and improve quality of rubber product★ High accuracy, good repeatability and stability, convenient and practical, it can precisely find out the best vulcanizing time★ Imported intelligent digital meter, easy to adjust and set, large temperature control range, high accuracy★ Computer (optional) control, collect, save and save test data, printout test result★ Test curves can be magnified and compared★ Windows operation platform to make date processing more accurate Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
