Multifunction Horizontal Type CNC Machining Center

Product Description

1.High Precision Fanuc CNC Horizontal Machining Center Product Description
1.1 DESCRIPTION
FEATURE
1.2 FEATURE

1. It adopts the internationally popular inverted T-shaped moving column overall bed structure, which has the advantages of high rigidity, good stability, and easy protection.
2.The main castings are made of high-grade high-quality cast iron, resin sand molding, and secondary aging treatment after rough machining to ensure the stability of precision.
3.Fully enclosed protection design, double-sided spiral chip removal structure, equipped with large-capacity cutting fluid tank and convenient machine cleaning air gun, optional chain plate type chip removal lifting device and chip storage car.
4.The standard BT50 ring spray spindle is equipped with an air curtain protection device to completely avoid the penetration of cutting fluid and dust; the spindle sleeve is cooled by circulating oil to ensure the accuracy of the spindle and prolong its service life.
5.Fast and reliable cam manipulator tool changing mechanism, with 30 standard configurations, and 40 chain tool magazines can be selected, and the tool discs adopt the two-way nearest tool selection method, which is fast, stable and reliable.
6.The oil-water separation structure design of the machine tool is equipped with a centralized lubricating oil recovery system, saving energy. About oil, protect the environment.
7.The three-axis ball screw is pre-stretched with double supports to optimize the transmission rigidity and reduce thermal deformation.
8.The three-axis feed drive adopts imported heavy-duty roller linear guides, and the preload is V3 level, with high load capacity and stable precision.
9. The rotary table adopts high-precision end gear positioning, which can provide 1°×360 bidirectional positioning turntable with high indexing and positioning accuracy.
10.Equipped with high-performance CNC controller and AC digital drive device, the electrical system design conforms to GB-5226.1 standard and CE safety regulations, heat exchangers are reasonably arranged in the electrical box, and the convenient rotatable machine tool console is equipped with a portable MPG operating device.
1.3 PARAMETERS

Specification		HMC63
Worktable size (W×L)	mm	630×630
Table indexing number/pallet exchange time	Deg	1°*360/30sec(thousandth OP)
Table form (,No.*screw hole)	mm	5-22*125T
Max.loading of worktable	kg	1200
Distance from spindle center to worktable	mm	100~850
Distance from the spindle front end to worktable center	mm	150~1050
Max. Workpiece swing diameter on worktable	mm	1400
X/Y/Z axis travelling	mm	1050/750/900
X/Y/Z guideway	type	Heavy Duty Linear Rolling Guide
X/Y/Z quickly move speed	m/min	30/30/30
Max. Turning speed of turntable	r/min	4~6
Mx cutting feed speed	m/min	10
X/Y/Z/ turntable axis servo motor torque Power	Nm kw	22/30/30/ 12 4.0/7.0/7.0/ 3.0
Spindle motor power	KW	26KW
Spindle speed range	r/min	6000
Tool magazine capacity/form	pcs	30 tool
Spindle taper	bt	BT50
Max.tool weight	Kg	18
Max. tool size (diameter/length)	mm	Φ125(NeighborhoodΦ250)/350
Tool change time (tool to tool) / tool change method	Sec	5 / Random
X/Y/Z axis position accuracy	mm	0.008
X/Y/Z axis repeat position accuracy	mm	0.005
Worktable position accuracy/repeat position accuracy	″	(5″/8″)-(5″/3″)
CNC system display	″	10″ /5 color (Closed-loop control required when selecting 0.001° CNC rotary table)
Air pressure	MPa.	0.5~0.7 (flow:800L/min)
Electricity demand	KVA	40 (three-phase AC 380V± 10%,50Hz± 1Hz)
Machine size (L×W×H)	mm	3400*5300*2900
Machine weight	kg	12500

1.4 MAIN ACCESSORIES

No.	Name	Qty.	Manufacturer	Remark
1	CNC Control System	One set	FANUC	FANUC-Oi-MF plus
2	Spindle servo motor	One set	FANUC	26KW
3	X,Y,Z servo motor	Each for one set	FANUC	3.0-3.0-3.0
4	Spindle front bearing	One group	FAG	NSK bearing P4 step BT50- 190
5	Spindle rear bearing	One group	FAG	NSK bearing P4 step BT50- 190
6	X,Y,Z axis bearing	Each for one set	NSK	XY axis 4012,Z axis 4550
7	X,Y,Z axis ball screw	Each for one set	HIWIN/PMI	X: Ø40× 12,Y: Ø40× 12, Z:Ø50× 12 customize C3 steps
8	X axis liner guideway	Two pcs	THK	Heavy Duty Roller
9	Y axis liner guideway	Two pcs	THK	Heavy Duty Roller
10	Z axis liner guideway	Two pcs	THK	Heavy Duty Roller
11	Spindle Unit	One set	Taiwan
12	Tool magazine	One set	Taiwan
13	Cutting fluid pump	One set	Lingxiao
14	Automatic lubrication system	One set	Japan
15	Knife cylinder assembly	One group	Sino-Japanese joint venture
16	Main pneumatic components	One set	AirTAG
17	Main electrical components	One set	Schneider
18	Main drive toothed belt	One group	GATES
19	X,Y,Z shaft coupling	Each for one set	NBK
20	Heat exchanger	One set	Chinese

1.5 STANDARD ACCESSORIES

1	30 tool magazines	6	Tri-color warning light	11	Rigid tapping	16	Portable chip blowing air gun
2	Workpiece Cooling System Spindle cooling	7	Machine cleaning water gun	12	Fully enclosed protective cover	17	Large flow chip flushing device
3	Automatic lubrication system	8	Spindle output water	13	Foundation screws and pads	18	Spindle nose labyrinth dust blower
4	Spindle air curtain dustproof system	9	Electric cabinet heat exchanger	14	Tools and Toolboxes		Oil filter
5	Working light	10	Network transmission and CF card function	15	Double helix cutter and chain plate cutter		Transformer

After Sales Service
2. SERVICE
2.1TRAINING AND INSTALLATION
2.2 AFTER SALES 1. From the BL date, the manufacturer will implement the "three guarantees" service for the product for one year (if the user causes damage due to his own reasons, an appropriate cost fee will be charged)
2.When the machine tool breaks down, the manufacturer can accurately judge the cause of the failure and deal with it immediately after receiving the feedback information from the user; if the cause cannot be determined at that time, a reply will be given within 24hours

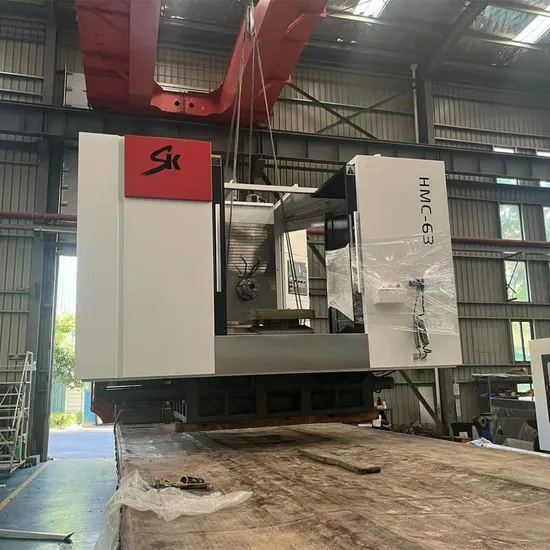

2.3 Package
FACTORY WORKSHOP
3.FACTORY WORKSHOP
Company Profile
4.Company strength
4.1 General situation
Anhui Gaochuan Sikai CNC Equipment Manufacturing Co, Ltd. (formerly Nanjing Sikai)/NanJing Newsiv Equipment Co.,Ltd was founded in 1993 and relocated to Ma'anshan, Anhui In 2021.
It is a high-tech enterprise specializing in the design and manufacturing of CNC machine tools. The company's main products have compteteiy independent intellectual property rights, and multiple series of products have obtained Jiangsu Province High tech Product Certificates.
The enterprise has been recognized as a high-tech enterprise. Since joining China Transmission Group in 2010, the company has been striving for excellence and self-improvement On the one hand, with the strong support of the group, we cooperate with well-known foreign machine tools and Taiwanese enterprises, aiming for the quality and performance of international mid ...
4.2 Participate in an exhibition
Certifications
4.3 certifications
FAQ

FAQ
1	Is your company a factory or trading company ? We are factory .It is located in JiangSu Province.
2	Can we visit your factory before order? Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
3	What's the MOQ ? One set only.
4	Do you have professional engineers ? Yes.we have professional engineers and designers. We can provide OEM services.
5	Do you have CE certificate? Yes , we have CE certification, machine quality is guaranteed.
6	What is your payment terms ? 30% T/T in advance , 70% T/T before shipment, Meanwhile it can be discussed according to your situation.
7	What is your delivery time ? Our fastest delivery time for 1~5 sets will be within one month for standard model. Special model will depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
8	How is the warranty? We will supply standard ports and accessories with our machine . Within one year after receiving our machines, in the right operation, if there are any damaged parts or accessories, we will replace them by air or express immediately free of charge.
