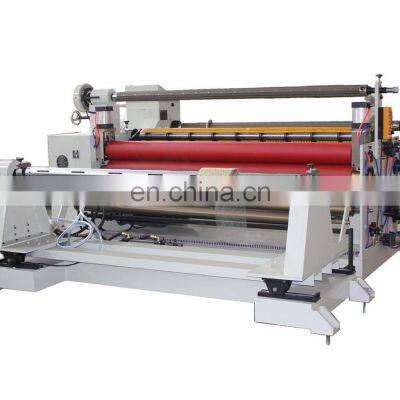

plastic film and paper Slitting Rewinding Machine

Product Description

Product Description
plastic film and paper slitting rewinding machine Functional characteristics:Electric Laminating machine Complex for the sticking of material withou tbase glue and other materials .This machine is applicable to the Laminating of material of wide breadth ,and characterized by automatic powder brake controlling over the unreeing tension ,frequency change stepless regulation ,and magnetic power braken's constant torque controlling over the winding ension ,and therefore ,it is fast in lamination speed and simple to operate,hence a necessary equipment matching the lable printing machine. Main technical parameters: modelDP-650DP-1300DP-1600max feeding width(mm)65013001600main engineer power(kw)333speed(m/min)606060size(mm)1400*1200*13001650*1450*13001650*1450*1300weight(kg)80015001800feeding diameter(mm)600600800rewinding diameter(mm)450450450precision(mm)+/_0.1+/_0.1+/-0.1power(v)220v50hz380v50hz380v50hz 1. Technique DataMachine Speed : 110m/minMax material feeding width : 1800mmFeeding Diameter : 800 mmFilm Diameter : 400mmRewinding diameter : 450mmSlitting accuracy :±0.1mmVoltage:380V 50HZMain Motor Power :3kw (1 motor power) ( if running reversible need 2 motor) Total Power: 8kw Raw material Max hole diameter: 3”compress air source:(0.4-0.6)Mpa(customer-owned)Finished products Min. Width by standard slitting :25MMMain Machine size :2600*2300*1300mm Feeding Machine size : 2150*880*780mm Weight : 2.5T 2, Feeding DeviceFeeding Air Expansion Shaft (3”Pad Shaft) 2 Setsmagnetic powder brake 100N 1 Set Film release Magnetic Powder Brake 50N 1 SetFeeding Tension Control System 2 SetsCorrection System(Taiwan Gas and Liquid correction) 1 set 3, Renewal Material Laminating Part :Upper Laminating COTS Dia.135(PU) 1 SetUnder Laminating COTS Dia.135(PU) 1 SetAluminum guide roller(hard Oxygen surface treatment) 1 SetPressure roller pneumatic type top and bottom system adjustable : 1 Setelectronic counter 1 SetFilm Release tensioning adjustable system 4. Slitting PartUpper Circular knife shaft Dia 65(upper slitter Dia 110*75*1) 1 SetUnder Circular knife shaft Dia 65(upper slitter Dia.90*65*10)1 setManual fine-tuning lock device5. Rewinding endReceiving Flatulence axis(3″Pad shaft) 2 Setsmagnetic powder clutch 50N 2 Setshe receiving tension control system 2 SetsMain electrical machine (double motor) 1 SetMain Power inverter 1 SetWinding shaft and pneumatic up and down device(Rise,descend ,support) 1 Set6. Operator control box 1 Set7.Electric control panel 1 Set8. Function Profilefrequency control of motor speed, operation more easy. Control more accurate.Double receiving roller center take up , rewindingDouble receiving magnetic powder tension independent control, can rewinding at the same time , and also can individual useElectronic meter counter with the function of automaticly count the meter and setting length, automatic stopping ,accuracy 0.01, error ±0.15MIndependent fan waste discharge. If Double motor configuration,The scroll of rewinding can be positive and negative transfer . 9. Slitting partSlitting up and down cutter 10 setsCircle tool apron 10 setsSlitting up and down cutter gasket:1/2/5/20/30/50 each 13 pieces,10MM 12pcs10. FOB SHANGHAI PRICE : USD18500 / SET (for 1800 width)10. Packing : Wooden case packing11. Size : 2400X3000X1300mm Weight : 1500KG12, Pictures
