Double Layer Roofing Corrugated Metal Roof Sheet Making Machine

Product Description

Product Description
The double layer roll forming machine can produce two types of metal roof tiles, including trapezoidal sheet, corrugated sheet and glazed tile. The applicability of metal roof tiles is very wide, residential areas, hotels, personal buildings, tourist attractions, steel structure, wood structure, concrete structure of the building can be used.

Feeding device
With handwheels for easy adjustable
Rollers
With handwheels for easy adjustable
material: grade 45# steel
treatment process: CNC precision machined, heat treatment hard chrome coated; And at last mirror-surface treatment for anti-rust, long service life and beautiful.

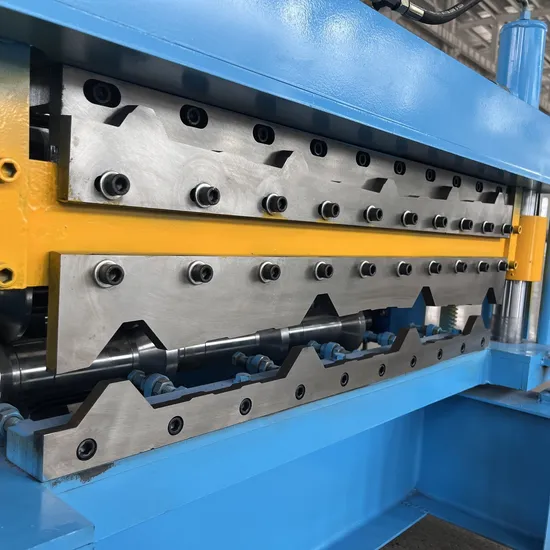

Hydraulic cutting device
Driving by hydraulic power.
With two pillars support to make the cutting processing more stable, no shake.
PLC
Adopted touch screen for easy operation.Adopted aviation plugs for easy installation.


Product Parameters

Configurations	manual decoiler, guiding platform,main machine of roll forming, cutting device, electric motor,hydraulic station, PLC control system
Material	Raw material	PPGI, GI Sheet
	Coil width	1000mm/1200mm/1220mm/1250mm
	Thickness	0.20mm-0.60mm
Manual Decoiler	Inner Diameter:450-550mm	Expand by manual
	Outer Diameter: max 1500mm
	Max Coil width:1000mm
	Capacity: 5T
Main Machine	Number of Forming steps	15 steps -18 steps
	Shaft diameter	70mm solid shaft
	Design type	Middle plate welded
	Machine frame	350# H steel welded
	roller material	45# steel, surface hard chromium plating.
	shaft material	45# steel
	Work speed	10-15m/min
	Transport	By chains
	Power of main machine	5.5 kw SHANGHAI LICHAO
	Type of cutting	Hydraulic guide pin cutting
	Cutting tolerance	±1mm
	Cutter	Gcr12MOV
	Cutter quantity	1 set
	Working pressure	20MPA
Hydraulic system	Hydraulic oil	46#
	Hydraulic power	3kw
	Cutting length	As required
	No distorting or wasting. High level safety factor.
Control Device	PLC control	PLC DELTA, TAIWAN
	PLC language	English and Chinese
	Transducer	7.5KW Delta, TAIWAN
	Touch screen	7 Inch large screen, DELTA, TAIWAN
	Function	Automatic length and quantity measurement
	coder	Omron, JAPAN
	Other electrical device	International brand
	Weight	About 5.5 tons
	Dimension	About 6500*1500*1700mm L*W*H
	Main body color	Yellow and blue
	Voltage	380v/50hz/3ph

Common Profile We Make
Corrugated Roof Profile Drawings
Trapezoidal Roof Panel Profile Drawing
Glazed Tile Profile Drawings
Features at a Glance
Our Double Layer Roofing Sheet roller forming machines can be customized according to the specific requirements of our customers to ensure that they perform well in terms of stability and production efficiency. Shuoen Machinery is known for offering competitive prices and excellent product quality.
Flow chart: Decoiler--Manual prectting--Material Guiding--Roll forming M/C--Hydraulic System--Post Cutting--Exit Rack
