Laser Cutting Control System Fscut3000s High Power Intelligent Perforation

Laser Cutting Control System Fscut3000s High Power Intelligent Perforation

US$4,576.00
1-2 Pieces
US$4,167.00
3+ Pieces

Basic Info.

Model NO.
FSCUT3000S+BCS100
Application
Petroleum Machinery Manufacturing, Aerospace Industry, Automotive Industry, Shoemaking Industry
Cooling System
Air Cooling
Technical Class
Pulse Laser
Applicable Material
Metal
Structure Type
Desktop
Laser Classification
Free Electron Laser
Laser Technology
Laser Flame Cutting
After-Sales Service Provided
Free Spare Parts
Machinery Test Report
Available
Marketing Type
New Product
Key Selling Points
Competitive Price
Transport Package
Box
Specification
10kg
Trademark
tangcheng
Origin
China
HS Code
2200
Production Capacity
500sets Pet Month

Product Description

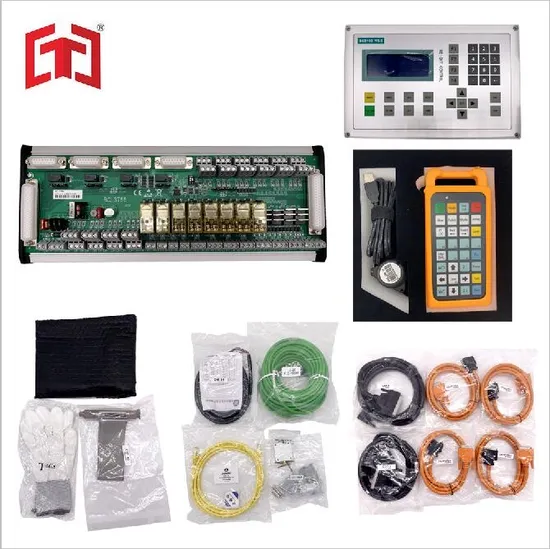

FSCUT3000S+BCS100 cypcut control system for laser cutting machine

1. Functions for FSCUT3000S fiber laser cutting control system:
For sheet metals cutting, such as carbon steel/mild steel, stainless steel, aluminum, copper, etc.

2. Consist of FSCUT3000S fiber laser cutting control system.
Technical Parameter
Model
FSCUT3000S
Software
TubePro tube cutting software/ CypCut sheet cutting software
Control card
BMC1805
I/O terminal board
BCL3766
Motor control
X/Y1/Y2/W axis pulse output, heighest frequency 3MHz
X/Y1/Y2 axis access encoder feedback, highest sampling frequency 10MHz
W axis port can be assigned to rotary axis or autofocus unit
Dedicated inputs
8 limit inputs:Positive and negative limit for X/Y1/Y2/W axis
4 origin inputs:X / Y1 / Y2 / W axis origin
Common inputs
15 inputs: low-level active by default option, supports NO and NC mode. IN3~IN15 can switch between active low and active high
Software
CypOne Laser Cutting Control Software
Interface type
32-bit PCI bus, 132MB/S
Power supply
24V DC/2A
Work environment
Temperature: 0-55ÂșC
Humidity: 5%-95%(no condensation)
Dedicated outputs
2 DA outputs: 0~10V,50mA
1 PWM output: 5V/24V for option, precision of 50KHz (0.1%)
Common outputs
8 relay output, load capacity 250V AC/5A, 30V DC/5A
12 thyristor output, load capacity DC 24V/500mA

Product Advantage
Cutting technique
Support offset tube center error in production to improve through holes cutting precision.
Support steel channels cutting.
Suppport seperate technique for corner cutting.
Support auto loading/unloading process, cycle production and automatic tube feeding.
Support all functions of FSCUT2000 system.
Control performance
Open-loop control system, Friendess 5th generation motion control algorithms.
Trajectory accuracy 0.02mm, positioning accuracy 0.001mm, repeatability 0.003mm.
Access encoder feedback in real time, to compare command and machine toolpath.

Product Application
1).Cutting technique
1.Support offset tube center error in production to improve 2.through holes cutting precision.
3.Support steel channels cutting.
4.Suppport seperate technique for corner cutting.
5.Support auto loading/unloading process, cycle production and 6.automatic tube feeding.
7.Support all functions of FSCUT2000 system.
2).Control performance
1.Open-loop control system, Friendess 5th generation motion control algorithms.
2.Trajectory accuracy 0.02mm, positioning accuracy 0.001mm, repeatability 0.003mm.
3.Access encoder feedback in real time, to compare command and machine toolpath.
