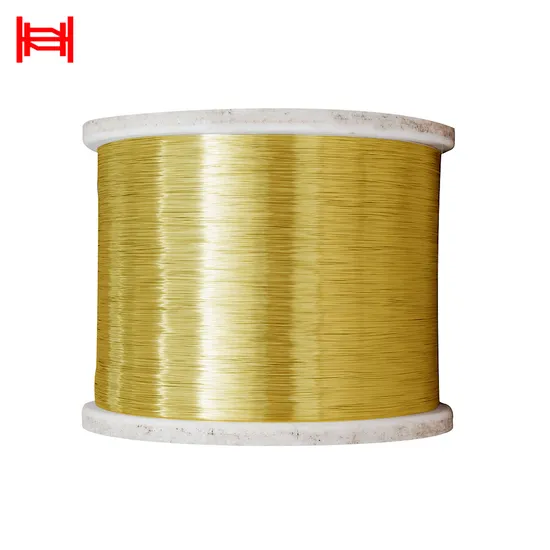

C22000 H90 High Copper Alloy Brass Wire for Etching Parts

Product Description

Product Description Brass Wires:
Brass wire is a type of copper wire, main components include copper, zinc, tin, nickel, and silver, also known as zinc copper alloy wire. The internal structure of the wire is made of high-quality brass, with high strength, compact structure, good corrosion resistance, cutting, drilling and other excellent machining performance, which can greatly improve the conductivity of the brass wire.
We can produce a variety of special specifications of copper alloy wire, such as C21000 brass wire, C22000 barss wire, C23000brass wire, C24000 brass wire, C26000 brass wire, C27000 brass wire, C27200 brass wire, C28000 brass wire, etc. Packing and specification accept customization.
Product Advantage:
1. Excellent conductivity, ductility, and thermal conductivity, with a wide range of application scenarios.
2. With good cold processing plasticity, elasticity and high strength.
3. Suitable to be made into electronics components, widely used in the manufacturing of wires, cables, brushes, magnetic instruments and meters that require protection against magnetic interference, such as compasses and aviation instruments, etc.
4. The mechanical performance can be customized privately, ensuring stable and reliable application under different conditions.
Product Parameters

Chemical Compositiom
Alloy No.			Chemical Compositiom(wt.%)
			Zn		Cu	Fe(Max.)	Pb(Max.)	Other Elements(Max.)
1	GB	H95	Remainder		94-96	0.05	0.05	0.30
	ASTM	C21000	Remainder		94-96	0.05	0.05	/
	JIS	C2100	Remainder		94-96	0.05	0.03	/
	EN	CuZn5	Remainder		94-96	0.05	0.03	0.37
2	GB	H90	Remainder		89-91	0.05	0.05	0.30
	ASTM	C22000	Remainder		89-91	0.05	0.05	/
	JIS	C2200	Remainder		89-91	0.05	0.05	/
	EN	CuZn10	Remainder		89-91	0.05	0.03	0.37
3	GB	H85	Remainder		84-86	0.05	0.05	0.30
	ASTM	C23000	Remainder		84-86	0.05	0.05	/
	JIS	C2300	Remainder		84-86.9	0.05	0.05	/
	EN	CuZn15	Remainder		84-86	0.05	0.03	0.37
4	GB	H80	Remainder		78.5-81.5	0.05	0.05	0.30
	ASTM	C24000	Remainder		84-86	0.05	0.05	/
	JIS	C2400	Remainder		84-86.9	0.05	0.05	/
	EN	CuZn20	Remainder		79-81	0.05	0.03	0.37
5	GB	H70	Remainder		68.5-71.5	0.10	0.03	0.30
	ASTM	C26000	Remainder		68.5-71.5	0.07	0.05	/
	JIS	C2600	Remainder		68.5-71.5	0.05	0.05	/
	EN	CuZn30	Remainder		69-71	0.05	0.03	0.37
6	GB	H65	Remainder		63-68.5	0.07	0.09	0.45
	ASTM	C27000	Remainder		63-68.5	0.09	0.07	/
	JIS	C2700	Remainder		63-67	0.05	0.05	/
	EN	CuZn36	Remainder		63.5-65	0.05	0.03	0.37
7	GB	H63	Remainder		62-65	0.15	0.08	0.50
	ASTM	C27200	Remainder		62-65	0.07	0.07	/
	JIS	C2720	Remainder		62-64	0.07	0.07	/
	EN	CuZn37	Remainder		62-64	0.10	0.10	0.53
8	GB	H62	Remainder		60.5-63.5	0.15	0.08	0.50
	ASTM	C28000	Remainder		59-63	0.09	0.07	/
	JIS	C2800	Remainder		59-63	0.10	0.07	/
	EN	CuZn40	Remainder		59.5-61.5	0.20	0.30	0.75

Mechanical Properties
Alloy No.			Temper Designation		Diameter	Tensile strengh		Elongation
					MM	Mpa		%
1	H95 C21000 C2100 CuZn5		O60(annealed)		0.05-12	≥220		≥20
			H02 (halfr-hard) 1/2H		0.05-12	≥340		/
			H04 (hard) H		0.05-12	≥420		/
2	H90 C22000 C2200 CuZn10		O60(annealed)		0.05-12	≥240		≥20
			H02 (halfr-hard) 1/2H		0.05-12	≥385		/
			H04 (hard) H		0.05-12	≥485		/
3	H85 C23000 C2300 CuZn15		O60(annealed)		0.05-12	≥280		≥20
			H02 (halfr-hard) 1/2H		0.05-12	≥455		/
			H04 (hard) H		0.05-12	≥570		/
4	H80 C24000 C2400 CuZn20		O60(annealed)		0.05-12	≥320		≥20
			H02 (halfr-hard) 1/2H		0.05-12	≥540		/
			H04 (hard) H		0.05-12	≥690		/

5	H70 C26000 C2600 CuZn30		O60(annealed)		0.05-0.25	≥375		≥18
					>0.25-1.0	≥355		≥25
					>10-2.0	≥335		≥30
					>2.0-40	≥315		≥35
					>4.0-6.0	≥295		≥40
					>6.0-13	≥275		≥45
					>13-18	≥275		≥50
			H00 (eighth-hard) 1/8H		0.05-0.25	≥385		≥18
					>0.25-1.0	≥365		≥20
					>10-2.0	≥350		≥24
					>2.0-40	≥340		≥28
					>4.0-6.0	≥330		≥33
					>6.0-8.5	≥320		≥35
			H01 (quarter-hard) 1/4H		0.05-0.25	≥400		≥10
					>0.25-1.0	≥380		≥15
					>10-2.0	≥370		≥20
					>2.0-40	≥350		≥25
					>4.0-6.0	≥340		≥30
					>6.0-8.5	≥330		≥32
			H02 (half-hard) 1/4H		0.05-0.25	≥410		/
					>0.25-1.0	≥390		≥5
					>10-2.0	≥375		≥10
					>2.0-40	≥355		≥12
					>4.0-6.0	≥345		≥14
					>6.0-8.5	≥340		≥16
			H03 (three-quarter-hard) 3/4H		0.05-0.25	540-735		/
					>0.25-1.0	490-685		/
					>10-2.0	440-635		/
					>2.0-40	390-590		/
					>4.0-6.0	345-540		/
					>6.0-8.5	340-520		/
			H04 (hard) H		0.05-0.25	735-930		/
					>0.25-1.0	685-885		/
					>10-2.0	635-835		/
					>2.0-40	590-785		/
					>4.0-6.0	540-735		/
					>6.0-8.5	490-685		/
			H06 (extra-hard) EH		0.05-0.25	≥800		/
					>0.25-1.0	≥780		/
					>10-2.0	≥750		/
					>2.0-40	≥720		/
					>4.0-6.0	≥690		/

6	H65 C27000 C2700 CuZn36		H03 (three-quarter-hard) 3/4H		0.05-0.25	540-735		/
					>0.25-1.0	490-685		/
					>10-2.0	440-635		/
					>2.0-40	390-590		/
					>4.0-6.0	375-570		/
					>6.0-13	370-550		/
			H04 (hard) H		0.05-0.25	685-885		/
					>0.25-1.0	635-835		/
					>10-2.0	590-785		/
					>2.0-40	540-735		/
					>4.0-6.0	490-685		/
					>6.0-13	440-635		/
			H06 (extra-hard) EH		0.05-0.25	≥830		/
					>0.25-1.0	≥810		/
					>10-2.0	≥800		/
					>2.0-40	≥780		/
7	H63 C27200 C2720 CuZn37 H62 C28000 C2800 CuZn40		O60(annealed)		0.05-0.25	≥360		≥8
					>0.25-1.0	≥350		≥12
					>10-2.0	≥340		≥18
					>2.0-40	≥330		≥22
					>4.0-6.0	≥320		≥26
					>6.0-13	≥310		≥30
			H00 (eighth-hard) 1/8H		0.05-0.25	≥380		≥5
					>0.25-1.0	≥370		≥8
					>10-2.0	≥360		≥10
					>2.0-40	≥350		≥15
					>4.0-6.0	≥340		≥20
					>6.0-13	≥330		≥25
			H01 (quarter-hard) 1/4H		0.05-0.25	≥370		≥6
					>0.25-1.0	≥360		≥10
					>10-2.0	≥350		≥12
					>2.0-40	≥340		≥18
					>4.0-6.0	≥330		≥22
					>6.0-13	≥320		≥28
			H02 (half-hard) 1/4H		0.05-0.25	≥430		/
					>0.25-1.0	≥410		≥4
					>10-2.0	≥390		≥7
					>2.0-40	≥375		≥10
					>4.0-6.0	≥375		≥12
					>6.0-13	≥350		≥14
			H03 (three-quarter-hard) 3/4H		0.05-0.25	590-785		/
					>0.25-1.0	540-735		/
					>10-2.0	490-685		/
					>2.0-40	440-635		/
					>4.0-6.0	390-590		/
					>6.0-13	360-560		/
			H04 (hard) H		0.05-0.25	785-980		/
					>0.25-1.0	685-885		/
					>10-2.0	635-835		/
					>2.0-40	590-785		/
					>4.0-6.0	540-735		/
					>6.0-13	490-685		/
			H06 (extra-hard) EH		0.05-0.25	≥850		/
					>0.25-1.0	≥830		/
					>10-2.0	≥800		/
					>2.0-40	≥770		/

Click to View More Copper Wires→
Application The products are widely used in the industries of carbon film resistors, metal film resistors, metal oxide film resistors, fuse resistors, wire-wound resistors, glass glaze resistors, piezoresistors, thermistors, non-inductive resistors, photoresistors, thermal fuses, current fuses, capacitors, jumper wires (jumpers), inductors, transformers, diodes, high-temperature wires, marine cables, triple insulated wires, gas appliance temperature sensors, welding wires, braided thread, grounding rod, flexible flat cables (FFC) and so on.
Company Profile Jiangsu Jiahua Metal Wire Co., Ltd. is located in the hometown of the historical and cultural celebrity, Zheng Banqiao, i. e. Xinghua City in the central of Jiangsu. The company, founded in 2009, is engaged in professional production of high-quality and high-demand tinned (electroplated and hot-DIP) copper wires, tinned (electroplated and hot-DIP) copper clad steel wires, tinned (electroplated and hot-DIP) alloy wires, jumper wires (jumpers) and bare copper wires for electronics industry as well as high-standard and special-requirement stranded tinned wires, bare stranded copper wires, stranded plated wires for wire and cable industry. The company inputs a total investment of RMB 5 million and covers a floor area of about 20, 000 square meters and a construction area of 5, 000 square meters. The specifications of products vary from 0.03mm to 3mm, and the packaging modes include PP wound packages, vacuum-chamber packages, PVC shaft-mounted packages, steel-plate packages, steel-rack coiling packages, tight coiling packages, flexible and various, to fully meet the production demand in the industry. Currently, the company's annual production capacity is 3600 tons of tinned copper wires, 1200 tons of tinned copper clad steel wires, 1200 tons of bare copper wires and 800 tons of alloy copper wires.
The company implements the ISO9001, ISO14001, ISO45001 Management System and adheres to the " quality policy of reasonable planning, standard management; Quality first, customer upmost; Continuous improvement, sustainable development", to constantly improve product quality and increase market competitiveness to achieve sustainable development and sustainable development.
Workflow The production equipment adopted by the company are redesigned and developed on the basis of absorbing the advantages of the advanced equivalent equipment of Japan, Taiwan and Germany in combination with twenty years of work experience, to ensure the excellence and stability of resistance to high temperature, oxidation, wetting and salt spray and other performances of the products. Thus the equipment is advanced, efficient and precise.
Our Partners The customers are distributed in Yangtze River Delta, Pearl River Delta, Bohai Bay area, Haixi Area, the Southwest and Guanzhong Area. Our products are also directly exported to countries and regions such as the United States, Mexico, Brazil, Argentina, Germany, France, Poland, Portugal, Italy, Australia, South Korea, Japan, Southeast Asia, South Asia, the Middle East, and Africa.
Packaging & Shipping The packaging methods are PP barrel, carton vacuum packing, PVC shaft packing, iron tray packing, iron frame closing packing, tight closing packing, which are flexible and diverse and can fully meet the production needs of customers.
