Feed Plant Equipment Complete Feed Production Line Equipment, Poultry Feed Production Line

Product Description

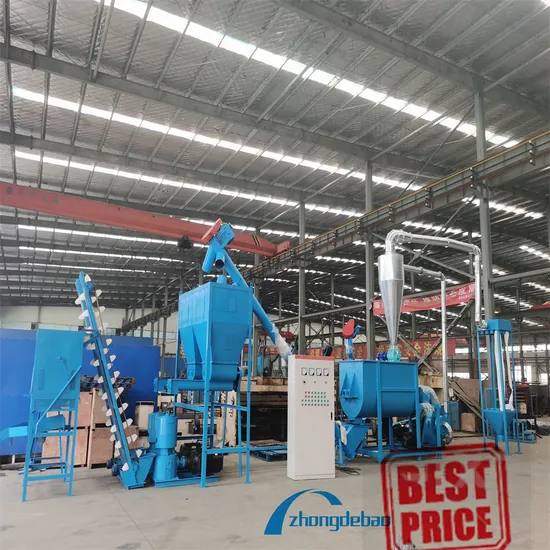

Animal Feed pellet Production Line:

It can combine a set of feed pellet production line according to user's demand to realize efficient and fully automatic production, automatic feeding, rapid feeding, smooth discharging and even mixing, automatic heating, curing and forming in the pelleting process. Grain length can be adjusted according to the needs of users, users can according to the different growth stages of animals, different physiological needs, different production uses of nutrition needs, according to the scientific formula of a variety of different sources of feed, in a certain proportion of evenly mixed, and according to the provisions of the process of production.
1000KG/H Concentrate Feed Production Line
1000KG/H Cattle And Sheep Feed Production Line
500KG/H Cattle And Sheep Feed Production Unit
Flow Chart Of Feed Production Line:

No.	Item
101	crushing and grinding machine
201	vertical mixer
301	raw material converyor
302	material storage machine
304	pellet machine
401	Rotary screen (cooling system )
501	the belt conveyor
502	packing part

Working Principle:

The complete set of feed production line crushes various feed materials into powdery particles through the pulverizer, and sends them into the mixer through the cyclone dust collector and the air locker by the fan. The powder that does not need to be pulverized can be directly sent into the mixer through the screw conveyor. All kinds of raw materials are mixed evenly in the mixer through the double screw belt, and then enter the silo through the screw elevator, and the materials in the silo are conveyed to the granulator by the adjustable speed feeder, and the finished granules are cooled and powdered by the cooling and screening machine. After the material is screened, it enters the packaging machine through the belt conveyor, and the set weight is installed to measure and pack the packaging bag and seal the packaging bag to complete the entire production process.
Application:
Hot Sale Main Types of Animal Feed Pellet Machine:1. Flat Die Feed Pellet Press: There are different power options such as electric / motor, diesel engine, gasoline engine (gas motor) and PTO (power take off) type pelletizer. It is the best choice for small poultry feed mill or making your own feed pellets at home use or farm use. 2. Ring Die Feed Pellet Mill: Heavy duty feed making machine for large scale feed production.
3. Fish Feed Extruder Machine: It is also called floating fish feed machine, which is specially designed for making floating fish feed pellets, and slow-sinking feed. (floating fish feed making machine, fish pellet making machine)
4. Complete Feed Milling Plant: Offer both mini/small animal feed plant or movable/portable/mobile small feed mill plant (800kg/h~1000kg/h for small business) and customzied full pellet line for industrial turnkey fish/cattle/poultry feed plant, including both mash feed, pellet feed and feed crumbles. The capacity of our animal feed production line ranging from 1ton to 100 tons per hour (tons/hr) for fully pellet feed production line.
Why Choose Us:
ZhongDeBao Company is a leading manufacturer of animal feed processing machines, complete animal feed mill plant and other related equpment for manufacturing poultry feed, cattle feed, fish feed, etc. Over 10 years of experience in equipment manufacturing and project constraction has proved our strong ability and great product quality.
Our Customers:
Packing & Transportation:
FAQ:
Q1:What's the delivery method? Normally by shipping line packed by wooden case in 20GP or 40 Feet container. Air express also available. Q2: What's the delivery time? Within 10-15 days when we got the 30% deposit . Q3: What's the payment term? T/T, Western Union, L/C, etc Trade Assurance of ****** is highly recommended Q4: How long is the warranty period? 1 year. Free spare parts for replacement. Life-time after-sale service. Technicians stand by 24/7 to offer support Q5: How do I operate the machine? 1) We offer the best operation manual with the machine. 2) Specific drawings or teaching videos are offered, if necessary Q6: How do I get the machine? 1) Contact me for latest prices. We confirm the products details. 2) We send you the PI with our bank account 3) We prepare the products after we get your advanced deposit 4) We send you photos of the machine before and after packing 5) You pay the balance, we deliver the machine 6) We send you the B/L and other papers, keep track till you get the machine
