U Frame Carbon Fiber Imaging Spinal Surgery Table

Product Description

Product Description Universal spine U frame system spinal surgery table for Spinal and Imaging Procedures HE-DGC with HE-608P
This table with full carbon fiber spine surgery system. U-shaped spine surgery system(docking type), specially designed to support various spine and imaging, can provide excellent patient fluoroscopy channel, and optimize the imaging effect of surgery. The 1070mm metal-free frame allows anterior, posterior, lateral, and intraoperative tilted imaging views. U-shaped spine surgery system (butt type) adopts an open frame design and can complete imaging at any angle with most imaging equipment today.
Detailed Photos Table Advantages and characteristics
*High-precision imported linear guide rails ensure the stable operation of the operating table;
*The bed body is made of a combination of aluminum alloy and 304 stainless steel, which is beautiful, strong, resistant to impact, damage and corrosion, and is more portable;
*The bed structure is completely modularized. For different types of operations, you only need to match the corresponding action modules;
*Spine surgery position frame, U-shape design, initial unobstructed fluoroscopy channel, combined with four-point positioning bracket, can reduce the compression of the patient's vena cava when applied to spinal surgery, minimize epidural venous bleeding, and improve the surgical site Visualization;
*The spine surgery posture frame has diversified applications. Through different optional components, it can be replaced with a professional orthopedic operating table, spine operating table, and imaging operating table with unique functions, and the imaging effect is optimized;
*Spine surgery posture allows anterior, posterior, lateral and intraoperative tilt, and can be used with most imaging equipment today to complete imaging at any angle.
*The operating table is equipped with a battery and a charging device to ensure that when the AC power supply is interrupted, the operation can be automatically continued with the backup power supply. It will automatically charge after the power cord is connected, and the power requirement is 220v 50Hz;
* Base brake device: electric operation method, which can firmly fix the bed;
*The T-shaped design of the base provides excellent foot space for the surgical team and a stable center of gravity. The height of the chassis is 95mm, which can be used with G-arm and X-ray machine.
*The shell is made of high-quality 304 stainless steel;
Spine System Advantages and characteristics
1. Benefits of U-shaped spine surgery bracket (butting type):
Excellent unobstructed spine passage, components can be combined and placed flexibly, meeting various needs of doctors/patients for surgery.
2. Open frame design: It can reduce the compression of the patient's vena cava and minimize the bleeding of the epidural vein; improve the visualization of the surgical site.
3. Trapezoidal carbon fiber tube frame: Compared with the rectangular carbon fiber tube, the imaging effect is optimized, and the shadow line generated by the vertical surface of the rectangular tube is eliminated when imaging up and down.
4. Diversified accessory system:
Doctors can choose appropriate accessories according to the needs of different operations to easily complete the placement and positioning of complex patient surgical positions.

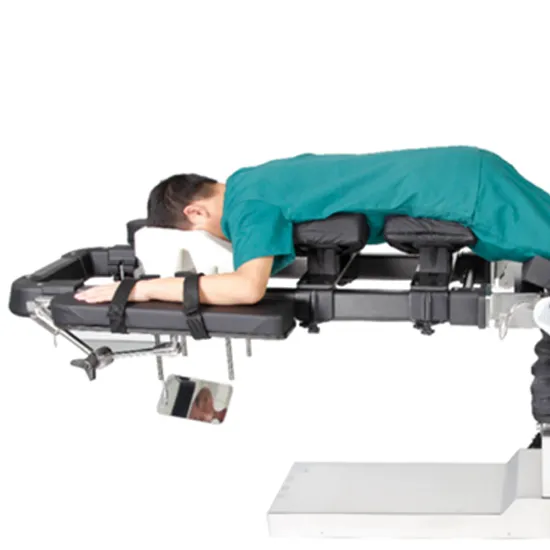

5. Advantages of prone position: Provide whole body support for patient positioning, adjustable four-point medical pad, provide comfortable positioning support for the patient.
Support for multiple operations
•Laminectomy
•stress reliever
• Spinal Fusion
• Osteotomy
• Posterior cervical approach
•Surgical correction of deformity
• Vascular Surgery
• Joint imaging
• Pain management
6. The purpose of the U-shaped spine surgery bracket (docking type) is to optimize the interaction between the operating table and today's imaging equipment (such as multi-row spiral CT, O-arm, G-arm, and C-arm technology) to make surgical imaging easier and Convenient.
7. The disposable latex headrest in the prone position can effectively protect the head and eyes of patients in the prone position, support the monitoring of the patient's facial state during anesthesia, and support the adjustment of height and angle.
8. Lightweight bed surface cover plate, installation is efficient and convenient, a variety of specifications are optional, can cover a piece separately, place the patient's leg, can also cover all the U-shaped spine surgery bracket, perform supine and lateral position surgery.
Product Parameters Technical Parameters

Length	2000mm
Width	520mm
Width (including side rail)	580mm
Longitudinal slide	300mm
Height adjustment	680mm-980mm
Trenlenburg/Reverse trenlenburg	30°/30°
Tilt left/right	20°/20°
Spine System up/down	75°/40°
Leg plate up/down	50°/90°
Leg plate outreach	180°

Standard Accessories

Mattress	1 set
Hand controller	1 piece
Waist support	2 pieces
Shoulder support	2 pieces
Arm plate	2 pieces
Leg holder	2 pieces
Anesthesia screen frame	1 piece
Clamp	2 pieces
Fixer	3 pieces
Spine System	1 set
Moving side rails	2 pieces

Hospital real photo
Certifications
Packaging & Shipping
Company Profile
Our Advantages
Contact Us!
FAQ
1. How are we going to install the equipment after purchasing?
We provide professional installation video to illustrate
2. How do you make sure that the product has high quality?
We have CE.and ISO 13485 certificates we also have a production inspection report before packing.
3. Can you put our logo on products?
Absolutely yes with detailed information such as logo we will show you pictures of your logo on the product before packing.
4. Do you accept OEM ( equipment manufacturer service)?
Yes! we accept any OEM service since we are a professional manufacturer of medical EQUIPMENT with about 10+year's of OEM experiences.
