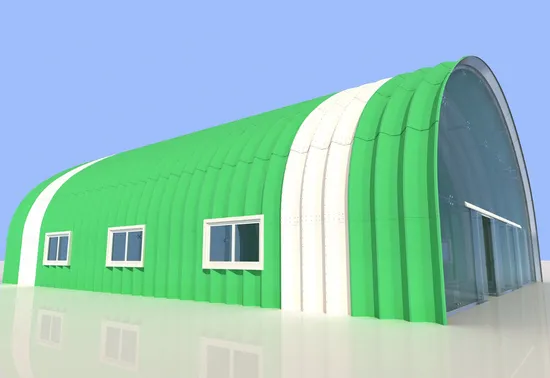

K Super Span Metal Building Construction Using Roofing Sheet Panel Machine
| US$40,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
FMS-span
Certification
CE, ISO
Condition
New
Customized
Customized
Usage
Roof, Wall, Floor
Transmission Method
Machinery
Thickness of Raw Material
0.8-1.5mm
Material Width
914mm;
Effective Width
610mm
Main Motor Power
18.5kw
Total Weight
About 9000kg
Transport Package
Naked with Plastic Film
Specification
9600mm* 2250mm * 2300mm
Trademark
FMS
Origin
China
HS Code
84552210
Production Capacity
50sets/Month
Packaging & Delivery
Package Size
960.00cm * 225.00cm * 230.00cm
Package Gross Weight
9000.000kg
Product Description
| 10. Technique parameters of the main roll forming machine The size of the production line: 9600mm* 2250mm * 2300mm; Total Weight: about 9000KG; Main Motor Power: 18.5KW; Forming power is 7.5kw; Bending power is 4.0kw; Cutting power is 4.0kw; Conical power is 3.0kw; Working Speed: Straight sheet: 15m/min; Arch sheet: 13m/min; Sewing: 6m/min; Material of rollers: 45# steel, quenched HRC 58-62; Material of roller shafts: 45# steel, quenched HRC 58-62; Material of cutting blade: Cr12 steel (Taiwan Airline Technique); Step of rollers: 13 steps; Span: 10-36m; Operating factor of the panel: 67%; The depth of the groove: 203mm; Gear/Spoket driving: 13 stations to form; Type of cutting: Roll-formed and length-set cutting; Standard:220V/50HZ/3PHASE; Double axles, 8 tyres. |
1. Guarantee
In correct operation and maintenance, the machines are 12 months quality guarantee from time of loading, life guarantee repair; within quality guarantee period, except for failures caused by human error, spare parts will be provided freely; after the quality guarantee period, only charge the cost of the spare parts. Free technical supporting and maintenance consulting in lifetime.
2. Installation
If necessary, we can send one technician to your factory to install the machine; you need assist our technician to get the visa and pay for the two-way flight tickets, local accommodation (at least three-star hotel with air condition), food, visa cost. And you need pay 200USD/day for technician extra. The total time will be caculated as per the time that shown on the fright tickets when our technician leaves China and arrives back to China.
