USB C-Type Female Connector, 16pin, Tid No.: 4913, Current Rating: 5A Max.

USB C-Type Female Connector, 16pin, Tid No.: 4913, Current Rating: 5A Max.

US$0.30
650-6,499 Pieces
US$0.28
6,500-64,999 Pieces
US$0.26
65,000-649,999 Pieces
US$0.20
650,000+ Pieces

Basic Info.

Model NO.
UTC048-GK5-HR
Degree of Innovation
Innovative
Applicable Brands
Sonny, Android, iPhone, All Type C Interfaces
Type
USB Charger
Certification
ISO14001/ISO9001/ISO13485/IATF16949/QC080000
Contact Current Rating
5A Max.
Durability
10, 000 Cycles Min
Insertion Force
5-20n
Extraction Force
8-20n
Operating Temperature
-30ºC~+85ºC, 85% Rh Max
Storage Temperature
-40ºC~+85ºC, 85% Rh Max
Tid No.
4913
Contact Resistance
0.04 Ohm Max.
Product Weight
0.91g
Weight Per Pack
0.60kg
Weight Per Carton
6.60kg
Carton Size
340mm*340mm*400mm
Minimum Packaging Quantity
650PCS
Way of Packing
Tape & Reel
Welding Mode on PCB
SMT
Transport Package
65opcs/Reel, UPS/DHL/Sf-Express
Specification
11.07*9.58*2.56mm
Trademark
PALCONN
Origin
China
HS Code
8473309000
Production Capacity
900000PCS/Month

Product Description

Detailed Photos

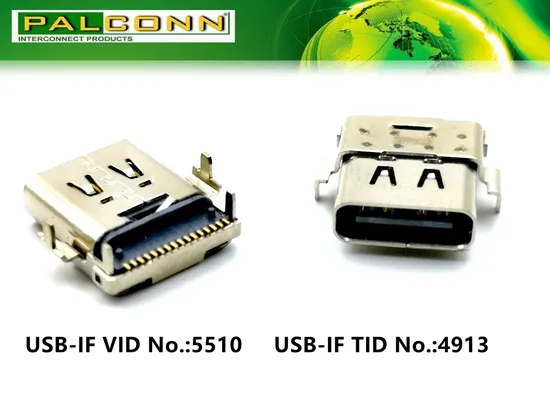

Product Description USB2.0 Type C Female Connector, 16PIN SMD
SHELL MATERIALS: STAINLESS STEEL
MIDDLE CONTACT MATERIALS: STAINLESS STEEL
HOUSING MATERIALS: THERMOPLASTIC. UL94-V0
CONTACT MATERIALS: HIGH-CONDUCTIVITY COPPER ALLOYS
LOW LEVEL CONTACT RESISTANCE: 0.04 ohm max.
INSULATION RESISTANCE: 100M ohm min.
DIELECTRIC WITHSTANDING VOLTAGE: 100 VAC
CONTACT CURRENT RATING: 5A max
INSERTION FORCE: 5-20N
EXTRACTION FORCE: 8-20N
DURABILITY: 10,000 CYCLES
IR REFLOW CONDITION PEAK TEMPERATURE: 260ºC-10s

1, The structural dimensions, please refer to the drawings:
2, USB-IF TID Certification
3, Electrical parameters,
3.1. Materials:
Shell: Stainless Steel
Middle Contact: Stainless Steel
Housing: Thermoplastic UL94-V0. Black
Conntact: High-conductivity copper alloys
3.2. Plating:
Connect: 80u" min. Nickel underplating Overall
Plated cold 30u" min. on contact area
or reference part no. code
plated Au 1u" min. on solder area
Shell: plated Nickel
3.3. Electrical Characteristics:
Low level contact resistance: 40mΩ max.
Insulation resistance: 100MΩ min.
Dielectric withstanding voltage :100V AC
Contact Current Rating: 5A Max.
3.4. Mechanical Characteristics:
Insertion Forec: 5~20N
Extractiong Forec: 8~20N
Durability :10,000Cycles min.
3.5. IR Reflow Condition Peak Temperature: 260 ºC - 10s
Apply to Power adapter for Type C interface, Power Bank etc.
4, Product quality control ability and content:
4.1) We have various physical tests and chemical tests to test the reliability of the product.
4.2), The product has been tested by 17 projects
Test or Examination
NO. Item
1 Examination of product
2 Contact Resistance
3 Insulation Resistance
4 Withstanding Voltage
5 Insertion force
6 Withdrawal force
7 Durability(preconditioning)
8 Durability
9 Temperature Humidity Test
10 Thermal shock
11 Temperature life
12 Temperature life (preconditioning)
13 Reseating
14 Vibration
15 Salt spray
16 Drop Test
17 Resistance to Soldering Heat

Company Profile ABOUT US:
Palconn Technology Co., Ltd. was established in Nov of 2005,which is mainly engaged in production of connectors and cables R&D, production, and sales. As a high-tech company, it provides connectors of USB 2.0, USB 3.0, Type C connector, Micro, Jack, etc. and cables of HDMI, USB2.0 and 3.0, Type C, RCA, Displayport, etc., which are widely used in communication products, such as mobile phone and computer, and high-end field of automobile and medical apparatus and instruments. **New product development and manufacturing capabilities: Hardware molds and plastic molds from design and development to production are completed in the factory. **Production and manufacturing capabilities: We have semi-automated and fully automated production lines, as well as dust-free production workshops. Meet all kinds of products production and manufacturing.

Other USB-C connector For your reference.
If you need CAD or 3D version drawings, please contact us.
