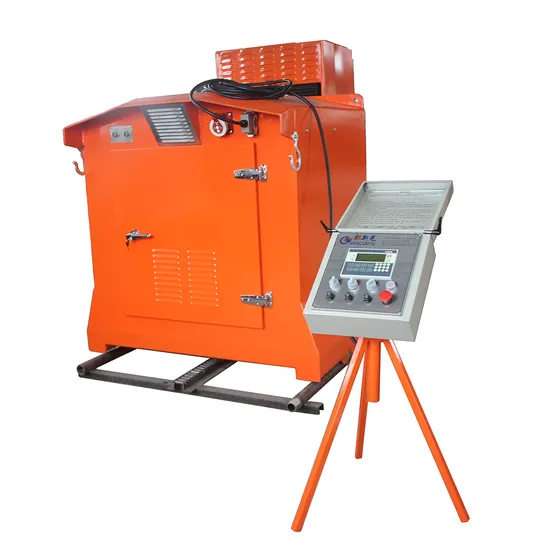

70kw Permanent Magnet Quarry Diamond Wire Saw Machine for Stone Cutting Quarry

Product Description

Description of Diamond Wire Saw Machine
Type: Stone cutting machine
Main motor: 70kw Flywheel's diameter: 800mm
Guide Pulley's diameter: 2*380mm
Wire speed: 0-40 m/s
Walking motor: 1.5kw
Waling speed: 0-30 m/h
Adjustment distance: 450mm
Rotation angle: 360°
Max length of wire saw: 60m
Net weight: 2600kg PRODUCT SPECIFICATIONS

Model	55KW-6P	55KW-8P	60KW	70KW	75KW-6P
(KW) Gross power of machine	59KW	59KW	64KW	74KW	79KW
(KW) Power of main motor	55KW	55KW	60KW	70KW	75KW
(M/S) Wire saw speed	0-40	0-33	0-40	0-40	0-40
(M) Length of wire	20-120	20-120	20-120	20-150	20-150
(KW) feeding power	1.5KW	1.5KW	1.5KW	1.5KW	1.5KW
(mm) Sideways range	560	560	560	560	560
Rotation angle	360°	360°	360°	360°	360°
(m/h) Walking speed of machine	0-112	0-112	0-112	0-112	0-112
Length of rail(m)	2m*3+1m	2m*3+1m	2m*3+1m	2m*3+1m	2m*3+1m
(ºC) Working temperature range	-15ºC~ +40ºC	-15ºC~ +40ºC	-15ºC~ +40ºC	-15ºC~ +40ºC	-15ºC~ +40ºC
(AC V/HZ) Power	AC330V~420V, 50/60Hz
(T) Weight	2.8T	2.8T	2.6T	2.6T	3.2T

FEATURES AT A GLANCE
1. The main motor is powered by inverter to obtain the suitable wire speed according to the type of granite or marble. It is applicable for quarrying all kinds of granite and marble
2. Apply vector inverter with invariable torque. Feed speed can be regulated automatically and smoothly as cutting force changes.
3.The control cabinet is placed separated within a side door. It is easy to do maintenance work.
4.Double dust-proof and waterproof structure is used to protect the main motor. The guide poles and screw rod are isolated with dust and water by the flexible lags. Greatly extend the life of the machines.
5.Easily regulate the position and angle of driving flywheel by motors.
6.Display the real time of the parameters, such as the main motor's current, flywheel's speed.
7.The machine can be operated manually or automatically.
