MVR Method PPHY Melt Flow Index Testing Machine

Product Description

Product Description

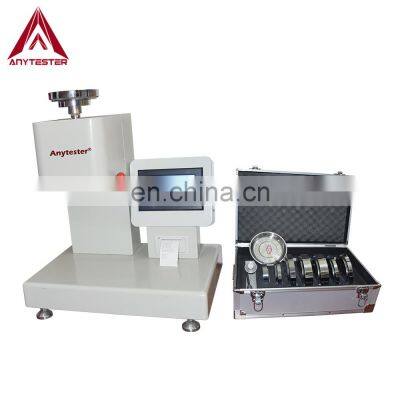

Product DescriptionAT430E Melt Flow Index Tester is used to measure the melt flow rate (MFR) of engineering plastics including polyethylene (PE),polyarylsulfone, fluro-plastic, nylon, polystyrene, polypropylene ABS resins, and POM resins. It can also measure the melt volumerate (MVR) of various high polymers whose melt volume rate is between 500cm3/10min~1000cm3/10min in the melt flow state, such as melt bow materials of polypropylene or other nanofiber materials. It is widely used industries of plastic production, plasticproducts, and petroleum chemical engineering and other relative academies, scientific research institutes and quality controldepartments.Standard ISO 1133-1 ASTM D1238 GB/T 3682-2000 ISO 1133-2 JB/T 5456Features★ High-precision and quick-response displacement sensor, resolution up to 1um, accurate data acquisition, rapid and reliable; ★ Temperature acquisition unit adopts 24-bit high-precision analog-digital converter, accurate and reliable temperatureacquisition and temperature resolution up to 0.01℃；★ Quick heating, precise temperature-holding, short time to restore temperature after feeding material in 2 min; ★ Dual PID segmental heating to precisely and reasonably control the heat distribution in the cylinder, ensuring the temperatureevenness of cylinder within ±0.3℃；★ Data-acquisition time interval in millisecond to capture the displacement change of material in high speed and accuratelymeasure the high melt flow rate up to 2500cm3/10min; ★ 7-inch Color touch screen to control terminals, with switchable Chinese-English language display, convenient to use;★ Professional software to control temperature automatically, automatically cutting material, real time display test curve,mini-printer to printout test data;★ Automatic identification of the effective measurement zone according to GB standard, ISO standard and ASTM standard; ★ Controlling software can carry out the setting of test parameters, the controlling of temperature, calibration, timing, themeasurement of MVR in a specific time and automatic calculation of MFR after inputting the density; ★ Storage capacity to save test data can store up to eight groups of test parameters and save test data in the portable storagedevice;★ Optional PC software to process data and create test report;★ Stopper for the die adopts lever-linking type drive mechanism, precise positioning, reliable sealing and easy operation.ModelAT430EMeasuring range(0.01~200)g/10min for MFR(500~2500)cm3/10min for MVRTemperature range50℃~450℃Temperature error≤±0.2℃Temperature fluctuation≤±0.2℃Temperature resolution0.01℃Temperature recovery time≤4 minDisplay modeTouch screen operationTiming accuracy0.1sTemperature evenness of cylinder±0.3℃Displacement resolution of piston0.002mmDisplacement error of piston≤±0.02mmStandard dieTungsten carbide, Φ2.095±0.005mmHeight of standard die8.000±0.020mmInner diameter of feed cylinderΦ9.550±0.025mmDiameter of pistonΦ9.475±0.015mmLength of piston head6.350±0.100mmWeight mass maximum error≤±0.3%PowerAC220V 50Hz, 0.5kVADimensions550×430×650mm (L×W×H) Weight Approx. 62kgOur CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productCertificationsPaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting usERIC QINWebsiteMobile Phone+86 188 5510 5986Whatsapp+86 188 5510 5986Skype eric-qlkWechat+86 188 5510 5986
