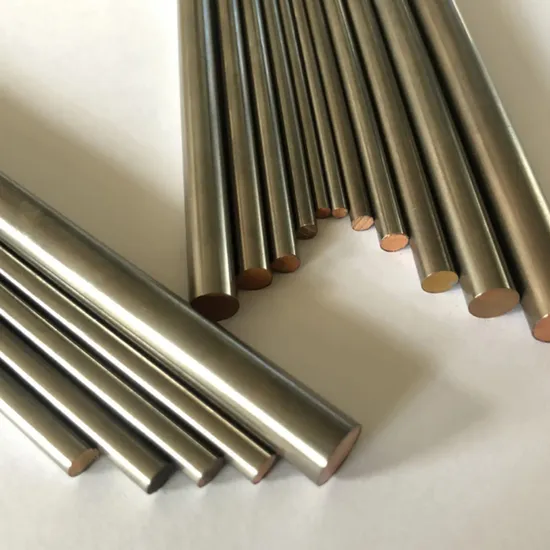

Customized Tungsten Copper Alloy Rods W70cu30

Customized Tungsten Copper Alloy Rods W70cu30

US$58.00
1-9 kg
US$56.00
10-29 kg
US$52.00
30-99 kg
US$50.00
100+ kg

Basic Info.

Model NO.
Tungsten Copper Alloy Rod
Shape
Round
Type
Tungsten Copper Alloy Rod
Length
Customized
Surface
Polished
Conduct Electricity
27-54%Iacs
Hardness
115-260 Hb
Certificate
ISO9001:2015
Market
Global
Transport Package
Wooden Package
Trademark
Huacheng
Origin
Taizhou, Jiangsu, China
HS Code
8102950000
Production Capacity
400 Ton /Year

Product Description

Product Parameters
RWMA Group B Proportion (%) Rockwell
hardness
Electrical
conductivity % ACS
Ultimate
tensile
strength
PSI
Breaking
strength
PSI
Density
GMS/CC
Thermal
expansion coefficientin
/in cx10(6) at 20°
Thermal
conductivityW/CM °C 20-400°C
Specific
heat
/kg °C at 20°
Electrical resistivity
at 20°
CW55 --- 45 Cu
55 W
79B 55 63000 110000 12.60 11.80 2.40 251 3.16
CW68 --- 32Cu
68W
88B 52 75000 130000 13.93 10.90 2.10 219 3.33
CW70 class10 30Cu
70W
90B 50 85000 140000 14.18 10.77 2.01 214 3.41
CW75 class11 25Cu
75W
94B 48 90000 150000 14.70 10.22 1.89 201 3.51
CW78 class 11&12 22Cu
78W
96B 46 94000 160000 15.12 9.30 1.84 194 3.71
CW80 Class 12 20Cu
80W
98B 44 96000 170000 15.58 9.20 1.82 188 3.9
CW85 -- 15Cu
85W
102B 36 75000 170000 16.19 7.97 1.75 175 4.71
CW90 -- 10Cu
90W
106B 28 70000 150000 17.05 6.49 1.47 163 6.1
CW75 -- 25Aldary
75W
109B 28 16000 200000 14.60 -- -- -- 6.1

Company Profile
