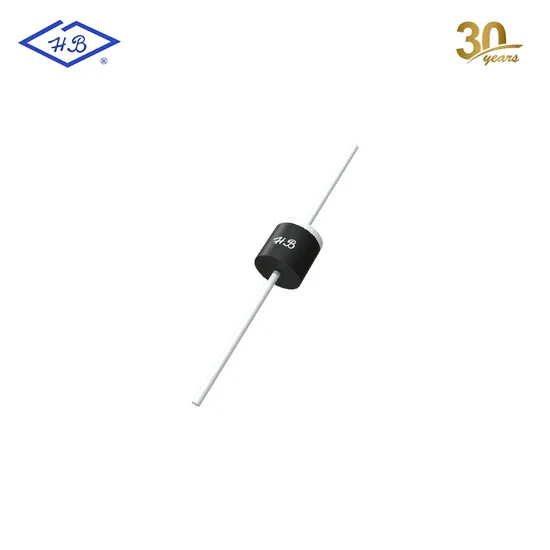

10A10 General Purpose Rectifier Diode

Product Description

Product Parameters 10A10

Type	Maximum	Maximum Average		Maximum	Maximum	Maximum		Package Dimensions
	Peak	Rectified Current		Forward Peak	Reverse	Forward
	Reverse	@Half-Wave		Surge Current	Current	Voltage
	Voltage	Resistive Load 60Hz		@8.3ms Superimposed	@PRV @25ºCTA	@25ºCTA
	PRV	Io @TA		IFM(Surge)	IR	IFM	VFM
	VPK	AAV	ºC	APK	uAdc	APK	VPK
10A10	1000	10.0	25	400	10.0	10.0	1.1	R-6

Product Description FEATURE
High surge current capability
Plastic Package has Underwriters Laboratory
Flammability Classification 94V-O ctilizing
Flame Retardant Epoxy Molding Compound
Void-free Plastic in a R-6 package
High current operation 10.0 ampere at TA=55ºC
Exceeds environmental standards of MIL-S-19500/228
Company Profile FAQ
Does Hornby Electronic offer customized product base on client's special requirements?
Yes, we can customize products on package, chips, Leads, solders. We have our independent R&D team and tactory to proceed special requirements. Pleace contact our sales for more details.
I can't find the part number that I am looking for. Is that means Hornby Electronic doesn't produce or have this parts?
We only put the most popular products on this platform. We provide many other products that you may interested in. Please contact our sales or managers for the diodes that you demand but are not found on the platform page.
I purchased HB products from other companies before. Are they authentic HB product?
We recommend you to purchase authentic HB Products from us or our authorized distributors. HB products from unauthorized sellers may have quality risks. You can check our partner page for authorized distributor list or ask our sales directly.
