Universal Vertical Drilling Machinez5140 High Quality Metal Vertical Drilling Machine for Sale

Universal Vertical Drilling Machinez5140 High Quality Metal Vertical Drilling Machine for Sale

US$4,600.00-5,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z5140
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Universal Vertical Drilling Machinez5140 High Qual
Max Drilling Dia
40
Spindle Taper
Mt4
Spindle Stroke
250
Headstock Travel(Manual)
200
Transport Package
Plywood Case
Trademark
Shenghuan
Origin
China
HS Code
8459290000

Packaging & Delivery

Package Size
109.00cm * 90.00cm * 246.00cm
Package Gross Weight
1300.000kg

Product Description

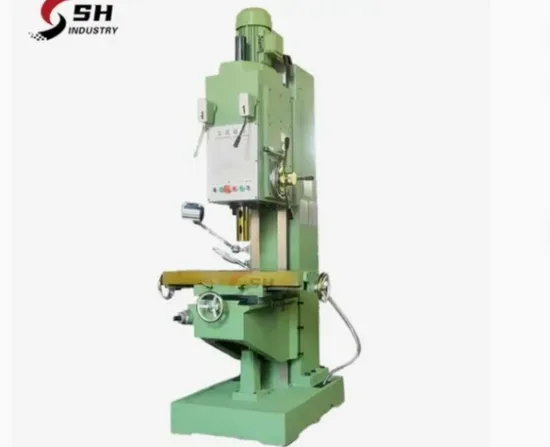

Universal Vertical Drilling MachineZ5140 High quality Metal Vertical Drilling Machine for sale
Product Description
Description:
1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling, drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..
2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.
Main technical specifications:

Specifications Z5140
Max drilling dia 40mm
Spindle taper MT4
Spindle stroke 250mm
Headstock travel(manual) 200mm
Spindle speeds 31.5-1400r/min 12 steps
Feed range 0.056-1.80mm/r 9 steps
Table size 560x480mm
Table vertical travel 300mm
Max.distance spindle nose to table 750mm
Main motor power 3kw
Overall dimension 1090*905*2465mm
N/W 1300kg

Detailed Photos
Company Profile
Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
