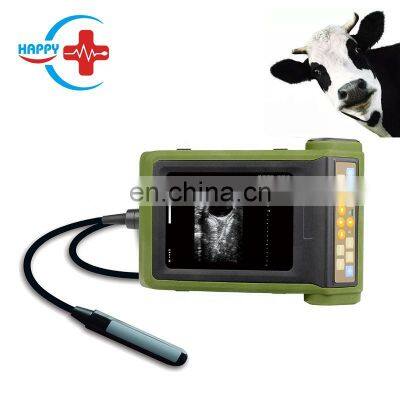

Full Digital veterinary ultrasound scanner/ultrasound veterinary

Product Description

Product Description
HC-A019V Full Digital veterinary ultrasound scanner/ultrasound veterinary Features for ultrasound veterinary:1) 1.1kg weight. Smart and light.2) High-capacity lithium Battery, more than 6 hours work.3) Sunshine cover, suitable for use in outdoor strong sunshine.4) Available for left/right hand alternative use, eliminating operate fatigue.5) Multiple use method: hand-held, chest hanging, back hanging, waist hanging, ect.6) Optional professional ultrasound goggles, convenient for outdoor use, meet different need.7) Have soft rubber coat, splash-proof, dust-proof.8) 2 kinds filter function, 7 kinds compress curve, 100 frames image permanent storage, 256 frames cine loop, Automatically calculate the Back fat and Lean percentage of swine. Tech Specification:--- Adopt 5.7” high resolution LED display, with High brightness, high contrast, wide viewing angle, suitable for outdoor use--- English language--- Single probe socket, auto identify probe--- Body mark:1.General 2. Bovine 3.Canine 4.Equine 5.Feline 6.Cardio 7. Swine, total 27 kindsbody mark with probe director--- Display mode:B,2B,4B ,B/M,M--- Gain:0~127dB--- Contrast:27~90dB--- Gray:256--- Focus: 1,2,3,4--- Magnification:0.8,1.0,1.2,1.5,1.6,2.0,2.4,3.0--- Multi frequency:4 different frequencies of each probe--- Depth: 8 steps, 240mm,--- Frame correlation:0,1,2,3--- IP:0,1,2,3--- IE:0,1,2,3--- Character brightness:select between160,192,224,255--- Key sound: on/off--- Compressing curve:7 kinds FUNCTIONS:--- Local zooming--- Depth hoist--- Image up/down, left/right, black/white--- Pseudo color: 8 kinds--- Four different angles / switchable width ;--- 100 frames permanent storage--- Cine loop:256 frames--- Puncture guide, with two approvable guiding lines whose angle and position can be adjustable.--- The gravel software package with real-time position line measurement--- Normal measurement: Distance, circumference, area (trochoid or ellipse), volume, etc.--- Cardio measurement:Depth, slope, heart rate, cycle;--- OB measurement:Cattle, dogs, horses, pig, cats, goats, camels and sheep and pre-gestational age birth--- Back-fat and lean automatic calculation function;--- OB Report;--- USB port for large capacity storage ( file management, software upgrade, one-key storage),and laser color printer to print image & report;--- With green energy-saving function--- Grid measurement:6 different(none,point grid,line grid, 10mm point ruler, 2mm point ruler, 10mm&2mm point ruler)--- Video output:PAL/NTSC--- Power supply:AC110/230 -15%~+10%, 60/50Hz±1Hz;--- Battery:large capacity(5200MAh) battery 1PC, more than 6 hours work--- N.W.:1.1kg;--- Dimension:212×154×58mm(L×W×H) Standard configuration:Main unit: 1 pc6.5MHz linear rectal probe : 1 pcPower adapter: 1 pcInternal lithium battery : 1 pcSoft rubber coat: 1 pcSunshine cover : 1 unit (A,B,C three sections adjustable)Black plastic suitcase : 1 pcBase Charger, belt, probe socket spatula: 1 pc for each. Optional Configuration: Probe:4.0Mhz multi-frequency convex rectal Probe 6.5MHz multi-frequency micro-convex probe3.5MHz multi-frequency convex probe7.5MHz multi-frequency linear probe3.5MHz loin muscle probeThermal printer (P93W-S)Lithium Battery(5200mAH)Leather Case saddlebag Pictures for ultrasound veterinary: Packaging & Shipping Company Information Our Services FAQ1. How to place order of ultrasound machine veterinary ?A: Firstly we confirm product details and then send the Proforma Invoice, You make payment to us through Alibaba Trade Assurance or T/T, Western Union or MoneyGram, after we confirm your payment then ship the product to you once finished production. 2. For ultrasound machine veterinary product,What’s the minimum order quantity (MOQ)?A: For disposable material,We have our own MOQ,For our ultrasound machine veterinary , our MOQ:1pc, 3. What is your warranty?A: For most products the warranty is for 12 months, some products we provide 18 months warranty. For ultrasound machine veterinary , we provide 12 months warranty.4. What’s your delivery time?A: Generally it is 5 working days if goods in stock. within 10 working days if the goods need production, And also the delivery time depands on quantity. For ultrasound machine veterinary , the delivery time is 10 working days.5. How to ship the product?A: The shipping way normally depand on your quantity,total CBM and weight. We have our own shipping company to provide best shipping cost and efficient way.
