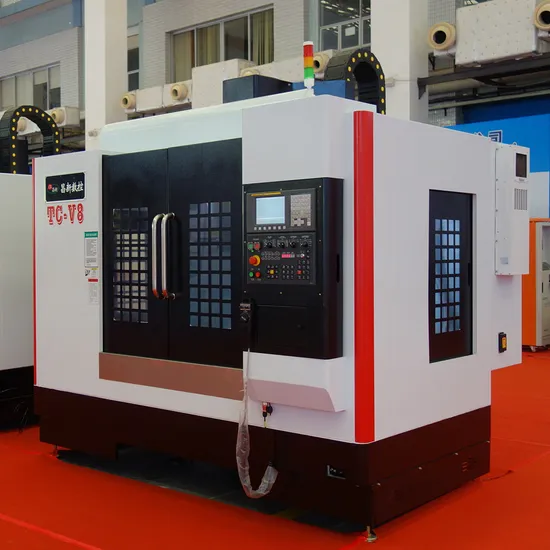

Monthly Deals Good Quality Good After Sales Service Universal Type 3 Axis 4 Axis 5 Axis Vertical CNC Milling Machine Vmc 850 Machining Center
| US$32,846.72-37,226.28 | 1 set (MOQ) |
Basic Info.
Model NO.
TC-V8
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.02~0.03(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE
Condition
New
Table Size
1000*500mm
Table Max Load
600kg
X Axis Travel
800mm
Y Axis Travel
500mm
Z Axis Travel
500mm
Spindle Speed
12000rpm
Spindle Motor
7.5kw
Spindle Tapper
Bt40
Controller
Fanuc/Mitsubishi/Syntec/Siemens
Bearing
Japan NSK or German FAG
Linear Guide and Ball Screw
Taiwan Hiwin
Tool Magazine
Taiwan Brand 24 Tools Capacity
Transport Package
Wooden Packing
Specification
2600*2240*2350mm
Trademark
Chansin
Origin
China
HS Code
8457101000
Production Capacity
1000sets/Year
Product Description
Dongguan manufacturer good quality good after sales service universal type 3 axis 4 axis 5 axis vertical cnc milling machine vmc 850 machining centerSpecifications:
| CNC Milling Machine VMC850 | |||
| Table | Size | mm | 1000*500 |
| Travel of 3 axis(X/Y/Z) | mm | 800/500/500 | |
| Max table load | kg | 600 | |
| T-slot | Number*width*space | mm | 5*18T*100 |
| Spindle (direct drive) | Spindle taper | BT40 | |
| Spindle center to column | mm | 550 | |
| Spindle nose to table | mm | 120-620 | |
| Max spindle speed | rpm | 12000 (standard) | |
| Spindle Motor power | kw | 7.5 | |
| Accyracy | Positioning accuracy | mm | ±0.005/300 |
| Repeatability | mm | ±0.003/300 | |
| Axis motor | Power of X/Y/Z | kw | 2.0/2.0/3.0 |
| Feeding Speed | Rapid feed of X/Y/Z | mm/min | 48000 |
| Cutting feed of X/Y/Z | mm/min | 12000 | |
| Parameters | Weight | kg | 5500 |
| Dimension(L*W*H) | mm | 2680*2265*2400mm | |
| Power | v | 380/415 | |
| Bearing | Japan NSK or German FAG optional | ||
| Linear guide rail and ball screw | Taiwan Hiwin | ||
| Coupling | German BK3 SW*J | ||
| Main electrical accessories | German Schneider, Merlin Gerin | ||
| Circuit breakers and relays | German Schneider, Merlin Gerin | ||
| Working LED lamp | Taiwan | ||
| Hand control electronic hand wheel | Taiwan | ||
| Tool Magazine | Taiwan arm type tool magazine with 24 tools capacity | ||
| Control System | Taiwan Syntec, Japan Mitsubishi, Japan Fanuc , Germany Siemens optional | ||
| Motor | Japan YASKAWA /Mitsubishi /Fanuc/Siemens Servo Motor | ||
| Accessory | 1.Tool box (1 set) 2.Tool Holder(2 pcs) 3.vise and Lock knife seat (1 set) 4.High pressure spray gun(1 pcs) 5.Chip conveyor 6.Oil cooling station 7.Collets (4 pcs) 8.Hand Wheel(1 pcs) 9.Machine operating manual 10.Operation and programming manual 11.Servo Motor and Controller Manual | ||
Payment Term:
Payment:40% deposit,the balance will be paid before shipping.
Delivery:
20-30 days after received the deposit payment.
Remarks:
1.Warranty:One year free warranty and life time maintenance.
2.Loading port: Shenzhen/Guangzhou
3.Engineers are available to serve overseas, you are responsible for the air tickets and accommodations expenses. The price above is not including this expenses.
