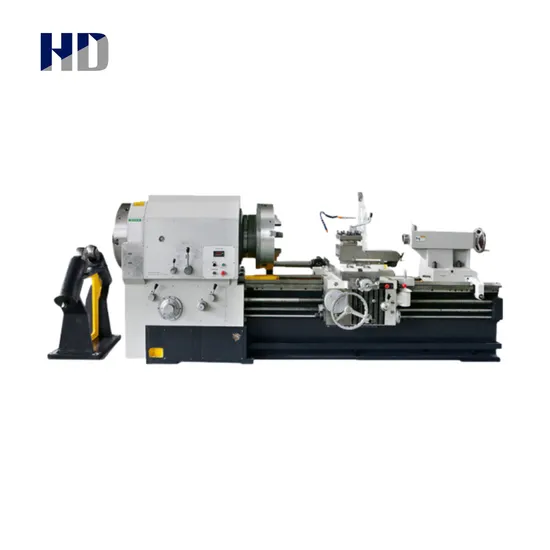

Q1330 Horizontal Lathe for Oil Country Metal Threading Machine Lathe
Basic Info.
Model NO.
Q1330
Type
Horizontal Lathe
Processing Accessory
Other
Guide Rail
Horizontal Guide Rail
Tool Holder
Other
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max. Swing Over Bed Dia.
800mm
Max. Swing Over Cross Slide Dia.
480mm
Max. Length of Workpiece
1500/3000mm
Width of Bed
600/650mm
Spindle Bore
305mm
Power of Spindle Motor
15kw
Spindle Speed
Vf2 Steps, 20-300r/Min
Z Axis Feed Range
32/0.095-14mm/R
X Axis Feed Range
32/0.095-14mm/R
Cariage Rapid Traverse Speed
3740mm/Min
Cross Slide Rapid Traverse Speed
1870mm/Min
Metric Thread Range
22/1-15mm
Inch Thread Range
26/14-1t.P.I
Traverse of Cross Slide
420mm
Max. Traverse of Turret
200mm
Transport Package
Wooden Cases
Specification
3750*1700*1600mm
Trademark
HAIDI
Origin
China
HS Code
8458990000
Production Capacity
30 Sets/Month
Product Description
Product PictureSpecification Parameter
| Specification | Unit | Q1325 | Q1327 | Q1330 |
| Max. swing over bed dia. | mm | 800 | 800 | 800 |
| Max. swing over cross slide dia. | mm | 540 | 480 | 480 |
| Max. length of workpiece | mm | 1500/3000 | ||
| Width of bed | mm | 550 | 600/650 | 600/650 |
| Spindle bore | mm | 255 | 280 | 305 |
| Power of spindle motor | kw | 11 | 15 | 15 |
| Spindle speed | r/min | VF2 steps, 20-340 | VF2 steps, 20-300 | VF2 steps, 20-300 |
| Z axis feed range | mm/r | 26/0.07-1.33 | 32/0.095-14 | 32/0.095-14 |
| X axis feed range | mm/r | 22/0.02-0.45 | 32/0.095-14 | 32/0.095-14 |
| Cariage rapid traverse speed | mm/min | 4000 | 3740 | 3740 |
| Cross slide rapid traverse speed | mm/min | 1300 | 1870 | 1870 |
| Metric thread range | mm | 24/1-14 | 22/1-15 | 22/1-15 |
| Inch thread range | T.P.I | 40/2-28 | 26/14-1 | 26/14-1 |
| Traverse of cross slide | mm | 430 | 420 | 420 |
| Max. traverse of turret | mm | 200 | 200 | 200 |
| Tailstock quill travel | mm | 200 | 250 | 250 |
| Tailstock quill dia. | mm | Φ100/ Morse 5 | Φ100/ Morse 6 | Φ100/ Morse 6 |
| Chuck | mm | Φ630 4 jaw manual | Φ630 4 jaw manual | Φ630 4 jaw manual |
| Overall dimension | mm | 3700*1600*1400 | 3750*1700*1600 | 3750*1700*1600 |
| Net weight | T | 6.0 | 6.5 | 7 |
Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
Certifications
Packing&Shipping
