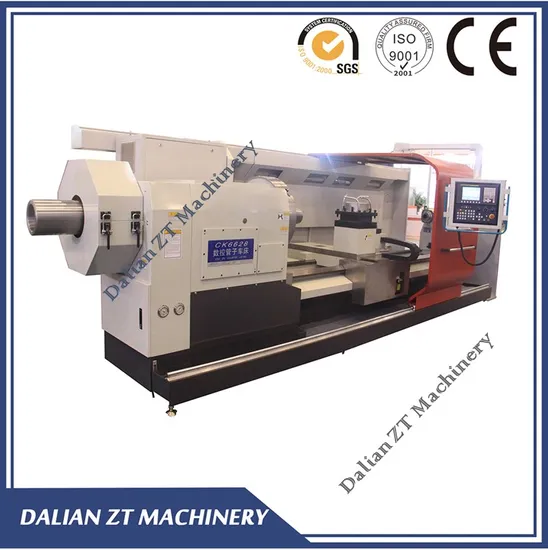

Large Spindle Bore CNC Oil Country Pipe Threading Lathe

Large Spindle Bore CNC Oil Country Pipe Threading Lathe

US$65,000.00 1 set (MOQ)

Basic Info.

Model NO.
CK6288
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Wooden Case
Specification
18.5kW
Trademark
Dalian ZT Machinery
Origin
China
HS Code
84581900
Production Capacity
2000 Sets/Year

Product Description

This machine is mainly suitable for turning pipe ends, taper pipe thread, pipe band, pipe sleeve, rod drilling and so on, It has characters of big power, good rigidity,high accuracy and excellent keep performance FANUC OR SIEMENS CNC system has been used. The realiability is very high. Pulse coder is as a measuring element, longitudinal and cross feed form semi-closed loop control.
Specifications of CNC oil country lathe
Item CK6628 CK6636 CK6646
Swing over bed 1000mm 1000mm 1200mm
Swing over carriage 710mm 640mm 800mm
Spindle bore 280mm 360mm 460mm
Max. Load between centers 4T 6T 6T
Bed width 600mm 755mm 970mm
Spindle speed 5-500rpm 3.15-315rpm 3.15-315rpm
Spindle motor AC18.5kW AC22kW AC30kW

FAQ
1. How can I choose the most suitable machines ?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.

3. Is machine tested ?
A: The accuracy, noisy will be tested according to China GB standard.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5. What's the Payment Terms ?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.

6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.
