Three Layers Co-Extrusion Film Blowing Machine HDPE/LDPE/PE Blown Film Machinery

Product Description

Product Description

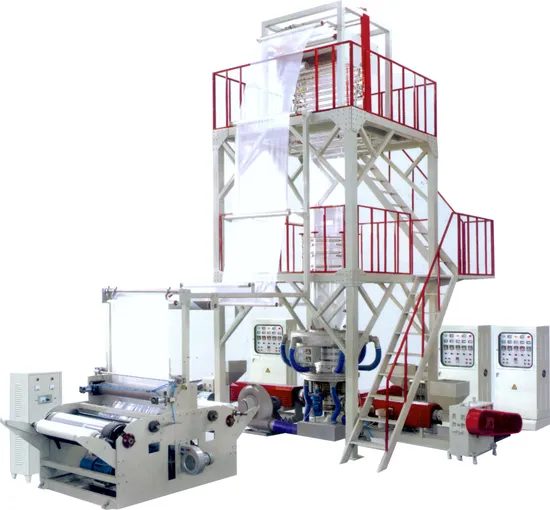

HDPE / LDPE / PLA Material three layers co-extrusion film blowing machine
This 3 layers film blowing line is composed of three extruders and auxiliary parts. It can be used for blowing with HDPE and LDPE, LLDPE, metallocene polyethylene, etc. Through the extrusion die head to form three layer complex composite film. With greatly improving the physical properties of the film and an increase of strength, so that the film featured in good obstruct properties and air tightness. This film barrier properties, thermal insulation, waterproof, anti-frost, oxygen barrier, oil resistance and other excellent, can be widely used in heavy packing, such as fruit, meat dish, pickles, fresh milk, liquid beverage etc..
Product Parameters

Model	XY-3L1200	XXY-3L1500	XY-3L2000	XY-3L2500
Raw material	HDPE / LDPE / LLDPE / EVA / CaCo3 / PBAT / PLA
Film width	800-1200mm	1000-1500mm	1200-2000mm	1500-2500mm
Roller width	1300mm	1650mm	2200mm	2700mm
Film thichness	0.02-0.25mm	0.02-0.25mm	0.02-0.25mm	0.02-0.25mm
Max. output	120kg/h	150kg/h	200kg/h	250kg/h
Screw diameter	A: 50mm	A: 60mm	A: 65mm	A: 70mm
	B: 55mm	B: 65mm	B: 70mm	B: 80mm
	C: 50mm	C: 60mm	C: 65mm	C: 70mm
Screw L/D	30:1	30:1	30:1	30:1
Driving motor	15/18.5/15 kw	22/30/22 kw	30/37/30 kw	37/45/37 kw
Gearbox	146/173/146	180/200/180	200/225/200	225/250/225
Die size	Φ250	Φ300	Φ450	Φ550
Machine size	6x4x6.5m	6.7x4.8x7.5m	9x6x9m	11x7.5x11m

Optional Equipment:
1) Auto Loader
2) Corona
3) Special Specification Die Head
4) Fast Changer Filter
5) Automatic Rewinder
6) g/m weight controller
Certifications
Packaging & Shipping
Company Profile
FAQ
1. Are you factory or trading company ?We are factory specialized in plastic machine for many years, also we have the right to export goods by ourselves.2. Where is your factory? How can i visit your company?Our factory is located in Ruian city,zhejiang province, China. Its about 40 minutes from shanghai by plane(4 hours by train). We will pick you up on airport or station.
Welcome to visit our factory3. How long is your delivery time?Normally our delivery time is 15-30 days. If you need it ugently, we can make it about7 days4. What are your terms of payment?We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight. 5. What package do you use for the product?Be Coated with anti-corrosion oil, and covered with plastic film, wooden box package need extra cost. 6. Does your factory provide installation service?Our engineer can go to customer factory to installation. Customer should prepare materials used to testing the machine in advance and should be responsible for the cost of supplier's technician, including round air tickets, visa cost, accommodation and salary 100USD/Day per person since the day start out until the day arriving at factory.7. What's your warranty policy?12 month guarantee and whole life maintance.
8. What is your company after sale service?We would express the free replacement parts as soon as possible.
