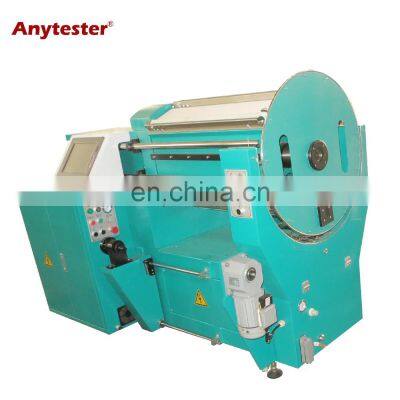

Laboratory Small Sample Warping Machine with PC Control

Product Description

Product Description
Product Description
AT241B Small Sample Warping Machine is used for automatic warping of production sample, weaving sample and small batch fabrics for lab. As the textile develops in the direction of small quantity, diverse kind and prompt delivery, so our company has developed AT241B Small Sample Warping Machine on the increasing requirements on product samples. It is widely used in the sampling in the industries including wool spinning, cotton spinning, colored woven and natural silk etc.
Features
★ PC control and software for arranging the laying of yarn;
★ Special design for sample weaving in lab or research and development institute;
★ Adjustable working space of unwinding device, suitable for various warping beams whose length is within 300~500mm;
★ Yarn breaking detector;
★ Foot pedal for unwinding;
★ With inching button and emergency stop for the safety of operator
Specification

Model	AT241B
Warping width	0~500mm
Warping speed	0~500m/min
Warping length	2.4m or 3m
Applicable yarn density	5~500tex
Number of bobbins	1pcs (manually changeable)
Yarn arrangement	Servo motor control with accuracy of 0.01mm reachable
Applicable warp beam diameter	¢60mm
Applicable warp beam length	300~500mm
Air pressure required	0.4~0.8Mpa
Air consumption	Max. 200L/h
Power supply	AC380V 50Hz, three-phase
Dimensions	1700×1000×1300mm(L×W×H)
Weight	Approx.850kg

Packing & Delivery

Packaging
Size(mm)	1700*1000*1300mm
Weight	850Kg
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip.  2. The box is filled with foam to protect the equipment from impact.  3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
					FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
				CIF
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
		West Union
Delivery Time	7~10days after receiving payment for one container
