Hot Sales China Horticultural/Hydroponics/Soil Cultivation/Substrate Culture/Aeroponics Greenhouse/Tent 50W/100W/200W/300W/400W/500W/600W/700W

Product Description

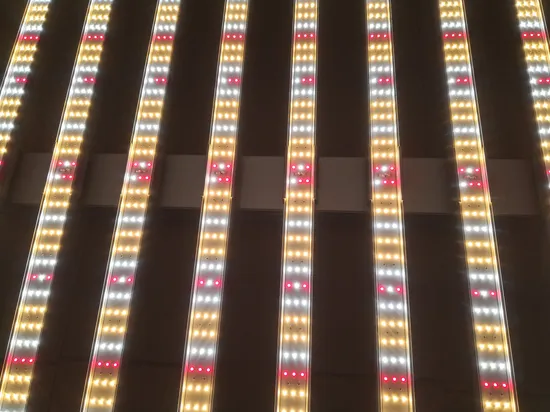

Adjustable LED Plant Grow Bar Light
Product Advantages:
1. Customize LED spectrum varies plants
The optimal full spectrum which provides plants Veg and Flower all stages with everything they desire in the natural sunlight
We are a professional LED light manufacturer with strong R&D team and many light tester.
2. Full Spectrum
We did lots of experimentation to ensure that this full spectrum design promotes plant growth. It includes universal Blue Red IR UV and white light provide everything plant desire in the natural sunlight. The expensive IR UV led promote plants to defense mechanisms, blue and red led is essential light for plant growth.
3. Adjustable bar, distance between LED bar for different lighting intensity and Lighting direction
Aluminum bar structure good for heat dissipation, air convection effect, good thermal management system, improving heat dissipation performance to long life time
4. Optical lens Modular, conveinent to assemble and installation
5. Compare TO HPS/MH- The 600W LED grow light can replace traditional 400 watt HPS/MH while consuming only 108 watts! More effective coverage area than any reflector series lights. perfect for a growing area at 1m height 6 square meters.
6. BEST SERVICE- Customize LED spectrum varies plants, we accompany with clients from plant, flower, fruit, professional and patient assitant in each stage
Technical Specifications

Product name	600W Top module lighting	600W Top module lighting	600W Top module lighting
Model	ATA-M600W	ATA-M600W-LENS	ATA-M600W-FULL SPECTRUM
Product Size (L x W x H)	1022*1015*95mm	1022*1015*95mm	1022*1015*95mm
	40.24*39.96*3.74inch	40.24*39.96*3.74inch	40.24*39.96*3.74inch
Material	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy
Power Consumption	545W±5%	545W±5%	545W±5%
Led Type	3W /LED 3030 LED	3W /LED 3030 LED	1W /LED 5730 LED
Led Quantity	130PCS*10*3=3900W	130PCS*10*3-3900W	130PCS*10=1300W
Beam Angle	without lens120°	with lens90°	without lens120°
Input Voltage	100-277Vac 50/60Hz	100-277Vac 50/60Hz	100-277Vac 50/60Hz
Work Environment	-20°~40°C/-4°~104°F	-20°~40°C/-4°~104°F	-20°~40°C/-4°~104°F
Net Weight	18.7KG	18.7KG	18.7KG
	41.24lbs	41.24lbs	41.24lbs
PF	0.9	0.9	0.9
Heat dissipation mode	Natural cooling	Natural cooling	Natural cooling
Light decay	<15% In three years	<15% In three years	<20% In Two years
IP rating	IP65	IP65	IP65
Working Humidity	10%-95%RH	10%-95%RH	10%-95%RH
PPF µmol/s	1586umol/s	1586umol/s	1586umol/s
Heat Output	1120BTU/H	1120BTU/H	1120BTU/H
Lighting area	1M High 6.0M2	1M High 6.0M2	1M High 6.0M2
Warranty	Three years	Three years	Two years

PPFD
Spectrum
Product Dimension
Installation: Suspending
Application
Fruit, Vegetable, Flowers, Special Crops, Leafy, Fruit, Seedling, propagation, mixed-light, supplemental, complete indoor or greenhouse, Medical plants, indoor garden, pot plants, garden, breeding, farmland, spray plant, greenhouse plants, pipeline cultivation, flowering, etc.
User Manual
Switch off power of the mains supply or respectively of the connection lead before doing any works.
Assembly must not damage or destroy conducting paths.
Make sure that the product is mounted on a stable, even and tilt-fixed background.
The complete installation must be done by an electrical expert who is familiar with the valid directives.
Quaity Control
Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box
