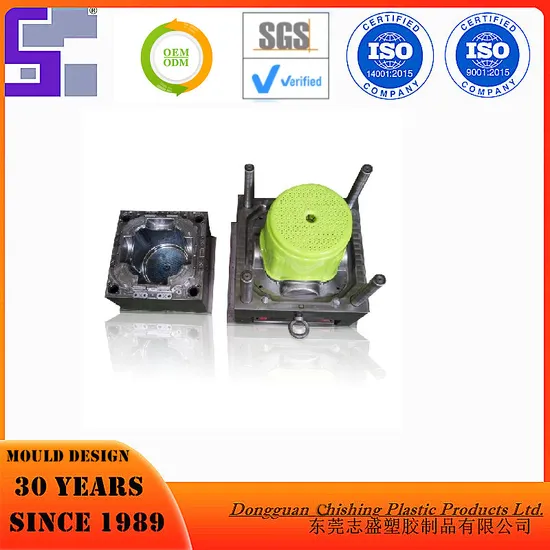

Mould Factory Maker OEM Service Custom Plastic Injection Mold Appliance Mold

Product Description

Plastic Injection Mold
Product Material	ABS, PA, PA66+30GF, PBT, PC, POM, PP, PE, MA,PVC,TPE,TPU etc
Material of Steel	738,718,NAK80,S136,P20 etc
Surface Requirement	Smooth, Polishing, Painting, SandBlasting, Electroplate, Silk-screen, Laser Etching, Anodizing,Brushing
Tolerance Request	UP to (±0.005mm)
Mould Life	500000-1200000 shoots
Multi Injection	Single/Double/multi color
Design Software	Pro/E,UG,Catia,Woodwork,Moldflow,AutoCad
Injection System	Hot /Cold Runner
Inserts(cavity and core)	H13, 1.2344, 1.2738, 1.2083, 1.2311, NAK80 or the material you required
Mold Cavity	1*1,1+1,1*2,1+1+1,etc
Gate type	Side gate,Sub gate,Pin point gate,Edge gate etc
Ejector System	Stripper plate,Lifter,Push bar,Ejection pin etc
Steel Standard	FINKL,Assab,DAIDO,LKM,Buderus
Cooling	Baffles/Sprin Piple/3D printing water line
Standard Parts/Cylinders	DME/HASCO/PROGRESSIVE/MISUMI/Parker/HP/Merkle
Design Capability	DFM,Mould flow analysis,Product optimization, Full 2D & 3D mould design,Reverse engineering,Collaborative design with customer's idea
Documents / Reports Provided	Fully drawing,Weekly Processing Report, Steel Dimension report, Processing Report,Sample Dimension Report
Certificate	ISO9001 ISO14001
MOQ	1sets
Lead Time	6-10 weeks or according to the order requirement
Payment	40%Deposit, 30%Before Product Inspection, 30%Before Shipment
Port of loading	SHUNDE/GUANGZHOU/SHENZHEN

Below Info. Has Been Verified By SGS Group:

Manufacturer/Factory				Owned Land Certificate
Main Product				Plastic Injection Mould
MOQ				1 set
Top Monthly Output				200 sets
Top Annual Output				2400 sets
Price Range				$2800-Negotiable
Professional Department				Members
R&D Department				65
PMC				4
QC				19
Workshop				400

Advanced Machine			Brand		Set
CNC Machining Centre			Makino/Cincinnati/Vision Wide/YCM/Fanuc/Beijing Jingdiao/HARTFORD	41
Drilling Machine			WIM/ACCURATE	8
WEDM			Makino/Mitsubishi/Dophen/BAOMA/HANQI	16
EDM			Makino/Mitsubishi/Sodick/TAIZHENG(TAZE)/Dophen/ACCURATE/SHANGTENGYUANHANG	41
Milling Machine			SHANGTENGYUANHANG		51
Radial Machine			SHANGHAI FIFTH MACHINE/ZHONGJIE		5
Injection Machine			JSW/Haitian/ZHENDE(CHENDE)/Kai Ming/MILACRON/WELLTEC		32
Laser Welding Machine			HERO-LASER/MILLER	3
Auto CMM(Mechanic Arm)			FANUC		1
CMM			LK/HEXAGON		4
Hardness Measurer			HUAYIN		2
Image Measuring Instrument			3DFAMILY		2
CNC Lathe			DOOSAN		1

Our Staffs:

Cooperate with the relevant vocational and technical colleges to help their graduated students provide them internship job, during then select those who's ability is excellent(20 out of 100 people), to ensure that the technology is passed on, and the new blood in creativity.

Mould Trade Process:

Quote: According to sample, drawing and specific requirement. ↓ Discussion: Mold material, cavity number, price, runner, payment, etc. ↓ S/C Signature: Approval for all the items ↓ Advance Pay: 40% by T/T ↓ Product Design Checking: We check the product design. If some position is not perfect, or can not be done on the mould, we will send customer the report ↓ Mold Tooling: We start to make mold after mold design confirmed ↓ Mold Processing: Send report to customer once each week ↓ Mold Testing: Send trial samples and try-out report to customer for confirmation. ↓ Pay :30% by T/T on trial samples ↓ Mold Modification: According to customer's feedback ↓ Balance settlement: 30% by T/T after the customer approved the trial sample and mould quality. ↓ Delivery: Delivery by sea or air. The forwarder can be designated by your side.

Order's Referential Guide:(How to get a fast quotation from us )
1)Please select the A to D grade to match your requirement.

		A Grade		B Grade		C Grade		D Grade
Mold Base Standard		HASCO/DME		LKM		LKM		Chinese Local
Cavity Steel		H13, 2344, 2343, 8407, Heat Hard Steel		718, 738, P20HH, NAK80		Local P20, WY718		Aluminum, S50C
Standard		HASCO, DME		LKM		Chinese Local		/
Mold Life		>500000-3000000		300000-500000		100000-300000		>10000
Runner		HOT/COLD		HOT/COLD		COLD		COLD
Mold Price		Most expensive		Expensive		Cost Effective		Cheapest

2) Please inform: a.Plastic type b. Product QTY c. With the part's Drawing d. USD Price or RMB price, Send to my Email. So we can quote you within a day.
3) If you haven't the parts' drawing then you can inform us: a. Plastic type b. Product QTY c. Sample or Picture with a ruler. d. USD price or RMB price, also send to my Email. So we can quote you within 2 days.
To get a QUOTATION

FAQ:
Q: Are you a factory or trading company?
A: We are a professional manufacturer of injection mold for above 30 years in Donguan China.
Q: Can you do Assemble?A: Of cause we could do. Our factory with assembly room.Q: I have an idea for a new product, but not sure if it can be manufactured. Can you help?A: Yes! We are always happy to work with potential customers to evaluate the technical feasibility of your idea or design and we can advise on materials, tooling and likely set-up costs.Q: My products have already been developed on CAD. Can you use the drawings?A: Yes! DWG, DXF, IGES, Solidworks and Rhino files can all be used to generate quotes, models and mould tools - this can save time and money in producing your parts.Q: Can I test my idea/product before committing to mould tool manufacture?A: Sure, we can use CAD drawings to make models and prototyping for design and functional evaluations.Q: What shall we do if we do not have drawings?A: Please send your sample to our factory,then we can copy or provide you better solutions. Please send us pictures or drafts with dimensions(Length,Hight,Width),CAD or 3D file will be made for you if placed order.Q: What type of mould tool do I need?A: Mould tools can be either single cavity (one part at a time) or multi-cavity (2,4, 8 or 16 parts at a time). Single cavity tools are generally used for small quantities, up to 10,000 parts per year whereas multi-cavity tools are for larger quantities. We can look at your projected annual requirements and recommend which would be best for you.
Q: How can we guarantee the quality?
A: 24Hours online services,end to end design scheme;
Always a pre-3times test before package;
Always final Inspection before shipment;
Always provide technical support for all the time. Q: How long is your delivery time?A: Generally 5-7 days for plastic products.25 days around to make a simple molds, complicated ones can be 30~50 days. We use our company DHL, TNT, UPS account to ensure the fast product delivery time.Q: How many times try out?A: 3 times and every time 2 sets sample with free delivery via DHL.
Q: What should we do if we receive defective products?
A: Once receive defective product, please send us the photos, we will feedback to our engineers and QC departments and solve the problems ASAP
Q: What is your terms of payment ?A: Paypal, T/T. or you want.
