Efficient Combine Rice Harvester with Changchai 102HP and Compact Size

Efficient Combine Rice Harvester with Changchai 102HP and Compact Size

US$11,000.00-13,000.00 1 Set (MOQ)

Basic Info.

Model NO.
4LZ-5
Application
Rice, Corn, Wheat, Soybean
Power Source
Diesel
Harvest method
Cutting
Drive Type
Gear Drive
Transmission
Soft Shaft
Portable Harvester Type
Self-Propelled Harvester
Certification
ISO9001:2008, CE
Color
Support Customization
Condition
New
Application Field
Agriculture
Warranty
1 Year Warranty
Model
4lz-5
Horsepower
Changchai 102HP
Dimension(L*W*H) (mm)
5580*2420*2870
Weight(Kg)
3150
Cutting Width (mm)
2000
Productivity(Hm²/H)
0.3-0.9
Fuel Consumption(L/Hm²)
≤41
Mini Clearance(mm)
290
Grain Tank(M³)
2
Threshing Pattern
Longitudinal Axial Flow
Threshing Drum Size(mm)
Φ620*2000
Track Specification (mm)
90*51chains*400
Track Gauge(mm)
1150
Hst
45cc
Gearbox HP
85HP
Transport Package
Sea Transportation
Origin
Jining, Shandong
HS Code
84335100
Production Capacity
5000 Sets Per Year

Packaging & Delivery

Package Size
558.00cm * 242.00cm * 287.00cm
Package Gross Weight
3150.000kg

Product Description

Product Parameters
Model 4LZ-5
Horsepower Changchai 102HP
Dimensions(L*W*H)(mm) 5580*2420*2870
Weight(kg) 3150
Cutting width (mm) 2000
Track Track specification (mm) 90*51chains*400
Track gauge(mm) 1150
Cab type Awning or AC Cab
Production efficiency Productivity(hm²/h) 0.3-0.9
Fuel consumption(L/hm²) ≤41
Mini clearance(mm) 290
Thresher Grain tank(m³) 2
Threshing pattern Longitudinal axial flow
Grain unloading drum height(mm) 3700
Threshing drum size(mm) Φ620*2000

Detailed Photos

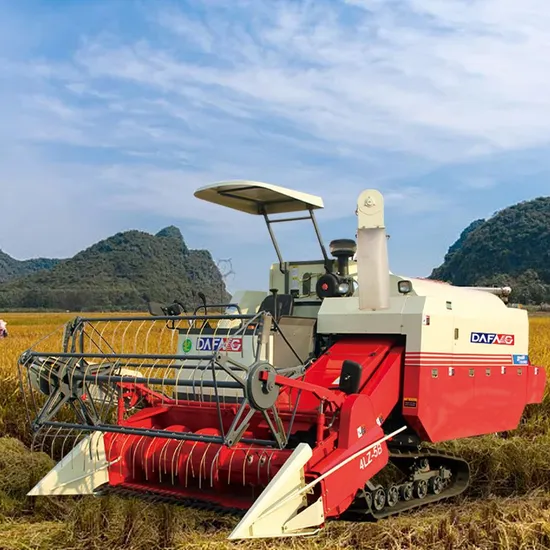

4LZ-5 This efficient crawler grain harvester employs advanced longitudinal axis flow roller threshing separation technology, ensuring seamless harvesting of rice and wheat.
Additionally, it comes fully equipped with specialized devices for harvesting rapeseed, corn, and millet.
Product Description
Comprehensive Technical Overview on Model 4LZ-5
Equip this harvester with an optional plate type divider or 'mouse cage' divider to enhance its versatility across various crops. This feature is particularly effective for handling inclined crops, significantly minimizing header losses. The spring gear tube is fortified with a protective cover, effectively preventing any grass entanglement, ensuring seamless operation. The header's lifting and rotating design is meticulously optimized, and the bridge extension resolves low-cutting header issues for fallen crops and enhances high-point header passability. The header blade guard's tip bottom sits 40 mm below horizontal ground, with the high point 1000 mm above it. An optimized bridge feed inlet with floating wheels allows freely adjustable feeding amounts, significantly improving conveying passability and efficiency. The bridge is equipped with a turn-over device, allowing quick resolution of blockage faults, ensuring uninterrupted harvesting operations. The grain separation chamber features an arc-shaped stainless steel feed opening, offering unparalleled strength and wear resistance. Boasting an efficient grain separation cleaning system, this harvester includes a 2.0-meter long grain roller, a new style cleaner fan, and an adjustable angle fish scale clean screen, ensuring robust crop processing and resolving issues related to poor feeding and high cleaning losses. With a high-clearance chassis, the minimum ground clearance reaches 330mm, enhancing resistance to sinking. Additionally, chains can be fitted to improve performance in waterlogged fields. Powered by a renowned and high-quality National III engine, this harvester delivers robust power, high operational efficiency, and low fuel consumption. Featuring the original imported hydraulic transmission with an 80 gearbox, this machine ensures fast speeds, flexible steering, and remarkable maneuverability. The newly designed operator panel is unobtrusive and ergonomically crafted for comfort. With waterproof electrical components, it offers long service life and recessed start switch to prevent accidental collisions or engine shutdowns. Choose between two straw processing methods to suit different regional needs, enhancing the machine's versatility. Optionally equipped with harvesting devices for rape seed, corn, and millet, this harvester showcases strong adaptability and multifunctionality, making it a versatile choice for various agricultural demands.
