Low Cost High Speed Vertical 3 Axis Mini CNC Milling Machine for Sale (BL-Y25)
| US$15,000.00-18,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BL-Y25
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Precision
Normal Precision
Certification
CE
Condition
New
Table Size
700*260mm
Spindle Motor
2.2/3.7kw
Spindle Speed
6000rpm
X/Y/Z Axes Travel
400/250/280mm
Spindle Type
Bt40
Machine Size
1510*1200*2010mm
Weight
1300/1500kg
Transport Package
Wooden Case
Specification
700*260mm
Trademark
BLIN
Origin
China
HS Code
8459619000
Production Capacity
480 Units/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description
Low cost high speed vertical 3 axis mini cnc milling machine for sale(BL-Y25)
- Adopt mature conventional CNC milling machine structure, good stability
- SWALLOW-TAIL shape HARD guideway
Details:
| Item | Specification | Unit | BL-Y25 |
| Worktable | Table size | mm | 700×260 |
| T slot(NO./width/gap) | mm | 3/14/63 | |
| X/Y/Z axes | X/Y/Z axes travel | mm | 400/250/280 |
| X/Y/Z axes ball screw(dia./pitch) | mm | 32/6 | |
| Cutting feeding speed | m/min | 6~10 | |
| Rapid moving speed | m/min | 15 | |
| Positioning precision | mm | ±0.01 | |
| Repeatable positioning precision | mm | ±0.008 | |
| Spindle | Max. distance from spindle nose to worktable surface | mm | 380 |
| Distance from spindle center to column surface | mm | 250 | |
| Spindle type | / | BT40 | |
| Spindle motor | kw | 2.2(inverter) | |
| Spindle speed | rpm | 6000 | |
| Tool magazine | Tool magazine type | / | N/A |
| Others | Overall size(Half closed cover) | mm | 1510×1200×2010 |
| Overall size(Full closed cover) | 1760×1840×2010 | ||
| N.W.(Half/Full closed cover) | kg | 1300/1500 |
Main parts list:
| Item | Brand |
| Ball screw bearing | CHINA top-HRB P4 class/Z axes NSK |
| Ball screw | CHINA top |
| Dishing spring | GERMANY |
| Spindle unit | TAIWAN |
| Inveter | TAIWAN TECO/JAPAN YASKAWA |
| Booster cylinder | TAIWAN |
| Pneumatic parts | TAIWAN-AIRTAC |
| Electricity parts | FRANCE-SCHNEIDER |
| Lubrication pump | Joint-venture |
Standard configuration:
-SIEMENS 808D ADVANCED CNC controller

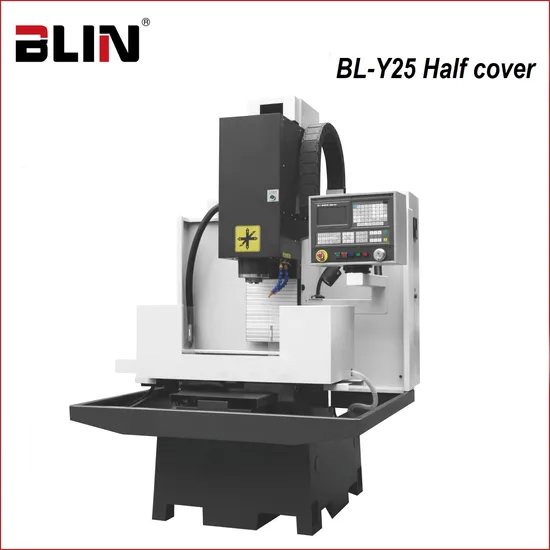

-Half closed cover
Optional configuration:
-GSK980MDc CNC Controller
-Step feeding motor
-Full closed cover
-4th axes
