High Speed Turbo Plastic Raw Material Mixing Machine Hot and Cold WPC PVC Powder Resin Mixer for PVC Pipe Window Door Profiles Ceiling Panel Trunking Production

Product Description

Product DescriptionMachine IntroductionPlastic PVC mixer machine is used for mixing PVC powder, CACO3 and other addictives before product extrusion. This equipment is widely used in PVC pipe and profile/board/sheet production, pvc compounding pelletizing, wpc material mixing.

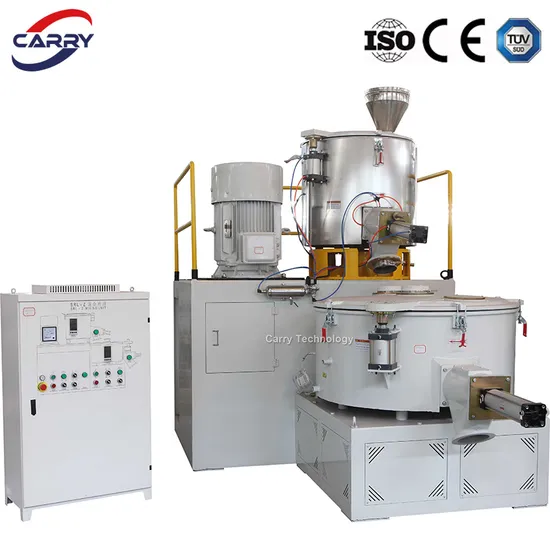

The PVC mixer machine is composed of high speed mixer (hot mixer), cold mixer and control cabinet.
We use 8mm stainless steel SUS304 for the internal wall construction. It will guarantee the mixer could use for long time under the high friction.
The mixing blades are passed the static and dynamic balance testing. And the main shaft adopts fine sealing to prevent material from leakage.Product Specification

Model	Total volume(L)	Effective capacity(L)	Speed(r/min)	Mixing time(min)	Motor(kw)	Capacity(Kg/h)
SRL-Z 100/200	100/200	70/130	650/1300/200	8-12	12/22/7.5	175
SRL-Z 200/500	200/500	140/320	475/950/130	8-12	30/45/7.5	350
SRL-Z 300/600	300/600	225/380	475/950/100	8-12	40/55/11	500
SRL-Z 500/1250	500/1250	330/750	430/860/70	8-12	55/75/15	850
SRL-Z 800/1600	800/1600	600/1050	370/740/50	8-12	83/110/22	1320
Horizontal type mixer unit
SRL-W 300/1000	300/1000	225/700	475/950/80	8-12	40/55/7.5	500
SRL-W 500/1500	500/1500	330/1000	430/860/70	8-12	55/75/15	850
SRL-W 1000/3000	1000/3000	700/2100	300/600/50	8-12	110/160/30	1650

Plastic PVC resin powder mixer machine
Features:
1. By dynamic balancing, the disc rotation is very stable.
2. Due to the intake characteristics of the chipping disc, the pipes are automatically drawn into the chipper without any additional draw-in rollers.
3. Main shaft connected by bolts, easy to replace.
4. The multi-model, multi-material rotor, abrasion treatment.
5. D2, SKD-11 or other high-strength wear-resistant material rotating and fixed knife design, unique blade structure, to ensure longer life.
6.Driving way: By double speed motor or Inverter control
Detailed Photos
Our machine main motor is Siemens brand, inverter ABB, temperature controller Omron, all international famous brand components:
Related MachinesYou may also like, click for more details
Company Profile Certifications
Customer CasesWelcome to visit my factory to check machine
1.5 hours driving time from Shanghai to my city
Packaging & Shipping
FAQQ: What about the payment terms?
----Always 30% down payment as deposit,70% balance payment after inspection before shipping.
Q: What is your guarantee time?
----Our guarantee time is 12 months.
Q: If you will send engineer coming to our factory to install and test the machines?
----Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q: If you have CE,SGS,ISO certificate?
----Yes,except these,if you also need other certificates,we also can help to apply.
Q: If we buy your machines, can you offer us wear-out spare pats?
----Yes,We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q: What is the machine voltage?
----380V 50hz 3 phase or any other voltage according to client's requirement.
