Lte Wi-Fi M2m Modem with Console Port
| US$70.00-90.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HDRM100
Signal Type
Baseband Modem
Installation
Rack-Mounted
Clip Function
Mtk 7628
Interface Type
RJ-45
Application
Industrial, Enterprise, Household
Transport Protocols
FTP
Transmission Mode
Data Transfer
Power Supply
+5V~+48V/1A
Interface Port
1 Wan/1 LAN or 2 LAN Ports, One Console Port;
WiFi
WiFi High Quality Performance Without Congestion
Lte EU Frequency Bands
Lte FDD. B2,4,5,17
Memory
Flash 16mbyte, DDR2 64mbyte
Network Mode
Lte ,WCDMA,EVDO,GPRS,GSM,CDMA 1X
Embeddedsystem
Linux or Openwrt
Working Temperature
-40~+75
Antenna
2*2 4G/WiFi MIMO Antenna
CPU
Mtk 7628
Transport Package
Carton Packing
Specification
115mm*73mm*20mm
Trademark
Head Weblink
Origin
China
Production Capacity
100000set/ Month
Product Description

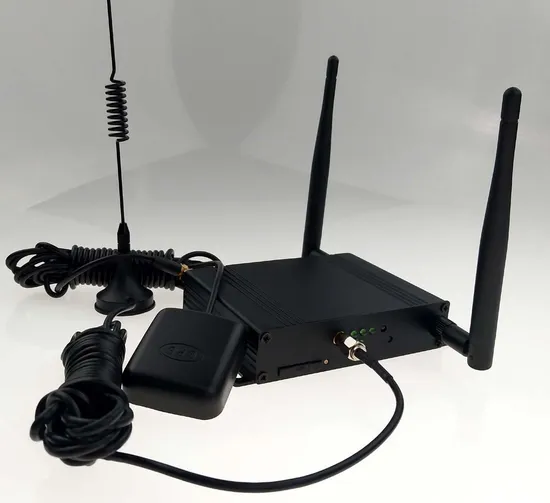

LTE Wi-Fi M2M modem with console port• 3G/4G LTE data transmission;
• Active auto connect;
• Embedded watchdog , Auto recovery;
• 2*2 4G/WIFI MIMO antenna;
• Integrate 3G/4G LTE,WIFI,GPS feature;
• WIFI High quality performance without congestion;
• 1 WAN/1 LAN or 2 LAN ports, One console port;
• With SIM card slot;
• Wide power supply: +5V~+48V/1A
• Remote management platform;
• Firmware version: Linux or Openwrt;
• Small size dimension:115mm*73mm*20mm ,
| Item | Product specification |
| CPU | MTK7628 |
| MEMORY | FLASH 16MByte, DDR2 64MByte |
| Embeddedsystem | Linux or Openwrt |
| Network | FDD LTE,TDD LTE,WCDMA,EVDO,GPRS,GSM,CDMA 1X |
| WIFI | WIFI 802.11 b/g/n, 300Mbps |
| Data rate | 4g: CAT 3, DL 100bps , UL 50Mbps ( Or CAT 4 DL 150Mbps , UL 50Mbps) WCDMA HSPA+: DL 42Mbps, UL 5.76Mbps GPRS DL/UL 85.6Kbps |
| WIFI Tx Power | 14 dBm(11g),17 dBm(11b),14dBm(11n) |
| WIFI Rx Sensitivity | <-70 dBm@54Mpbs |
| 2G/3G/4G Transmitting Power | GSM/GPRS: Class 4 (2W); GSM850,EGSM900 Class 1 (1W): DCS1800,PCS1900 EDGE: Class E2 (0.5W): GSM850,EGSM900 Class E1 (0.4W): DCS1800,PCS1900 UMTS: Class 3 (0.25W): WCDMA Class 3 (0.25W): CDMA2000 Class 2 (0.25W): TD-SCDMA LTE:Class 3 (0.25W) |
| GPS | GPS/GLONASS,Protocol: NMEA |
| WIFI Frequency | 2.4G |
| Hardware interface | 2*LAN 10/100Mbps, Console port(Be used as DTU, is available to connect serial devices) |
| RF connectors | SMA connector , 4G(female),WIFI(male),the characteristic impedance 50Ω |
| Security Encryption | Support WEP,WPA,WPA2 encryption ways |
| Protocol | PPTP,L2TP,IPSEC VPN,TCP,UDP, DHCP,HTTP,DDNS,TR-069,GRE, HTTPS, SSH,Open VPN,SNMP |
| LED Indicator | "SYS", "Net", "WAN", "LAN",RSSI |
| SIM/UIM | Standard draw card interface, support 1.8V/3V SIM/UIM card, built-in ESD protection |
| Key button | Reset |
| Standard Power | DC 12V/1A |
| Power Supply | DC 5~48V |
| Working current | 2A (Max Current) |
| Temperature | Operating Temperature -40~+75ºC Storage Temperature -45~+85ºC |
| Environment humidty | 95% |
| Case | Aluminum Alloy Shell |
| Size | 115mm*73mm*20mm |
| Weight | 160g |
| Frequency bands | ||
| 2G Version | GSM/GPRS 850/900/1800/1900MHz | |
| 3G Version | WCDMA. 850/1900MHz, 850/2100MHz & 900/2100MHz | EVDO 800MHz & 800/1900MHz |
| GSM. 850/900/1800/1900MHz | ||
| 4G Version | Version A | LTE FDD. B2,4,5,17 |
| UMTS. 850/1900MHz | ||
| LTE FDD. B1,3,7,8 | ||
| Version C | LTE TDD B38, B39, B40, B41 | |
| UMTS. 900/2100MHz | ||
| TD-SCDMA. 1880~1920MHz & 2010~2025MHz | ||
| GSM. 900/1800MHz | ||
| Version E | LTE FDD. B1,3,7,8,20 | |
| LTE TDD B38, B40 | ||
| UMTS. 900/2100MHz | ||
| GSM. 900/1800MHz | ||
| LTE FDD. B1,B3,B8,B18,B19 | ||
| Version JC | LTE TDD. B41 | |
| UMTS. B1,B6,B8 | ||
| GSM. 900/1800MHz | ||
| Version JE | LTE FDD. B1,B8 | |
| UMTS. B1,B8 | ||
| GSM. 900/1800MHz | ||
| Seven-Band LTE-FDD B1/B3/B4/B5/B7/B8/B28 | ||
| Version SA | Tri-Band LTE-TDD B38/B40/B41 | |
| Qual-Band UMTS/HSDPA/HSPA+ B1/B2/B5/B8 | ||
| Qual-Band GSM/GPRS/EDGE B2/B3/B5/B8 | ||
| Data rates | ||
| 3G LTE router | WCDMA. DL 14.4Mbps, UL 5.76Mbps | EVDO. DL 3.1Mbps, UL 1.8Mbps |
| 4G LTE router | FDD LTE. DL,100Mbps UL,50Mbps | Or |
| TDD LTE. DL,50Mbps UL,25Mbps | LTE Category 4 - 150 Mbps (DL) | |
| WCDMA. DL 42Mbps UL5.76Mbps | LTE Category 4 - 50 Mbps (UL) | |
| TD-SCDMA. DL 2.8Mbps UL 2.2Mbps | ||
