Vertical Milling Machine 3 Axis Milling Machine with Step Speed Milling Head

Product Description

√ Suitbale for household and daily necessities mold processing.
√ Excellent accessories, strict quality control, long durability.
√ Hard-grinding guide way, thick machine body, effctive casting, the whole machine is durable.
√ Milling head key parts from Taiwan, bearings from Chinese famous brand.
√ High efficiency, strong cutting machine performance.
WOKRTABLE Ultra-audio quenching, precision grinding and scraping guide. Rotary table is optional.
TURRET MILLING HEAD Turret milling head can swivel 45° (forward-backward), rotate 90° (left-right). Easy to mill at special angle.
SPINDLE High precision R8/NT30/NT40 spindle, spindle runout:0.003mm

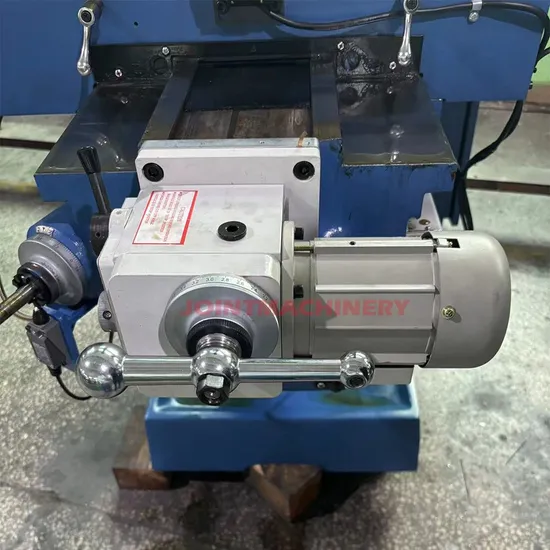

X/Y/Z AUTO FEED X/Y axis auto feed, Z axis electric lifting, improve machining efficiency.
DRO Based on customer needs, optional 2-axis DRO or 3-axis DRO.

Vertical Milling Machine Turret Milling Machine 3M

Model				3M
Table size			mm	1270*254*90
Travel		X axis	mm	900
		Y axis	mm	400
		Z axis	mm	380
Travel of spindle quill			mm	127
Maximum distance from spindle nose to table			mm	410
Spindle	Rotation speed (Step speed milling head)	50HZ	rpm	66-4540
		60HZ	rpm	80-5440
	Rotation speed (Variable speed milling head)	50HZ	rpm	40-3125
		60HZ	rpm	50-3750
	Rotation speed (Inverter speed milling head)	50HZ	rpm	0-4200
		60HZ	rpm	0-4200
	Taper			R8/NT30
	Rated power		HP	3HP
Tilt Angle			Forward and backward	±45°
			Left and Right	±90°
Dimension			mm	1500*1700*2150
Weight			kg	1100

Shenzhen Joint Machinery Co., Ltd. stands as a beacon of excellence in the manufacturing and exportation of CNC lathe machines, CNC deep hole drilling machines, Swiss-type automatic lathes, milling machines, grinding machines, and more. Our unwavering commitment to high-quality machines and exceptional customer service positions us as leaders on the global stage. We focus on rigorous control and enhancement of our machine quality, ensuring they meet and exceed the highest industry standards. Our machines integrate cutting-edge core technologies from Taiwan and Germany, coupled with advanced production equipment and processes, to deliver unmatched product quality and reliability. Known for their superior performance in precision, stability, and dependability, our machines adeptly handle complex and high-demand machining requirements. With a worldwide export footprint, our products have earned widespread recognition and popularity, serving markets across Asia, Europe, South America, North America, and beyond. We have cultivated long-term partnerships with clients from diverse regions, together generating significant business value.
