Hot Selling Professional Agricultural Machinery Tmr Mixing Machine Farm Animal Feed Mixer Machine

Product Description

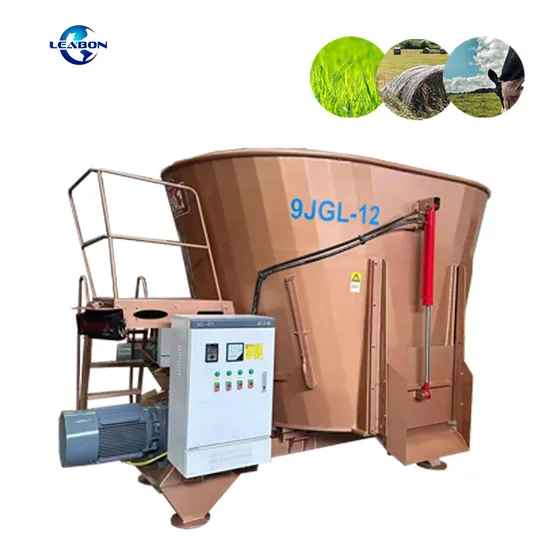

Hot Selling Professional Agricultural Machinery TMR Mixing Machine Farm Animal Feed Mixer Machine Product Description 1.Vertical Type TMR Silage Feed Mixer
1)The machine is mainly composed of one or two augers. The spiral auger is divided into left and right rotations. During mixing and stirring, the material is simultaneously stirred and stirred at the middle position of the mixer from each direction of both ends of the box. Each spiral lead on the spiral body is equipped with a moving blade, and the fixed teeth on the center line of the feed mixer are used for cutting work. The various fibrous forages and straws passed through are cut and agitated so as to achieve complete mixing of the crushed and mixed Dietary feeding effect.
2)The bottom of the trough of the machine is made of high-quality alloy steel, suitable for working in harsh environments, safe and reliable work, simple operation, convenient and flexible. The unique cutting blade made of high wear-resistant materials greatly improves the service life of the product.
Technical Of Vertical Type Mixer Parameter

Model	9TMRL-5	9TMRL-9	9TMRL-12	9TMRL-16
Motor Power(kw)	15	22	30	22+22
Capacity(T/H)	2-3t/h	4-5t/h	6-7t/h	8-10t/h
Dimension(mm)	3100*1900*2100mm	3900*2300*2500m	4600*2400*2600m	5800*2500*2600m
Weight(kg)	1900kg	2800kg	3600kg	5000kg

Detailed Pictures
2.Horizontal Type TMR Silage Feed Mixer
Feed mixer (TMR) is suitable for a variety of pastures, can mix a variety of hay, silage feed and other fiber feed and mixed feeding directly. The machine can reduce the labor intensity of artificial feeding, save feeding costs, improve economic efficiency. The TMR feed mixer can increase the dry matter intake, increase the milk production, improve milk quality, reduce the incidence of dairy cattle, increase feed utilization, save feed costs, and provide labor productivity.
Technical Of Horizontal Type Mixer Parameter

Model	9TMRW3	9TMRW-5	9TMRW-9	9TMRW-12
Motor Power(kw)	11	15	22	30
Capacity(kg/h)	1000-1500kgs/h	2000-3000kgs/h	4000-5000kgs/h	6000-7000kgs/h
Dimension(mm)	3600*1700*1900	3900*1800*2100	4600*2000*2500	5300*2200*2600
Weight(kg)	1700	2300	3200	4100

Detailed Pictures
3.Tricycle Spreader Mixer
1)The machine is transported by tricycle, with low energy consumption and high passability;
2)Reduce labor intensity and feed cost;
3)It can be sprinkled on both sides, making feeding faster and more efficient;
4)The material is thrown quickly;Gears adjust the spreading speed;
5)Low failure and easy maintenance;
6)Control all drives in the open-top cab;
7)Putting forage in batches, feeding in groups for cattle and sheep farms, suitable for pastures of various scales;
8)Strong maneuverability, strong passability, small turning radius, more flexible and convenient;
9)More suitable for stationary batching plants, with low fuel consumption, high efficiency and high speed.
Technical Of Mobile Type Mixer Parameter
Motor Type Technical Parameter:

Model	9SL-2	9SL-3
Battery	5PCS,60V	6PCS,72V
Structure Type	electric tricycle	electric tricycle
Feeding method	Spiral auger	Spiral auger
Sprinkling method	Belt	Belt
Size	3100*1200*1800mm	3600*1400*2000mm
Weight	1100kg	1500kg

Diesel Type Technical Parameter

Model	9SL-5	9SL-7
Tricycle Brand	Wuzheng	Wuzheng
Power	25HP	25HP
Structure Type	diesel tricycle	diesel tricycle
Feeding method	scraper	scraper
Sprinkling method	Belt	Belt
Size	4700*1800*2300mm	5000*1800*2500mm

Detailed Pictures
4.Belt Conveyor Tricycle Spreader Mixer
The main function of the spreader is to feed the finished dietary in the feeding area one-time or spreading wood shavings in farm. It is widely used in farming and breeding areas, large and medium-sized farms and standard feeding farms. First the farmers can choose forage grass, wood shavings , crop stalks, silage and other fiber to feed mixed evenly, then put into the spreader machine, finally they can do spreading operate. This machine has the feature of easy to use, easy to operate, reliable product quality, durable, scavenging process. And it can also be based on the user's lunar livestock density to adjustment feed. In addition, it has the advantages of high efficiency, saving time and effort, saving farm space.
Technical Of Belt Conveyor Tricycle Spreader Mixer Parameter

Model	LB-5M
Power	35hp
Structure style	Tricycle vehicle mounted vertical
Weighing system	4sensors,1display
QTY of twisted dragon(PCS)	1
Capacity(t/h)	2-3
QTY of blades(PCS)	5
Blade type	Large serrated knife
Thickness of bottom plate(mm)	14
Thickness of side plate(mm)	5
Weight(kg)	3300
Dimension of machine(m)	4.5*1.9*2.3

Raw Material The raw materials are all kinds of hay, silage and other fiber feed
Final Product
Application
Our Advantages
Complete TMR Feed Mixer Production Line
Our Workshop
Packaging & Shipping Normally, we adopt wooden case or container.If export to European countries,the wooden box will be fumigated.If container is too small,we will use PE film for packing or pack it according to customers special request.
Our transport operators & delivery facilities are ready on time and when the contains arrive at the factory , they are guaranteed to ship according to the scales .
Company Profile 1.We can provide you the one year warranty but without the spare parts.
2.The professional and timely 24 hours after-sale service.
3.The relative video of the machine installation and instruction will be provided for you.
4.We can provide you the different mould to meet your different requirements.
5.We can also meet the special voltage demand.
6.The engineer is available to service machinery oversea
Customer Feedback
FAQ

Q1:what are your raw material to mix? ------Grass, alfalfa, stalk, straw, grains powder

Q2:how many cubes do you need for this series mixer ? ------3CBM, 5CBM, 9CBM; 13CBM; 15CBM etc

Q3:What's the certification of your TMR feed mixer? ------CE Certification.

Q4:What's the warranty of TMR feed mixer? ------Warranty:1 Year(except spare parts).

Q5: What's your payment terms? ------Payment terms: T/T; L/C; Western Union; Money Gram.
