Basic Info.
Operation Mode
Wire / Remote Control
Speaker System
Optional Combination
Application
Commercial, Home, Outdoor, Stage Performance
Frequency Range
45Hz-18kHz
Frequency Response
50Hz-18kHz(±3dB)
Sensitivity
105dB Spl 1W/1m
Maximum Spl @ 1m
129dB Spl
Input Connectors
2*Neutrik® Nl4MP
Hf Configuration
75mm Neodymium Voice Coil
Lf Configuration
1*12" Neodymium Driver, 2" Voice Voil
Paint
Environmentally Friendly Paint
Transport Package
7mm Thickness Cartons or Flight Case
Specification
380mm*510mm*560mm
Production Capacity
1000PCS/Month
Packaging & Delivery
Package Size
64.70cm * 49.00cm * 56.50cm
Package Gross Weight
24.200kg
Product Description
Company Profile
Product Parameters

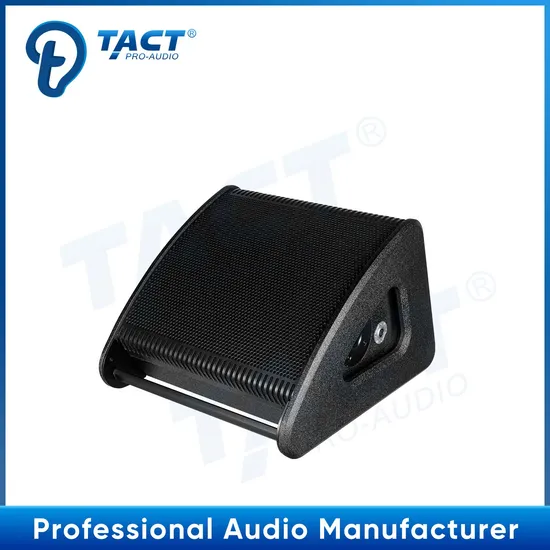

Product Name | TACT New Launch Single 12 Inch Neodymium Coaxial Monitor Stage Speaker |
Frequency Range | 45Hz-18KHz |
Sensitivity | 105dB SPL 1w/1m |
Nominal Impedance | 8 ohms |
Power Rating | 600w |
Driver Configuration | HF: 75mm Neodymium voice coil; LF: 1*12" ferrite driver, 75mm voice coil |
Sound Field Radiation Range | Horizontal: 90°*90° |
Maximun SPL @ 1M | 129dB SPL |
Dimension | 380mm*510mm*560mm |
Net Weight | 21.4kg |
Why choose us
We're a professional audio euquipment factory established in 2013. Our factory is located in Enping city, covering an area of 18000 quare meters. We provide one-stop audio equipment, like different kinds of speakers, including line array speaker system, subwoofer speaker, remote 3 way speaker, entertainment speaker, multi-functional speaker, column speaker, conference speaker, and we still have professional power amplifier, amplifier module, audio processor, etc for your selection.
We have enrich experiences R&D team, design dept., production dept., marketing dept. sales team to assist you for any kinds of projects, because we have dealed with many different kinds of project case for different customers from all around the world. If you have any question on professional audio. We're welcome for your message on it, our professional teams are always here ready for provide you an accordingly solution.
Certifications
Recommend products
https://tactproaudio.en.made-in-china.com/product/YGgpaRrAUmkP/China-Tact-La210-Professional-Dual-10-Inch-Line-Array-Full-Range-Speaker.html
Packaging & Shipping
FAQ
Q1. Can I have a sample order for loudspeaker, line array speaker, professional speaker?A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.Q2. What about the lead time?A:Sample needs 2-5 days, mass production time needs 3-4 weeks for order quantity more than Q3. Do you have any MOQ limit for loudspeaker order?A: 30PCS MOQ, 2pcs for sample checking is availableQ4. How do you ship the goods and how long does it take to arrive?A: We usually ship by Sea. It usually takes 30-45 days to arrive. Airline also optional.Q5. How to proceed an order for loudspeaker?A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.Q6. Is it OK to print my logo on loudspeaker product?A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.Q7: Do you offer guarantee for the products?A: Yes, we offer 1 years warranty to our products.Q8: How to deal with the faulty?A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
