Large Capacity 240m3/H Ready Mixed Concrete Batching Plant From China Good Price
Basic Info.
Model NO.
sx24
Machining Process
Vibrating Mixing
Structure
Spiral Type
Productivity
240m3/H
Feeding Height
1370mm
Vibrating Amplitude
1.2mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Air Compressor
3kw
Electromagnetism Valve
1
Drawbar Pin
1
Batching Control Meter
Made in China
Circuit Breaker
Delixi
Connecting Cable and Accessories
Made in China
Cement Silo
100t/150t/200t/300t
Cement Screw
φ219*8
Hoisting Mixer System
Discharge Height 4.2m
Aggregate Hoisting and Measuring System
Made in China
Aggregate Feeding Type
Belt Conveying Type
Concrete Mixer Power
90 - 215.5kw
Name
Ready Mix Concrete Plant
Control System
Siemens PLC+PC
After-Sales Service Provided
Field Installation, Commissioning and Training
Transport Package
Naked in Container
Specification
CE
Trademark
Super-above
Origin
Jiangsu, China
HS Code
8474310000
Production Capacity
5000PC/Year
Product Description
Product Detail HZS240 Ready Mix Precast Concrete Equipment 240m3/hHZS Series Concrete Mixing Plant: Stable JS series mixer
Aggregate hopper:Seperate weinghing system,quite precise
Aggregate conveyor:Flat belt conveyor
Control system: Double controling computer, branded hardware,stable and easy to operate .
HZS240,apply JS 3000 mixer,it can well fulfill the need of road ,bridge ,dam and marine construction.With the combination of our rich experience and European teconology.Xin Da machinery has gotten a good reputation at home and abroard.The controlling system applies Siemens(PLC) and other branded hardware ,which help the operation be quite efficient and stable.
Product Description

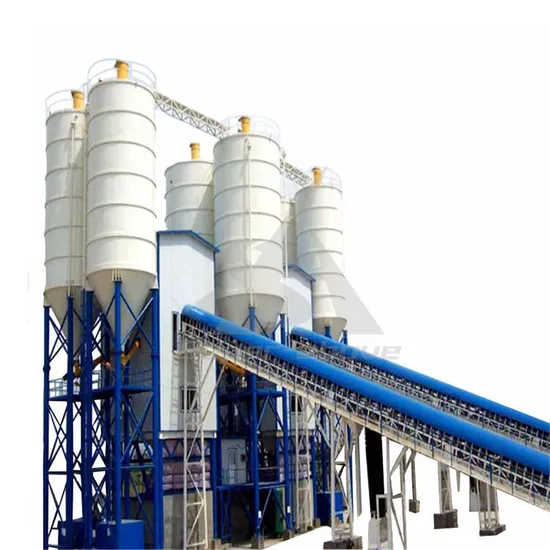

240 m3/h CONCRETE PLANT
HZS240 Ready Mix Precast Concrete Equipment 240m3/h Main Parameter
| Model | HZS240/240 | |
| Production in theory(m3/h) | 240 | |
| Mixing engine | JS4000 | |
| Measuring scope and precision | Stone(kg) | 5000±2% |
| Cobble(kg) | 5000±2% | |
| Cement(kg) | 2400±1% | |
| Mingled materials(kg) | 1200±1% | |
| Water(kg) | 1000±1% | |
| Additives(kg) | 100±1% | |
| Distributing plant/container | Container quantity,container capacity,and installed form of distributing plant and mixing towers varying with customers demands. | |
| Powder tank system | Powder tank volume and quantity,and configuration of powder tank accessories varying with customers demands. | |
| General power(kw) | 220 | |
| Discharging height(m) | 3.8 | |
