Wooden Material Door CNC Engraving Machine for Alumnium

Product Description

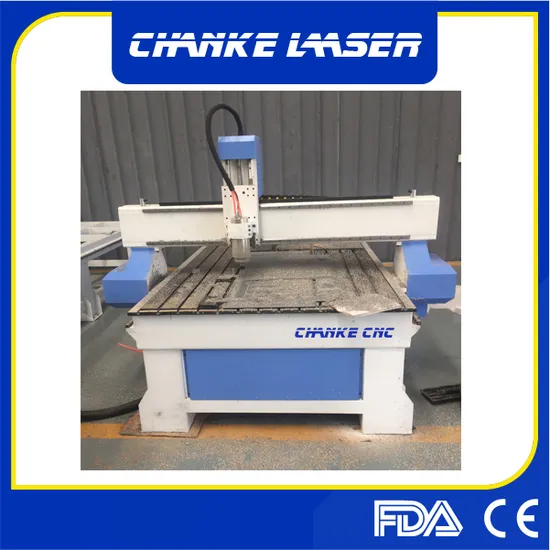

This machine working table is: T-Slot ( materails holders), working size is: 1300x2500x200mm with 3kw/1.5kw/2.2kw/5.5/4.5/7.5 w water cooling spindle power, it can engrave and cut the wood MDF acrylic ABS copper alumnium brass and other metal and nonmetal materails to do the 3D work.
It can cut and engave on the wood/MDF.....if with 1.5kw/2.2kw water cooling spindle, it is mainly used it to do the engraving work, but it aslo can do the cut work, for example, if cut more thick wood/ MDF (more than 30mm) it need to cut many times, then can cut down, but the edge is smooth. if with 3kw water cooling spindle it can cut 20mm thickness wood /MDF for one time, if the power is more bigger, more thick of the wood and MDF the machine can cut.
Our factory has the air cooling spindle power, if some customer don't like use the water cooling power spindle, then can choose the air cooling spindle. the working pinciple is the same of this two type wood engraving machine.
we can produce the wood cutting and engraving cnc router with many heads, like one spindle 2 heads/3/4/5/6 heads , this is as your choice. or can produce the machine with 2 or 3 /4 spindles. when you send us an letter, please tell our sales worker your exactly request, if you don't know wood cnc router exactly, please tell us you to do which work and other requirments, then our worker will help you choose one type of machine which is will fit for you.
1. Descriptions of wood CNC Router

Description	Parameter
X,Y,Z Working Area	1300mmx2500mmx200mm
Table Size	1450mm×2940mm
Table Surface	T-slot Table Option: Vacuum Table
Frame	Welded Steel tube Structure
Spindle Power	3.0KW/4.5kw water cooling spindle
Spindle Speed	0-24000RPM
Motors	450B stepper motors ( 4 sets in total )
Driver	Leadshine or YAKO2811 driver
Transmission	X,Y Axis: Helical Rack and Pinion Drive Z Axis: Taiwan TBI ball Screw
Machine Guide Rails	Taiwan Hiwin Linear square guide rail
Inverter	Fuling or Delta Inverter
Operating System	NC Studio control system
Soft Limit switch	Japan Omron limit
AC contactor	France Schneider
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
X,Y,Z Repositioning Accuracy	±0.03mm
Max. Rapid Travel Rate	33000mm/min
Max. Working Speed	25000mm/min
Max. Power Consumption	3KW(Without Spindle)
Working Voltage	AC380V/50Hz, 3Phs (Option: 220V)
Command Language	G Code
Computer Interface	USB
Flash Memory	128M(U Disk)
Collet	ER25
Software Compatibility	Artcam OR Type3 Software
Running Environment Temperature	0 - 45 Centigrade
Relative Humidity	30% - 75%
Packing Size	3300mm*2100mm*2300mm
N.W.	1450KG
G.W.	1680KG
Optional Parts	Spindle: Air cooling spindle or ATC spindle can be choose
	Motor and Driver: Servo system Japan: Yaskawa / Panasonic servo China: Taiwan Delta servo
	Control system: DSP/Syntec/mach3
	Dust Collector
	Vacuum Pump
	Rotary System
	Mist-cooling System

2. Advantage of Machine
1) T-slot Table: Small-scale processing by using material holder, eliminating the need for a vacuum pump electricity.
2) Water cooling spindle, with high precision, long life time, steady working, easy to start up.
3) Taiwan Hiwin linear square guide rail, self-lubricating sliding block. It ensures equal
force in all directions and accuracy and strength of the machine.
4) Y axis uses double-motor in-phase drive that ensure the machine equality and smoothly running.
5) Splendid independent controlling cabinet, easy to make maintenance, use friendly interface.

3. Applicable materials of cnc router wood price
1) Furniture: plate, office furniture, doors, cabinets.
2) Wood products: speakers, games cabinets, computer tables, sewing machines,
musical instruments.
3) Board processing: insulation, plastic chemical components, PCB, car body,
bowling track, ABS, PP, PE, etc.

4) Decoration: Acrylic, PVC, MDF, glass, plastic and soft metals such as copper
and aluminum.

4. How to Order Our Machine?

Before we can recommend you the best suitable machine, please kindly tell us:
1) What materials will you work on?
2) What is your Max.size of your processing materials? ( Length & Width )
3) Do you mainly engrave or cut? If cut,What is your Max.cutting thickness?
4) Does your materials are cylinder? If YES, what's the Max. Diameter of it?
5) If it is possible, could you send us your product samples' picture? It will
help us better to understand.
5. Trade Items of Machine

MOQ	1 set
Package	Standard Plywood Box
Delivery Terms	FOB, CIF, EXW, Door to Door ect.
Delivery Time	15 working days after receiving payment
Payment Type	T/T, Paypal, Western Union and others
Supply Ability	200 sets/month
Port	Qingdao, China.

6. Packing of Machine
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.


7. Guarantee & service of Machine
Guarantee:
Two years quality guaranty, the machine with main parts(excluding the
consumables) shall be changed free of charge when if any problem during the warranty period.
Service: ( Provide whole life technical support, 24h online )
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs, after everything is ready, we would tell you everything goes well here;
After sale:
1) We would provide English Version working manual.
2) If you have any questions during using and maintaining, our engineers who could speak very good English would answer you online or by calls.
3) Machine warranty is one year. So if your machine has any unintentionall damages, we would provide parts for free.
4) If your machine has big problems if by any chance, our engineers would arrive there to debug and fix.
5) Could be remote control if needed.
