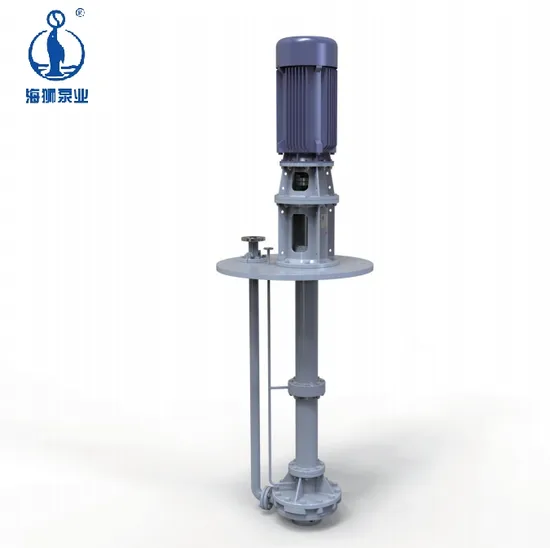

Hwuc Vertical Bag Pump (VS6)

Product Description

demonstration of the type	range of application	performance parameter
200HWUC-82X10 200: nominal diameter of the outlet HWU C: Series code 82: Single stage head (m) 10: Series of impeller	Conveying a variety of clean or microparticle containing media, Especially suitable for conveying easy vaporizing medium, low temperature medium, Such as ethylene, liquid ammonia, liquefied gas, condensate, hydrohydrocarbons, oil products, etc. It can also transport liquid oxygen, liquid nitrogen, liquid argon and other cryogenic liquids in the air separation unit.	Flow rate: ~800m³/h Lift: ~1200m Speed. 1450~2950r/min Design pressure: ~ 15MPa Operating temperature: -180ºC~180ºC

HWUC pump is a vertical multistage, radial split, radial guide vane or space guide vane structure of the double housing pump. Designed and manufactured in accordance with API610 "Centrifugal pumps for petroleum, heavy chemical and natural gas industries" standard requirements.
The impeller of this type of pump is below the pump inlet and the base, which effectively improves the cavitation performance of the pump group and meets the requirements of the use of low device cavitation conditions. Generally, the structure is horizontal in and out, and the installation is simple and convenient. The vertical structure motor falls above the pump body, and the unit occupies a small area, effectively improving the space utilization rate.
This series of pumps has high performance and has a variety of structural deformations to cope with different conditions of use.
In terms of hydraulic power, the first stage impeller and the secondary impeller are designed separately. The first stage impeller needs to have high cavitation performance, and the secondary impeller needs to have high efficiency. Radial or space guide vane extrusion chamber can be used, and there is no hydraulic radial force.
Company profile We offer integrated solutions from embryo casting to complete machine with short lead time and controlled quality.
Main product
workshop

exhibition

Certification certificate
Cooperative brand
APPLICATION AREA
Coal chemical Industry,petroleum and petrochemical Industry,natural gas chemical Industry,fine chemical Industry,etc
Chemical fiber, desulfurization and denitration, etc
Thermal powerthermal power generation,biomass power generation,etc
Mining development,nonferrous metal smelting,Iron and steel metallurgyetc
Environmental protection,wastewater treatment,evaporation and concentration,MVR,etc
Ocean engineering,etc.
New energy, lithlum battery Industry, etc
